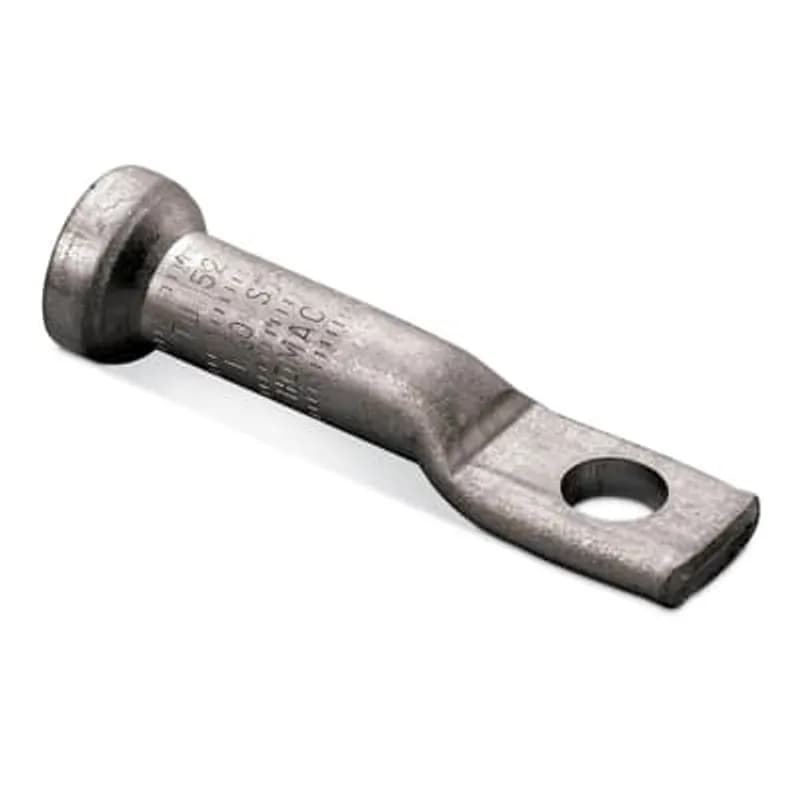

ABB Installation Products RSG 10-48 Aluminum One-Hole Lugs with Inner Shroud, Wire Size 10 Stranded, 8 Solid. Installing die…
UPC: 783786746477
Documents & Media
Contact for Pricing
Minimum Qty: 200
Multiplier: 200
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Accommodates 10 AWG stranded and 8 AWG solid wire
- Inner shroud for insulation and strain relief
- 17/32 inch diameter mounting hole
- Barrel length: 1-7/8 inches
- Oxide inhibitor for corrosion resistance
Specifications
Application | Rain Protection |
Color | Pink |
Connection | Compression |
Housing Material | Aluminum |
Housing Material | Aluminium |
Material | Aluminum |
Size | Length 3-5/8 inches long |
Size | Wire Size 10 Stranded, 8 Solid |
Special Features | Rainshield protection for insulated cables prevent rainwater from entering cable. Entire conductor range installed with three common dies. Lessens your die inventory. Made from Aluminum for High Strength and High Conductivity. Dual-Rated fro use with Aluminum and Copper Conductors. Connector Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with Conductor Sizes and Die References |
Standard | ANSI C119.4 |
Type | Compression Lug One Hole Shrouded |
Wire Size | 1/0 STR AWG , 2/0 COMPT AWG |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0800 L |
Package Weight (Metric) | 0.0360 kg |
AL 4/0-48
Aluminum Compression Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad, 400 Stranded kcmil AL-CU. Dies TX, 71H, 298, 840, 11A. Length 3-9/16 inch. Pad 1-3/16 inch wide x 1-11/32 inch long x 5/16 inch thick. (1) 17/32 inch Diameter Hole, Barrel 1-7/16 inch long x 7/8 inch Outside Diameter. Oxide Inhibitor. Pink Cap.
IPLMD350-6
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
SAK 2 N
Aluminum Two-Hole NEMA Lugs. Wire Range #1 - #2 Stranded, #2 ACSR AL-CU. Installing dies TX, 76, 249, 840, 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 1-15/16 inch. Oxide Inhibitor. Red Cap.SAK 1/0 N
Aluminum Two-Hole NEMA Lugs. Wire Range 1/0 Stranded - ACSR, 2/0 Compressed - Compact. Installing dies TX, 76, 249, 840, 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 23/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-31/32 inch long. Oxide Inhibitor. Yellow Cap Dual Rated for Aluminum and Copper Conductors
SAL 1000-4 N
Aluminum Four-Hole NEMA Lugs - common die series, Compact 1000 kcmil AL, ACSR 795 (30/19) and 874 (54/7), installing dies 140H, 301, 342, 1 1/2. Length 8-3/4 inch. Pad 3 inch wide x 3-1/2 inch long x 1/2 inch thick, (4) 9/16 diameter holes on 1-3/4 inch centers. Barrel 4-7/16 inch. Oxide Inhibitor, Brown Cap.
SA 400 N
Aluminum Two-Hole Lug. Wire Range 400 Compressed, 336.4 - 400 Stranded, 500 Compact AL-CU, 366.4 (18/1) - 397.5 (18/1) ACSR. Installing dies 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, CSA28. Length 6-3/8 inch. Pad 1-1/4 inch wide x 3 inch long x 25/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-7/16 inch. Oxide Inhibitor. Green Cap.
SA 4 N
Aluminum Two-Hole NEMA Lugs - Wire Range #2 Solid, #4 Stranded - Compressed - ACSR. Installing dies TU, 52, BG, 243, 5/8, CSA 22, 640. Length 5-3/16 inch. Pad 1 inch wide x 3-1/8 inch long x 5/16 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 1-29/64 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors
SL 600 N
Tin Plated Copper Two-Hole Stacking NEMA Lugs - stacking lug, wire size 600 kcmil Stranded CU, uses bolt size 1/2 inch. Installing Dies 1 1/8-1, 22, 96. Length 6-7/8 inch. Pad 1-23/32 inch wide x 2-13/16 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-5/8 inch. UL listed.Frequently Asked Questions
What wire sizes are compatible with the RSG 10-48?
The RSG 10-48 supports 10 AWG stranded and 8 AWG solid wire.
What is the total length of the RSG 10-48?
The total length of the lug is 3-3/8 inches.
Does the RSG 10-48 include an oxide inhibitor?
Yes, the lug features an oxide inhibitor to prevent corrosion.
What is the hole diameter for mounting the RSG 10-48?
The mounting hole diameter is 17/32 inch.
What is the barrel length of the RSG 10-48?
The barrel length is 1-7/8 inches.
What is the color of the RSG 10-48 cap?
The lug features a pink cap for identification.
What is the pad size of the RSG 10-48?
The pad measures 57/64 inch wide x 1-9/32 inch long x 13/64 inch thick.
What type of die is required for installing the RSG 10-48?
The TU installing die is required for proper installation.
How to Install the ABB RSG 10-48 Aluminum One-Hole Lug
Step-by-step guide for installing ABB RSG 10-48 lugs on wire.
Estimated time: 15m
Tools needed:
Crimping tool, Wire stripper, Screwdriver
Supplies needed:
10 AWG stranded or 8 AWG solid wire, TU installing die
- Prepare the wire
Strip the insulation from the wire to expose the conductor. Ensure the stripped length matches the lug's barrel length.
- Insert the wire into the lug
Insert the stripped wire into the barrel of the RSG 10-48 lug. Ensure the wire is fully seated.
- Crimp the lug
Use the TU installing die with a crimping tool to compress the barrel around the wire. Verify the crimp is secure.
- Mount the lug
Secure the lug to the mounting surface using a 17/32 inch diameter screw or bolt.
