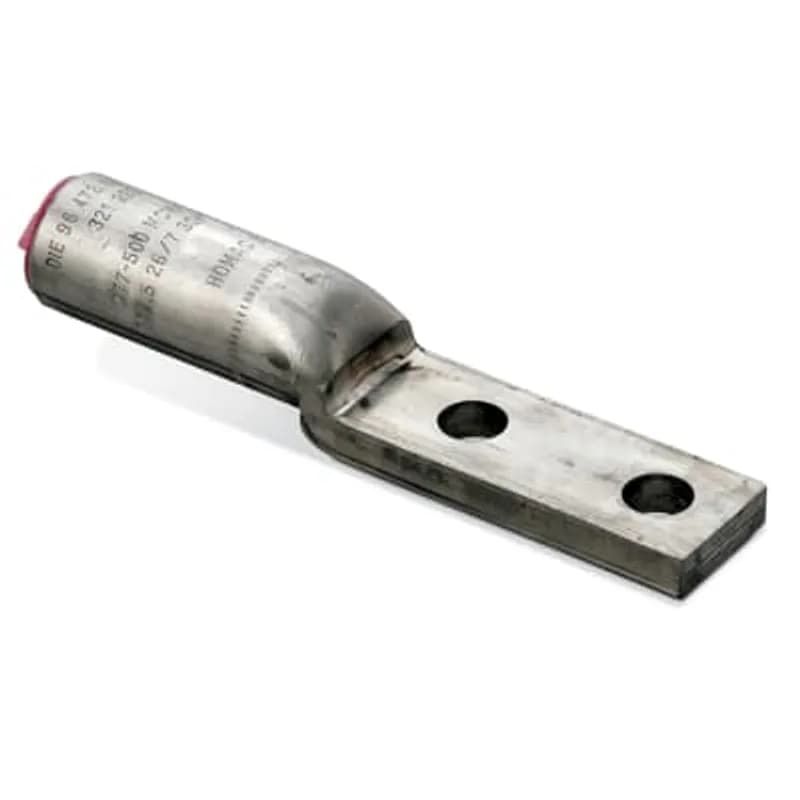

ABB - Installation Products SA 400 N - Aluminum Two-Hole Lug. Wire Range 400 Compressed, 336.4 - 400 Stranded, 500 Compact AL-CU, 366.4 (18/1) - 397.5 (18/1) ACSR. Installing dies 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, CSA28. Length 6-3/8 inch. Pad 1-1/4 inch wide x 3 inch long x 25/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-7/16 inch. Oxide Inhibitor. Green Cap.

ABB Installation Products SA 400 N Aluminum Two-Hole Lug. Wire Range 400 Compressed, 336.4 - 400 Stranded, 500 Compact…

UPC: 783786750191


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SA 400 N is a high-quality aluminum two-hole lug designed for robust electrical connections. Engineered by ABB Installation Products, this lug (SKU: SA 400 N) offers exceptional versatility for a wide range of conductor sizes. It is suitable for 400 Compressed, 336.4 - 400 Stranded, 500 Compact AL-CU, and ACSR conductors including 366.4 (18/1) and 397.5 (18/1) variants. The SA 400 N features a generous barrel length of 2-7/16 inches, ensuring secure conductor termination. Its pad measures 1-1/4 inch wide by 3 inches long, with a thickness of 25/64 inch, providing ample surface area for secure mounting. The lug is equipped with two 9/16 inch diameter holes spaced 1-3/4 inches apart on center, facilitating straightforward installation with standard hardware. For optimal performance and longevity, an oxide inhibitor is pre-applied, and the lug comes with a distinctive green cap, signifying its specific application or type. Installation is streamlined with compatibility for a variety of dies, including 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, and CSA28. The overall length of the SA 400 N lug is 6-3/8 inches. This component is ideal for industrial power distribution and connection applications where reliable and durable aluminum conductor termination is paramount. Its construction from aluminum ensures excellent conductivity and corrosion resistance, making it a dependable choice for demanding electrical infrastructure projects. The two-hole design provides enhanced mechanical strength and current-carrying capacity compared to single-hole terminals.
  • Aluminum two-hole lug for industrial electrical connections
  • Accommodates wire ranges: 400 Compressed, 336.4-400 Stranded, 500 Compact AL-CU, 366.4-397.5 ACSR
  • Features a 2-7/16 inch barrel and a 1-1/4" x 3" pad with two 9/16" holes on 1-3/4" centers
  • Includes pre-applied oxide inhibitor and a green cap for identification
  • Compatible with installation dies: 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, CSA28

Specifications

Application
Designed for general applications and for installation on Homac 125 series insulated buses
Connection
Compression
Housing Material
Aluminum
Housing Material
Aluminium
Size
6-3/8 x 1-1/4 inch wide
Special Features
Entire conductor range installed by four dies. Lessens your die inventory. Dual-Rated for use with Aluminumand Copper Conductors. Made of Aluminum for high strength and high conductivity. Prefilled with Oxide Inhibitor to Prevent Oxidation and keep out Moisture. Marked with Conductor Sizes and Die References for Easy Identification
Standard
ANSI C119.4
Type
Compression Lug Two Hole
Wire Size
336.4 to 400 kcmil , 500 kcmil , 336.4(18/1) ACSR AWG , 397.5(18/1) ACSR AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3800 L
Package Weight (Metric)
0.1720 kg
Tin-Plated Aluminum Two-Hole Lug. Wire Range 400 Compressed, 336.4 - 400 Stranded, 500 Compact AL-CU, 366.4 (18/1) - 397.5 (18/1) ACSR. Installing dies 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, CSA28. Length 6-3/8 inch. Pad 1-1/4 inch wide x 3 inch long x 25/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-7/16 inch. Oxide Inhibitor. Green Cap.

SA 400 NTN

Tin-Plated Aluminum Two-Hole Lug. Wire Range 400 Compressed, 336.4 - 400 Stranded, 500 Compact AL-CU, 366.4 (18/1) - 397.5 (18/1) ACSR. Installing dies 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, CSA28. Length 6-3/8 inch. Pad 1-1/4 inch wide x 3 inch long x 25/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-7/16 inch. Oxide Inhibitor. Green Cap.
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Aluminum Two-Hole NEMA Lugs - Wire Range #2 Solid, #4 Stranded - Compressed - ACSR. Installing dies TU, 52, BG, 243, 5/8, CSA 22, 640. Length 5-3/16 inch. Pad 1 inch wide x 3-1/8 inch long x 5/16 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 1-29/64 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors

SA 4 N

Aluminum Two-Hole NEMA Lugs - Wire Range #2 Solid, #4 Stranded - Compressed - ACSR. Installing dies TU, 52, BG, 243, 5/8, CSA 22, 640. Length 5-3/16 inch. Pad 1 inch wide x 3-1/8 inch long x 5/16 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 1-29/64 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors
Tin Plated Copper Two-Hole Stacking NEMA Lugs - stacking lug, wire size 600 kcmil Stranded CU, uses bolt size 1/2 inch. Installing Dies 1 1/8-1, 22, 96. Length 6-7/8 inch. Pad 1-23/32 inch wide x 2-13/16 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-5/8 inch. UL listed.

SL 600 N

Tin Plated Copper Two-Hole Stacking NEMA Lugs - stacking lug, wire size 600 kcmil Stranded CU, uses bolt size 1/2 inch. Installing Dies 1 1/8-1, 22, 96. Length 6-7/8 inch. Pad 1-23/32 inch wide x 2-13/16 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-5/8 inch. UL listed.
Tin Plated Copper Two-Hole Stacking NEMA Lugs - stacking lug, wire size 750 kcmil Stranded Copper, uses bolt size 1/2 inch. Installing Dies 1 5/16, 24, 106. Length 6-61/64 inch. Pad 1-29/32 inch wide x 2-7/8 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-13/16 inch. UL listed.

SL 750 N

Tin Plated Copper Two-Hole Stacking NEMA Lugs - stacking lug, wire size 750 kcmil Stranded Copper, uses bolt size 1/2 inch. Installing Dies 1 5/16, 24, 106. Length 6-61/64 inch. Pad 1-29/32 inch wide x 2-7/8 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-13/16 inch. UL listed.
Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 5 inch, stud size 1/2 X 4, cable range #12-350 kcmil, outlets 4, with Oxide Inhibitor

ABP 4350 C 1/2

Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 5 inch, stud size 1/2 X 4, cable range #12-350 kcmil, outlets 4, with Oxide Inhibitor
Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 4-5/32 inch, stud size 1/2 X 4, cable range 6-250, outlets 4, with Oxide Inhibitor

ABP 440 C

Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 4-5/32 inch, stud size 1/2 X 4, cable range 6-250, outlets 4, with Oxide Inhibitor
Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 5 inch, stud size 5/8 X 4, cable range #12-350 kcmil, outlets 4, with Oxide Inhibitor

ABP 4350 C

Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 5 inch, stud size 5/8 X 4, cable range #12-350 kcmil, outlets 4, with Oxide Inhibitor

Frequently Asked Questions

What wire sizes does the ABB SA 400 N lug support?

The SA 400 N lug supports 400 Compressed, 336.4 - 400 Stranded, 500 Compact AL-CU, and ACSR conductors including 366.4 (18/1) and 397.5 (18/1) variants.

What are the dimensions of the ABB SA 400 N lug pad?

The pad of the SA 400 N lug measures 1-1/4 inch wide by 3 inches long and is 25/64 inch thick.

What is the hole spacing on the ABB SA 400 N lug?

The SA 400 N lug features two 9/16 inch diameter holes spaced 1-3/4 inches apart on center.

Does the ABB SA 400 N lug come with an oxide inhibitor?

Yes, the SA 400 N lug includes a pre-applied oxide inhibitor to ensure optimal connection integrity.

What is the barrel length of the SA 400 N lug?

The barrel length of the ABB SA 400 N lug is 2-7/16 inches.

What is the overall length of the SA 400 N lug?

The overall length of the ABB SA 400 N lug is 6-3/8 inches.

What installation dies are compatible with the SA 400 N lug?

The SA 400 N lug is compatible with installation dies including 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, and CSA28.

What material is the ABB SA 400 N lug made from?

The ABB SA 400 N lug is constructed from aluminum.
