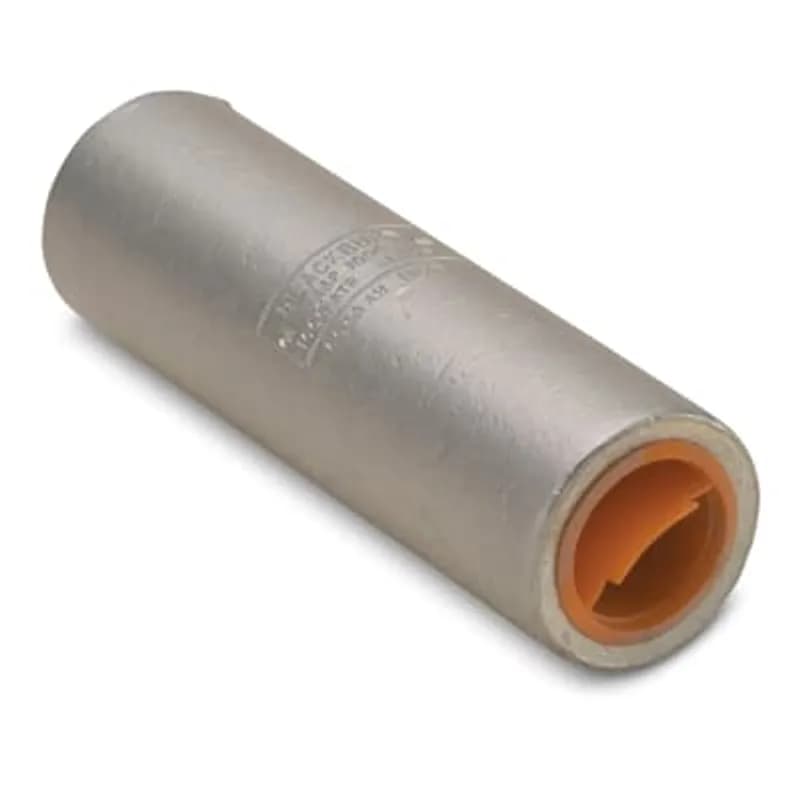

ABB Installation Products RS4040 Aluminum Service Entrance Compression Splice for Wire Range - End A: 400-336 kcmil…
UPC: 783786050512
Documents & Media
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Accommodates 400-336 kcmil stranded conductors on both ends.
- Dual rated for reliable connections with both aluminum and copper conductors.
- Requires specific installing dies: B20AH, 1-5/16, 318.
- Compact dimensions: 7-1/2 inch length, 1-3/8 inch diameter.
- Designed for service entrance applications requiring secure electrical connections.
Specifications
Conductor Range | 400 to 336 kcmil |
Connection | Compression |
Finish | Bare |
Insulation | None |
Material | Aluminum |
Size | 7-1/2 inch Length |
Special Features | Prefilled with Oxide Inhibitor |
Standard | ANSI C119.4 |
Type | Compression Splice Service Entrance |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.8000 L |
Package Weight (Metric) | 0.3630 kg |
