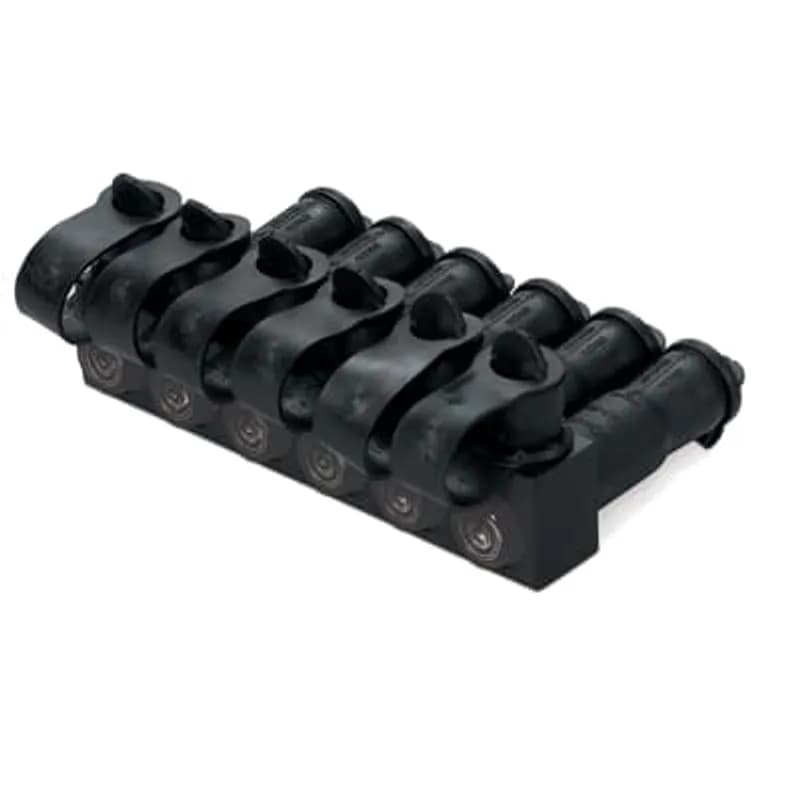

ABB - Installation Products RAB 6 C-AS - Insulated Bus Connector, #12-350, Aluminum/Santoprene, 6 Position Outlets, Electrical Connector less than 1000 Volts. AS - Anodized Screws. RAB 350 Series comes with Inward-Seal Rockets. Length 7-1/8 inches. Provided with Oxide Inhibitor.

ABB Installation Products RAB 6 C-AS Insulated Bus Connector, #12-350, Aluminum/Santoprene, 6 Position Outlets, Electrical…

UPC: 075114317641


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RAB 6 C-AS is a 6-position insulated bus connector designed for electrical systems operating under 1000 volts. This connector accommodates wire sizes from #12 to 350 AWG, making it suitable for medium to heavy-duty applications. Constructed from aluminum and Santoprene, it provides both electrical insulation and mechanical durability. The connector features inward-seal rockets for enhanced environmental protection against moisture and contaminants, ensuring reliable performance in harsh conditions. Supplied with an oxide inhibitor, it prevents corrosion at connection points, extending service life. The RAB 350 Series includes anodized screws for improved corrosion resistance and secure fastening. With a length of 7-1/8 inches, this connector is optimized for compact installations where space is a consideration. Ideal for use in industrial power distribution, renewable energy systems, and commercial electrical panels, the RAB 6 C-AS delivers consistent electrical connectivity with minimal maintenance. The UNSPSC code 39121443 classifies it as a bus bar connector, confirming its compliance with industry standards for electrical distribution components.
  • 6-position outlet for parallel electrical connections
  • Accommodates wire sizes from #12 to 350 AWG
  • Inward-seal rockets for environmental protection
  • Anodized screws for corrosion resistance
  • 7-1/8" length with oxide inhibitor included

Specifications

Application
Dual-Rated Connector
Color
Black
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Connection Type
Screw
Environmental Conditions
Waterproof
Insulation
yes
Material
6061-T6 Aluminum Connector, Santoprene Body
Material
Aluminum/Santoprene
Number of Conductors
6
Number of Poles
6
Poles
6
Series
RAB 350
Size
Length 7-1/8 inches
Size
#12-350 AWG
Special Features
High Performance, Dual Rated Connectors. Anodized Screw
Standard
RUS Accepted
Type
Aluminum Flood-Seal Multi-Port Connector RAB 350 Series
Voltage Rating
1000 V
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1300 L
Package Weight (Metric)
0.5130 kg
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.

RAB 4 OR

Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 5/8 inch, Four Conductor, with Adapter on Opposite Side to make it a Left Hand Connector

ABD 4350 SLL

Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 5/8 inch, Four Conductor, with Adapter on Opposite Side to make it a Left Hand Connector
EZ Keeper, Tin-Plated Aluminum Transformer Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Bolt 1/2 inch, Two Conductor. 6.253 inch x 1.875 inch x 1.625 inch wide

ABK 11000 TNC

EZ Keeper, Tin-Plated Aluminum Transformer Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Bolt 1/2 inch, Two Conductor. 6.253 inch x 1.875 inch x 1.625 inch wide
Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 1 inch, Four Conductor

ABD 4500-1

Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 1 inch, Four Conductor
Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 1 inch, Eight Conductor,with Adapter on Opposite Side to make it a Left Hand Connector

ABD 8350-1 SLL

Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 1 inch, Eight Conductor,with Adapter on Opposite Side to make it a Left Hand Connector
EZ Keeper, Aluminum Transformer Connector, #6 - 350 kcmil, Aluminum and Copper, Bolt 3/8 inch, One Conductor

ABK 1350-375

EZ Keeper, Aluminum Transformer Connector, #6 - 350 kcmil, Aluminum and Copper, Bolt 3/8 inch, One Conductor
Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 5/8 inch, Six Conductor

ABD 6500-58 SL

Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 5/8 inch, Six Conductor
Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 5/8 inch, Eight Conductor, with Adapter on Opposite Side to make it a Left Hand Connector

ABD 8350 SLL

Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 5/8 inch, Eight Conductor, with Adapter on Opposite Side to make it a Left Hand Connector

How to Install Thomas & Betts RAB 350 Series Connectors

This guide provides step-by-step instructions for safely installing Thomas & Betts RAB 350 Series connectors, covering cable preparation, insertion, and proper torquing for various cable sizes.

Estimated time: 20m

Tools needed:

Wire strippers, Utility knife or cable cutters, Torque wrench, Insulating gloves

Supplies needed:

RAB 350 Series connector, Electrical cable (#12 to 350 kcmil), Cable port seals (if not integrated)

  1. Observe Safety Precautions

    WARNING: Danger of Electric Shock! Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules. Always follow standard safety practices when working on energized circuits. Wear insulating gloves rated to the appropriate voltage when installing on live conductors. Tap conductors may be installed on an energized main but MUST NOT BE UNDER LOAD. Ensure all unused cable ports are sealed.

  2. Prepare the Rocket (if applicable)

    If installing 300/350 kcmil cable, remove the rocket as it is not required. For #12 to 250 kcmil cable, cut the rocket at the marked ring. Reinsert the rocket if it was cut or removed and is required for your cable size.

  3. Prepare the Cable

    Measure the required strip length by placing the cable alongside the markings on the tower. Strip the cable to the measured length. Ensure the cable is not under load if working on an energized main.

  4. Insert the Cable

    Insert the prepared cable into the appropriate opening: into the tower for 300 to 350 kcmil cables, or into the rocket for #12 to 250 kcmil cables. Push the cable until the end of the conductor touches the internal window.

  5. Remove the Screw Plug

    Locate the screw plug on the connector and remove it by pulling its tether.

  6. Torque the Connector

    Using a torque wrench, tighten the connector to the specified values shown on the tether. Apply 120 in-lb for #12 to #3 cables, and 240 in-lb for #2 to 350 kcmil cables. The acceptable torque range for 2 - 350 kcmil is 240 - 350 in-lb. Wear insulating gloves if working on live conductors.

  7. Replace and Reseal the Screw Plug

    After torquing, replace the screw plug. Then, reseal the connector by installing the attached plug to ensure environmental protection.
