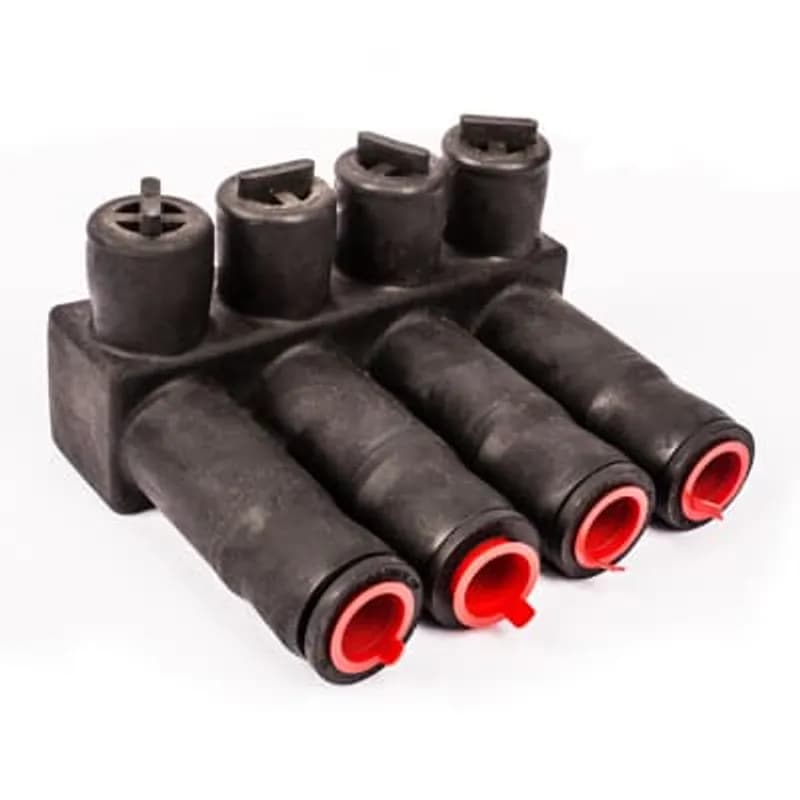

ABB - Installation Products RAB 35 C - Aluminum Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 4.5 inch, 114 mm, ports 3, Oxide Inhibitor

ABB Installation Products RAB 35 C Aluminum Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 4.5 inch…

UPC: 783786745159


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RAB 35 C is a robust, 3-port aluminum multi-port connector from the RAB 500 Series, designed for reliable electrical connections. Engineered for versatility, this connector accommodates a wide cable range from 12 to 500 kcmil, ensuring compatibility with various conductor sizes commonly found in industrial and commercial electrical installations. Its compact 4.5-inch (114 mm) length makes it suitable for applications where space is a consideration, while the 3-port configuration allows for efficient branching or termination of multiple conductors from a single point. Constructed from high-grade aluminum, the RAB 35 C offers excellent conductivity and corrosion resistance, crucial for maintaining signal integrity and longevity in diverse environmental conditions. Each connector is pre-filled with an oxide inhibitor, a critical feature that prevents oxidation at the conductor-connector interface. This proactive measure significantly reduces contact resistance over time, minimizing heat buildup and ensuring a stable, low-resistance connection that is essential for safe and efficient power distribution. The inclusion of oxide inhibitor is a key specification for ensuring the long-term performance and reliability of the electrical system. This connector is ideal for use in power distribution systems, substations, industrial control panels, and other applications requiring secure and durable connections for aluminum conductors. The ABB RAB 35 C is manufactured by ABB, a globally recognized leader in electrification and automation products, ensuring adherence to stringent quality standards. The SKU RAB 35 C clearly identifies this specific model within the comprehensive ABB catalog. Key Specifications: * **Manufacturer:** ABB - Installation Products * **Series:** RAB 500 Series * **SKU:** RAB 35 C * **Material:** Aluminum * **Number of Ports:** 3 * **Cable Range:** 12 - 500 kcmil * **Length:** 4.5 inches (114 mm) * **Features:** Pre-filled with Oxide Inhibitor
  • ABB RAB 500 Series Aluminum Multi-Port Connector
  • Accommodates cable range from 12 to 500 kcmil
  • 3-port configuration for efficient conductor termination
  • Durable aluminum construction for conductivity and corrosion resistance
  • Pre-filled with oxide inhibitor to prevent oxidation and ensure stable connections

Specifications

Application
Direct-Burial, Pedestal or Vault Applications
Color
Black
Conductor Range
#12 to 500 kcmil
Connection
Mechanical
Connection Type
Multi-Port
Environmental Conditions
Waterproof
Insulation
yes
Material
Aluminum Connector, Santoprene Body
Material
Aluminum
Number Of Conductors
3
Number of Poles
3
Poles
3
Series
RAB 500 Series
Size
length 4.5 inch, 114 mm
Size
12-500 kcmil
Special Features
Comapct Design, Built Touch for Rugged Conditions
Standard
RUS Accepted
Type
Aluminum Flood-Seal Multi-Port Connector RAB 500 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1700 L
Package Weight (Metric)
0.5310 kg
Flood Seal, Aluminum Bus Connector, #12 - 500 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Tower

FS 6-125 CSN

Flood Seal, Aluminum Bus Connector, #12 - 500 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Tower
SweetHeart Aluminum Bus Connector, #2 - 500 kcmil, Dual Rated Aluminum and Copper, Four Conductor, 3 pieces

UH 500-4 SLR

SweetHeart Aluminum Bus Connector, #2 - 500 kcmil, Dual Rated Aluminum and Copper, Four Conductor, 3 pieces
Aluminum Transformer Connector-CSW Series - Quick Disconnect, Cable Range 6-500, Stud Size 5/8 Inch, Insulator Length 7-3/16 inch, Outlets 4, Oxide Inhibitor And Street Light Outlet Option

CSW 4500-58 SLC

Aluminum Transformer Connector-CSW Series - Quick Disconnect, Cable Range 6-500, Stud Size 5/8 Inch, Insulator Length 7-3/16 inch, Outlets 4, Oxide Inhibitor And Street Light Outlet Option
Aluminum Transformer Connector-CSW Series - Quick Disconnect, Cable Range 12-350, Stud Size 5/8 Inch, Insulator Length 7-1/16 Inch, Outlets 6, Oxide Inhibitor

CSW 6350 C

Aluminum Transformer Connector-CSW Series - Quick Disconnect, Cable Range 12-350, Stud Size 5/8 Inch, Insulator Length 7-1/16 Inch, Outlets 6, Oxide Inhibitor
SweetHeart Aluminum Bus Connector, #2 - 500 kcmil, Dual Rated Aluminum and Copper, Five Conductor, 3 pieces

UH 500-5 SLR

SweetHeart Aluminum Bus Connector, #2 - 500 kcmil, Dual Rated Aluminum and Copper, Five Conductor, 3 pieces
Aluminum Transformer Connector-CSW Series - Quick Disconnect, Cable Range 12-350, Stud Size 5/8 Inch, Insulator Length 7-1/16 Inch, Outlets 6, Oxide Inhibitor and Street Light Outlet Option

CSW 6350 SLC

Aluminum Transformer Connector-CSW Series - Quick Disconnect, Cable Range 12-350, Stud Size 5/8 Inch, Insulator Length 7-1/16 Inch, Outlets 6, Oxide Inhibitor and Street Light Outlet Option
Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 6-500, stud size 1 inch, insulator length 9-3/16 inch, outlets 6, Oxide Inhibitor

CSW 6500 C

Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 6-500, stud size 1 inch, insulator length 9-3/16 inch, outlets 6, Oxide Inhibitor
Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 6-500, stud size 1 inch, insulator length 9-3/16 inch, outlets 6, Oxide Inhibitor and StreetLight Outlet-Option

CSW 6500 SLC

Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 6-500, stud size 1 inch, insulator length 9-3/16 inch, outlets 6, Oxide Inhibitor and StreetLight Outlet-Option

How to Install the RAB Submersible Set Screw Junction

This guide provides step-by-step instructions for the proper installation of the RAB Submersible Set Screw Junction, including cable preparation, conductor insertion, and torquing procedures. Ensure power is disconnected and installation is performed by a qualified electrician.

Estimated time: 30m

Tools needed:

Wire brush, Torque wrench, Wire strippers, Cutting tool

Supplies needed:

RAB Submersible Set Screw Junction, Silicone lubricant, Conductor cable, Set screw plug

  1. Perform Pre-Installation Checks and Safety Precautions

    WARNING: Risk of shock, disconnect power before installation. CAUTION: Product must be installed by a qualified electrician in accordance with national and local electrical codes. Check package contents for completeness and damage. Verify proper fit with cable and mating products. Read all instructions. Gather all required tools and maintain cleanliness. All apparatus must be de-energized during installation or removal of parts. Do not touch or move energized products.

  2. Remove Conductor Cable Seal Sleeve

    Remove the conductor cable seal sleeve from the bus.

  3. Select and Cut Cable Seal Sleeve Ring

    Select the correct ring at the tip of the arrow on the sleeve based on conductor size and insulation diameter. Cut the sleeve straight across the end of the ring to be used. For #4 to #2 conductor (0.36”-0.46” insulation), cut the corresponding ring. For #12 to #6 (0.15”-0.35”), cut the corresponding ring. For 3/0 to 4/0 (0.59”-0.72”), cut the corresponding ring. For 250 to 350MCM (0.73”-0.90”), cut the corresponding ring. For #1 to 2/0 (0.47”-0.58”), cut the corresponding ring. Use the conductor port without a sleeve for 400-500 kcmil wire sizes.

  4. Prepare Conductor Insulation

    Wipe the end of the conductor insulation clean. Apply silicone lubricant to the conductor insulation.

  5. Position Sleeve on Cable

    Slide the collar end of the sleeve onto the cable so that 4 inches of the insulation is showing.

  6. Strip Conductor Insulation

    Strip insulation from the conductor. Use a strip length of 1 3/8 inches as imprinted on the bus cover.

  7. Wire Brush Conductor

    Wire brush the conductor to break up oxides on the conductor surface, ensuring good electrical contact.

  8. Prepare Set Screw

    Back the set screw out to allow the necessary clearance for the conductor.

  9. Install Conductor

    Install the conductor into the conductor port of the bus until the conductor hits the bottom of the port. The sleeve tip should be even with the end of the port, indicating full cable insertion.

  10. Torque Set Screws

    Torque the set screws according to the conductor size: #12 - 1/0 AWG/MCM: 110 - 120 inch pounds; 2/0 - 4/0 AWG/MCM: 200 - 250 inch pounds; 250 - 350 MCM: 300 - 400 inch pounds; 400 - 500 MCM: 360 - 500 inch pounds. Use a torque wrench for accurate application.

  11. Install Set Screw Plug

    Install the set screw plug into the access port after torquing the set screw.

  12. Lubricate and Insert Sleeve

    Apply silicone lubricant to the outside of the sleeve on the ring marked 3/0-4/0. If the 3/0-4/0 ring has been removed, apply silicone lubricant to the 250-350 ring. Slide the sleeve into the port so that the sleeve collar is flush against the end of the port.

  13. Repeat for Additional Conductors

    Repeat steps 2 through 12 for each additional conductor port requiring installation.
