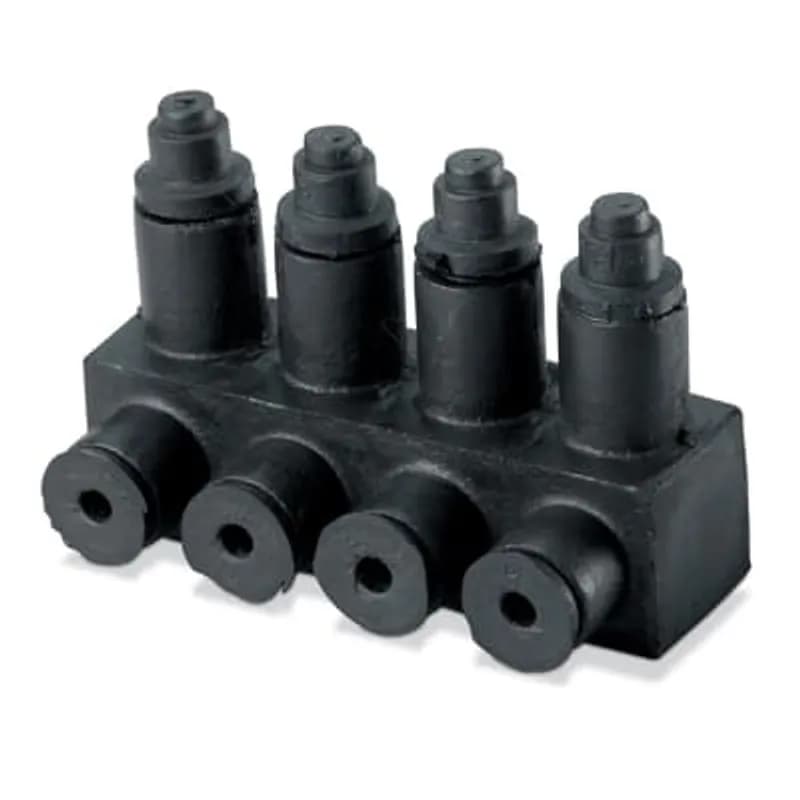

ABB - Installation Products RAB 1/0-8 - Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Eight Conductor, Mechanical Connector

ABB Installation Products RAB 1/0-8 Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Eight…

UPC: 783786780402


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Multi Seal RAB 1/0-8 is a mechanical bus connector engineered for reliable, insulated connections of multiple conductors in industrial and commercial electrical systems. Designed for conductors ranging from #14 AWG to 1/0 AWG, this connector accommodates both aluminum and copper wires, providing flexibility in material selection for installations where conductor compatibility is critical. The eight-conductor configuration enables efficient consolidation of multiple wires into a single, compact housing, reducing wiring complexity and improving system organization. This connector features a Multi Seal design that provides environmental protection against moisture, dust, and corrosion, ensuring long-term reliability in harsh or exposed environments. The insulated aluminum construction enhances safety by preventing accidental short circuits and reducing the risk of electrical hazards. Installation is straightforward with standard tools—no specialized crimping equipment is required—though proper torque (80 in/lbs) must be applied to ensure a secure connection. The RAB 1/0-8 is ideal for applications such as control panels, junction boxes, distribution systems, and other electrical enclosures where space efficiency and safety are priorities. Its mechanical connection method eliminates the need for soldering or welding, simplifying maintenance and future modifications. The connector includes a removable cap and screw plug for easy access during installation or reconfiguration, with clear markings on the bottom to guide proper conductor stripping and insertion. Unused ports must be sealed to maintain environmental protection. Compatible with tap conductors on energized mains (when not under load), this connector meets standard safety practices for electrical installations.
  • Accommodates #14 to 1/0 AWG aluminum and copper conductors
  • Eight-conductor configuration for efficient wire consolidation
  • Multi Seal design provides environmental protection against moisture and corrosion
  • Mechanical connection with standard tooling (80 in/lbs torque required)
  • Removable cap and screw plug for easy installation and reconfiguration

Specifications

Application
Dual-Rated Connector
Color
Black
Conductor Range
#14 to 1/0 AWG
Connection
Mechanical
Connection Type
Mechanical Connector
Environmental Conditions
Waterproof
Insulation
yes
Material
Aluminum and Copper
Material
6061-T6 Aluminum Connector, Santoprene Body
Number of Conductors
8
Number of Poles
8
Poles
8
Series
RAB
Size
Length 6-13/16 inches
Size
#14 - 1/0
Special Features
High Performance, Dual Rated Connectors
Standard
RUS Accepted
Type
Aluminum Flood-Seal Multi-Port Connector RAB 1/0 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.6000 L
Package Weight (Metric)
0.2720 kg
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Three Conductor, Orange Plug instead of Black

RAB 1/0-3 OP

Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Three Conductor, Orange Plug instead of Black
Tin Plated Copper Flood Seal Connector with EPDM Rubber Coating on main body, 12-1/4 inch High x 2-1/4 inch thick x 10-1/2 inch Long. Total Outlets 6, 3 on each side.

FXL 33-175 CU

Tin Plated Copper Flood Seal Connector with EPDM Rubber Coating on main body, 12-1/4 inch High x 2-1/4 inch thick x 10-1/2 inch Long. Total Outlets 6, 3 on each side.
Multi-Port Copper Transformer Connector - Bus 5 positions/towers with two 1/2 inch holes per tower, 1000 MCM, 11.750 inches x 12.531 inches. Welded 45 Degree Copper Pad with Six 0.625 inch Diameter Holes (Spacing 1.625 inch side to side and 1.750 inch front to back) on 5 inch x 3.312 inch x .750 inch Thick Pad. Coated with Black PVC. Includes 10 Screws for Towers. Right Hand Pad.

FS 5-175-6 BF 45 RCU

Multi-Port Copper Transformer Connector - Bus 5 positions/towers with two 1/2 inch holes per tower, 1000 MCM, 11.750 inches x 12.531 inches. Welded 45 Degree Copper Pad with Six 0.625 inch Diameter Holes (Spacing 1.625 inch side to side and 1.750 inch front to back) on 5 inch x 3.312 inch x .750 inch Thick Pad. Coated with Black PVC. Includes 10 Screws for Towers. Right Hand Pad.
Flood Seal, Tin Plated Copper Bus Connector with Studs, 1/0 - 1000 kcmil, Bolt 1/2 inch, One Row of 6 Outlets. Two holes each Outlet. 16.750 inch x 5.875 inch x 2.250 inch Thick. Includes 12 Screws for Towers and Two 5/8-11 UNC-2B x 1.750 inch Stainless Steel Studs. Coated with EPDM Rubber.

FS 175-6-7018 CU

Flood Seal, Tin Plated Copper Bus Connector with Studs, 1/0 - 1000 kcmil, Bolt 1/2 inch, One Row of 6 Outlets. Two holes each Outlet. 16.750 inch x 5.875 inch x 2.250 inch Thick. Includes 12 Screws for Towers and Two 5/8-11 UNC-2B x 1.750 inch Stainless Steel Studs. Coated with EPDM Rubber.
Ring Bus Connector 6 Tap Positions, Aluminum with PVC coating, Main 1000 MCM, (6) Taps 500 MCM, 20 inches wide without counting Rockets. Dies 161 292 302 319 1 3/4, Contains Oxide Inhibiting Compound, Main 954-1000 MCM AL-CU. Tap 795 26/7 30/19 954 45/7 ACSR.

RBC 1000-6500

Ring Bus Connector 6 Tap Positions, Aluminum with PVC coating, Main 1000 MCM, (6) Taps 500 MCM, 20 inches wide without counting Rockets. Dies 161 292 302 319 1 3/4, Contains Oxide Inhibiting Compound, Main 954-1000 MCM AL-CU. Tap 795 26/7 30/19 954 45/7 ACSR.
Aluminum 95 Series Terminal Force-Fit Kit - Concentric 250, Compressed 250, Compact 300, Die Reference 1 1/8-1, 299-655, 96, 13A, 321, 326, with Hex Headed Bolt

CFB 250 CSH

Aluminum 95 Series Terminal Force-Fit Kit - Concentric 250, Compressed 250, Compact 300, Die Reference 1 1/8-1, 299-655, 96, 13A, 321, 326, with Hex Headed Bolt
Tin-Plated Copper Flood Seal Bus Connector. Total 36 usable Towers - 18 per Side - 2-Holes per Tower. Includes (80) Screws, (2) Copper Pads, (2) EPDM Rubber Boots, (2) EPDM Rubber Adapters, (8) Stainless Steel Flat Washers and Silicone Grease.

FS 1818-175 CU

Tin-Plated Copper Flood Seal Bus Connector. Total 36 usable Towers - 18 per Side - 2-Holes per Tower. Includes (80) Screws, (2) Copper Pads, (2) EPDM Rubber Boots, (2) EPDM Rubber Adapters, (8) Stainless Steel Flat Washers and Silicone Grease.
Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector, #2-1000 kcmil, Aluminum and Copper, 6 Conductor, includes Screws, Rockets and Caps. 10.875 inch

RXM 6 C

Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector, #2-1000 kcmil, Aluminum and Copper, 6 Conductor, includes Screws, Rockets and Caps. 10.875 inch

How to Install the Multi-Seal® RAB 1/0 SERIES Connector

This guide provides step-by-step instructions for safely installing the Multi-Seal® RAB 1/0 SERIES connector, including preparing the cap, stripping the cable, and torquing the connection. Always follow standard safety practices and wear insulating gloves when working on energized circuits.

Estimated time: 15m

Tools needed:

Wire strippers, Torque wrench, Insulating gloves (rated to appropriate voltage)

Supplies needed:

Multi-Seal® RAB 1/0 SERIES connector, Electrical cable (main and tap conductors)

  1. Prepare the Connector Cap

    For #14 to #4 AWG cables, remove the cap and cut it at the correct cut-off ring. For #2 to 1/0 AWG cables, remove the cap as it is not required. Reinsert the cap if it was cut and is required for your specific cable size.

  2. Remove the Screw Plug

    Remove the screw plug from the connector body.

  3. Measure and Strip the Cable

    Place the cable alongside the markings on the bottom of the connector to determine the correct strip length. Strip the cable to this measured length. If reinstalling, ensure the cable is of the same size or larger than the one removed.

  4. Insert the Cable

    Insert the stripped cable fully into the appropriate opening: into the tower for #2 to 1/0 AWG cables, or into the prepared cap for #14 to #4 AWG cables.

  5. Secure and Torque the Connection

    Replace the screw plug. Using a torque wrench, tighten the connector to 80 in/lbs to ensure a secure electrical connection.

  6. Seal Unused Ports

    Ensure all unused cable ports on the connector are properly sealed to prevent ingress and maintain the integrity of the connection.
