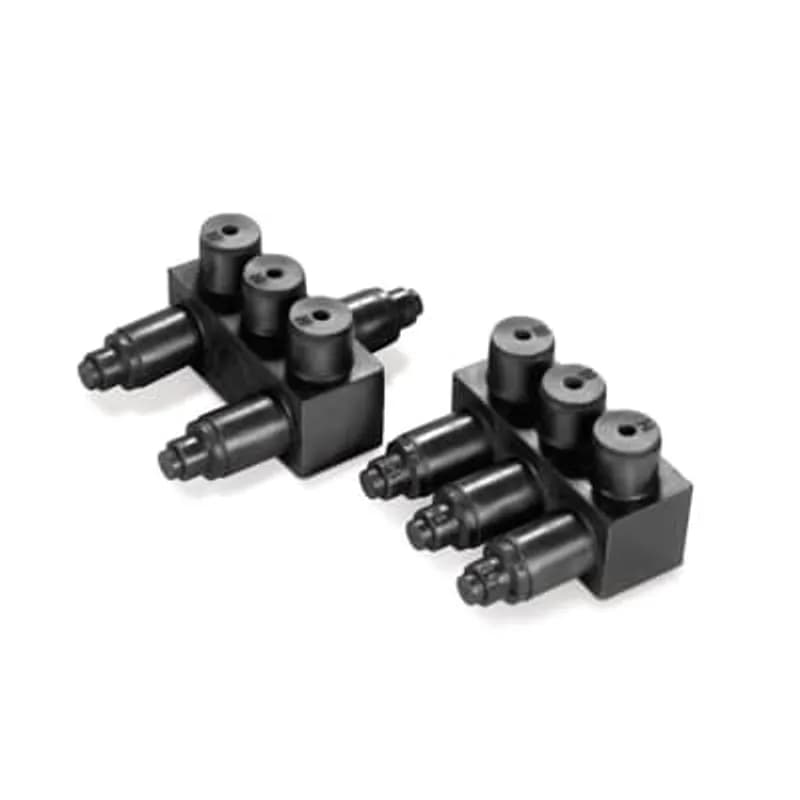

ABB Installation Products RAB 1/0-33 Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Six…
UPC: 075114264945
Documents & Media
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Six-conductor insulated bus connector for #14 to 1/0 AWG aluminum and copper conductors
- Multi Seal technology protects against moisture, corrosion, and environmental contaminants
- Aluminum construction with copper compatibility to reduce galvanic corrosion risk
- Designed for panelboard, switchgear, and control panel applications
- Meets NEC requirements for conductor insulation compatibility and short-circuit protection
Specifications
Application | Dual-Rated Connector |
Color | Black |
Conductor Range | #14 to 1/0 AWG |
Connection | Mechanical |
Connection Type | Multi Seal, Insulated Bus Connector |
Environmental Conditions | Waterproof |
Insulation | yes |
Material | Aluminum and Copper |
Material | 6061-T6 Aluminum Connector, Santoprene Body |
Number of Conductors | 6 |
Number of Poles | 6 |
Poles | 6 |
Size | Length 5-1/8 inches |
Size | #14 - 1/0 |
Special Features | High Performance, Dual Rated Connectors |
Standard | RUS Accepted |
Type | Aluminum Flood-Seal Multi-Port Connector RAB 1/0 Series |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.4500 L |
Package Weight (Metric) | 0.2040 kg |

RAB 1/0-3 OP
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Three Conductor, Orange Plug instead of Black
RAB 4 C-AS
Aluminum Insulated Bus Connector, #12-350, 4 Conductors, Aluminum and Rubber Molded, 4 Position Connector with Anodized Screws.
RAB 6 C-AS
Insulated Bus Connector, #12-350, Aluminum/Santoprene, 6 Position Outlets, Electrical Connector less than 1000 Volts. AS - Anodized Screws. RAB 350 Series comes with Inward-Seal Rockets. Length 7-1/8 inches. Provided with Oxide Inhibitor.
ABD 4350 SLL
Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 5/8 inch, Four Conductor, with Adapter on Opposite Side to make it a Left Hand Connector
ABK 11000 TNC
EZ Keeper, Tin-Plated Aluminum Transformer Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Bolt 1/2 inch, Two Conductor. 6.253 inch x 1.875 inch x 1.625 inch wide
ABD 4500-1
Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 1 inch, Four Conductor
ABD 8350-1 SLL
Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 1 inch, Eight Conductor,with Adapter on Opposite Side to make it a Left Hand Connector
ABK 1350-375
EZ Keeper, Aluminum Transformer Connector, #6 - 350 kcmil, Aluminum and Copper, Bolt 3/8 inch, One ConductorHow to Install Multi-Seal® RAB 1/0 Series Connector
This guide provides step-by-step instructions for the safe and proper installation of the Multi-Seal® RAB 1/0 Series connector, including cable preparation and torquing specifications.
Estimated time: 15m
Tools needed:
Torque Wrench, Cable Strippers, Insulating Gloves (if working on live conductors)
Supplies needed:
Electrical Cable
- Review Safety and Prepare Connector
Before beginning, ensure all applicable local, state, and national electrical codes, installation standards, and safety rules are followed. If working on live conductors, wear insulating gloves rated to the appropriate voltage and ensure the tap conductor is NOT UNDER LOAD. For #14 to #4 AWG cables, remove the cap, cut it at the correct cut-off ring, then reinsert it. For #2 to 1/0 AWG cables, the cap is not required. Remove the screw plug from the connector.
- Measure and Strip Cable
Measure the required strip length by placing the electrical cable alongside the markings on the bottom of the connector. Carefully strip the cable to the measured length, ensuring a clean cut.
- Insert and Torque Cable
Insert the prepared cable into the appropriate opening (the tower for #2 to 1/0 AWG or the cap for #14 to #4 AWG) until it is fully seated. Replace the screw plug. Using a torque wrench, tighten the connector to 80 in/lbs to ensure a secure and proper electrical connection.
- Verify Installation and Seal Ports
Verify that the cable is securely inserted and the connector is properly torqued. Ensure all unused cable ports on the connector are sealed to maintain integrity and prevent environmental ingress.
