ABB - Installation Products RA2577FM - Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal, Length .80 Inches, Width .71 Inches, Maximum Insulation .170, Tab Size .250x.032, Wire Range #22-18 AWG, Color Red, Copper, Tin Plated, On Mylar Tape, 500 Pack

ABB Installation Products RA2577FM Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal, Length .80 Inches…

UPC: 786210894447


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

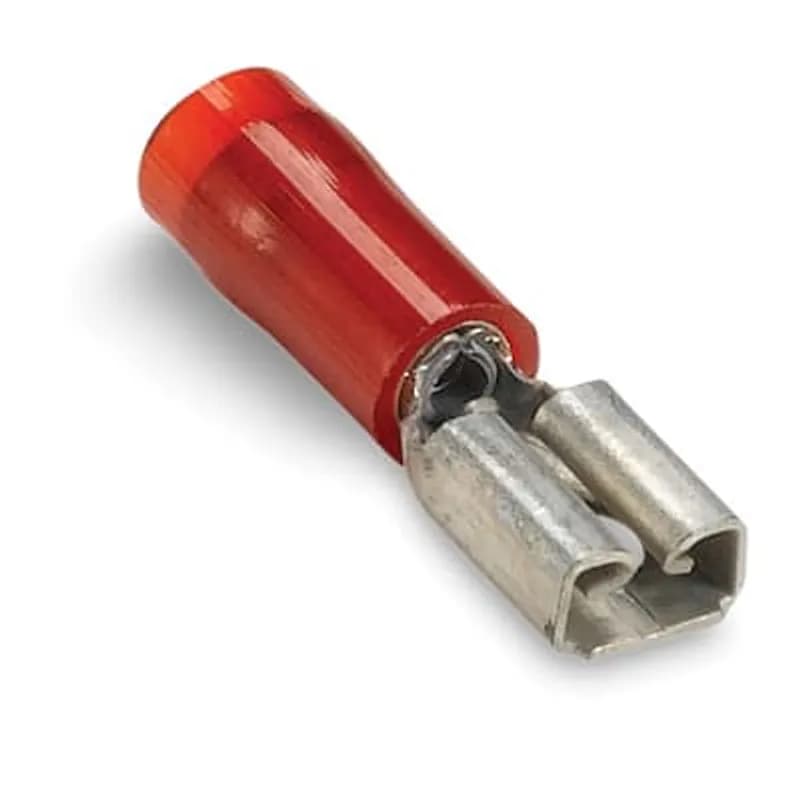

The ABB RA2577FM is a red, nylon-insulated, open-top, 90-degree flag female disconnect terminal designed for reliable electrical connections. Manufactured by ABB Installation Products, this terminal (SKU: RA2577FM) is constructed from copper with a tin plating for enhanced conductivity and corrosion resistance. It features a maximum insulation capacity of .170 inches, accommodating wire sizes from #22 to #18 AWG. The tab dimensions are .250 inches by .032 inches, ensuring compatibility with standard mating connectors. This terminal is supplied on Mylar tape, facilitating efficient automated application processes. Each pack contains 500 units, making it suitable for high-volume industrial and commercial electrical installations. The open-top design allows for easy wire insertion and visual inspection of the connection. Its 90-degree flag configuration provides a specific orientation for wiring layouts, optimizing space and accessibility in control panels and junction boxes. The durable nylon insulation offers electrical isolation and mechanical protection. This terminal is a component within the broader UNSPSC code 39121447, pertaining to electrical connectors and terminals. Its precise dimensions, including a length of .80 inches and a width of .71 inches, are critical for integration into existing electrical systems and equipment.
  • Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal
  • Wire Range: #22-18 AWG
  • Tab Size: .250x.032 Inches
  • Material: Tin Plated Copper
  • Color: Red, Supplied on Mylar Tape, 500 Pack

Specifications

Color
Red
Connection Type
Flag Female Disconnect Terminal
Finish
Tin Plated
Insulation
Yes
Material
Copper
Material
Nylon, Copper, Tin
Type
Nylon Insulated Open Top 90 Degree Flag Female Disconnect
Voltage Rating
600 V
Wire Size
22-18 AWG
Package Dimensions (L x W x H)
15.3 IN x 15.3 IN x 2.3 IN
Package Dimensions (L x W x H)
38.862 cm x 38.862 cm x 5.842 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
22-18 AWG Insulated Flag, 50/Pack

IFL22-250-3N

22-18 AWG Insulated Flag, 50/Pack
Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .136, Tab Size .187x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack

RAD1833

Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .136, Tab Size .187x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack
Polycarbonate Insulated Male Disconnect Terminal Wire Range .5-1.5 millimeters squared Tab Size 6.3 x .8mm

RA63M

Polycarbonate Insulated Male Disconnect Terminal Wire Range .5-1.5 millimeters squared Tab Size 6.3 x .8mm
Nylon-Insulated Female Disconnect, Length .75 Inches, .15 Width, Maximum Insulation .110, Tab Size .110x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack, On Mylar Tape

RA10M

Nylon-Insulated Female Disconnect, Length .75 Inches, .15 Width, Maximum Insulation .110, Tab Size .110x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack, On Mylar Tape
Nylon-Insulated Female Disconnect, Length .75 Inches, .15 Width, Maximum Insulation .110, Tab Size .110x.020, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, On Mylar Tape

RA11M

Nylon-Insulated Female Disconnect, Length .75 Inches, .15 Width, Maximum Insulation .110, Tab Size .110x.020, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, On Mylar Tape
Nylon Insulated Female Disconnect 250 Series Wire Range 22-18 STR Tabe Size 0.250 x 0.032 Color Red

RA18-250FL

Nylon Insulated Female Disconnect 250 Series Wire Range 22-18 STR Tabe Size 0.250 x 0.032 Color Red
Insulated Nylon Female - 110 Series Disconnects For Wire Range 16-14 Length 0.75 Blue Mylar Tape

RB10M

Insulated Nylon Female - 110 Series Disconnects For Wire Range 16-14 Length 0.75 Blue Mylar Tape
Nylon Insulated Female Disconnect, Length .75 Inches, .15 Width, Maximum Insulation .135, Tab Size .110x.020, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, On Mylar Tape, 1,000 Pack

RB11M

Nylon Insulated Female Disconnect, Length .75 Inches, .15 Width, Maximum Insulation .135, Tab Size .110x.020, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, On Mylar Tape, 1,000 Pack

Frequently Asked Questions

What wire gauge is compatible with this terminal?

This terminal is designed for wire sizes ranging from #22 to #18 AWG.

What are the dimensions of the tab on this terminal?

The tab size for this terminal is .250 inches by .032 inches.

What is the insulation material and color?

The terminal features nylon insulation and is colored red.

What is the plating on the copper terminal?

The copper terminal is tin plated for enhanced conductivity and corrosion resistance.

How are these terminals supplied?

The terminals are supplied on Mylar tape, facilitating automated application.

How many terminals are included in a pack?

Each pack contains 500 units of the RA2577FM terminal.
