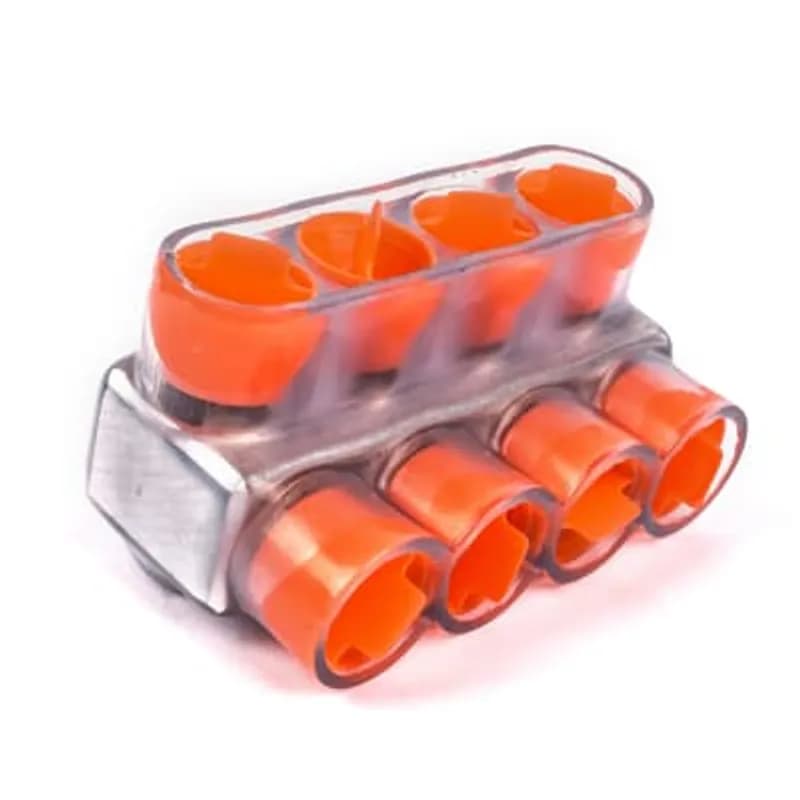

ABB - Installation Products PSB4359C - Insulated Pedestal Connector Bar - Type PSB-C, 350 Series, Number or Ports 4, Cable Range #12-350

ABB Installation Products PSB4359C Insulated Pedestal Connector Bar - Type PSB-C, 350 Series, Number or Ports 4, Cable…

UPC: 783786830947


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 24

Multiplier: 24

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PSB4359C insulated pedestal connector bar (Type PSB-C, 350 Series) provides a reliable, insulated termination point for up to four cables sized from #12 AWG to 350 kcmil. Designed for industrial power distribution systems, this connector bar ensures secure, maintenance-free connections while maintaining electrical isolation between circuits. The 350 Series construction supports high-current applications, making it ideal for switchgear, panelboards, and motor control centers where space and safety are critical. The insulated design prevents accidental short circuits and reduces the risk of arcing during installation or maintenance. Compatible with copper or aluminum conductors, it accommodates a wide range of wire sizes without additional adapters. The connector bar’s modular design allows for easy expansion or reconfiguration as system requirements evolve. Backed by ABB’s engineering and compliance with industry standards, the PSB4359C delivers long-term performance in harsh environments, including high-temperature or vibration-prone locations.
  • 4-port insulated pedestal connector bar for cables #12-350 AWG
  • Type PSB-C, 350 Series construction for high-current applications
  • Secure, maintenance-free connections with electrical isolation
  • Compact design for switchgear, panelboards, and motor control centers

Specifications

Color
Clear Cover
Insulation
Yes
Material
Bars - Aluminum Alloy 6061-T6, Cover Clear Plastic
Poles
4
Series
PSB-C
Size
2.51 inches high x 2.12 inches wide x 4.03 inches long
Size
350 Series
Special Features
Port-separated clear plastic cover provides insulation against accidental contact during insulation. Dual Rated for use with Aluminum or Coper Conductors. Contax Oxide Inhibitor standard in all Conductor Ports
Standard
ANSI C119.4
Type
Pedestal Connectors & Covers
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.6600 L
Package Weight (Metric)
0.2990 kg
Insulated Pedestal Connector Bar - Type PSB-C, 500 Series, Number or Ports 8, Cable Range #10-500

PSB8559C

Insulated Pedestal Connector Bar - Type PSB-C, 500 Series, Number or Ports 8, Cable Range #10-500
Lighting Panelboard - Merchand. Pro-Stock Breaker Kits. Pro-Stock Merch Panelboards. MLR18351

MLR1

Lighting Panelboard - Merchand. Pro-Stock Breaker Kits. Pro-Stock Merch Panelboards. MLR18351
15kV Single-Piece Cable Terminator (housing only), Insulation Diameter Range .640-1.070 inches

PCT1-4

15kV Single-Piece Cable Terminator (housing only), Insulation Diameter Range .640-1.070 inches
25kV Single-Piece Cable Terminator (housing only), Insulation Diameter Range .830-1.180 inches

PCT2-4

25kV Single-Piece Cable Terminator (housing only), Insulation Diameter Range .830-1.180 inches
3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches EB .495-.585

3C35MTGOEBN4GK2T

3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches EB .495-.585
3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches GA .775-.885

3C35MTGOGAN4GK2T

3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches GA .775-.885
Connector Bus Assembly, Set Screw Type for Vault Installation - 650 AMP Max, 6 Cable Junction, Wire Range #12 - 350 kcmil, Contax Filled

PSB6359-1

Connector Bus Assembly, Set Screw Type for Vault Installation - 650 AMP Max, 6 Cable Junction, Wire Range #12 - 350 kcmil, Contax Filled
Aluminum 350kcmil Bus Bar - 4 Wire Ports, Set Screw, With Mounting Holes

PSB4359-1

Aluminum 350kcmil Bus Bar - 4 Wire Ports, Set Screw, With Mounting Holes

Frequently Asked Questions

What cable sizes does the PSB4359C support?

The connector bar accommodates cables ranging from #12 AWG to 350 kcmil.

How many ports does the PSB4359C have?

The PSB4359C features four ports for cable connections.

Is the PSB4359C insulated?

Yes, the pedestal connector bar features an insulated design to prevent short circuits.
