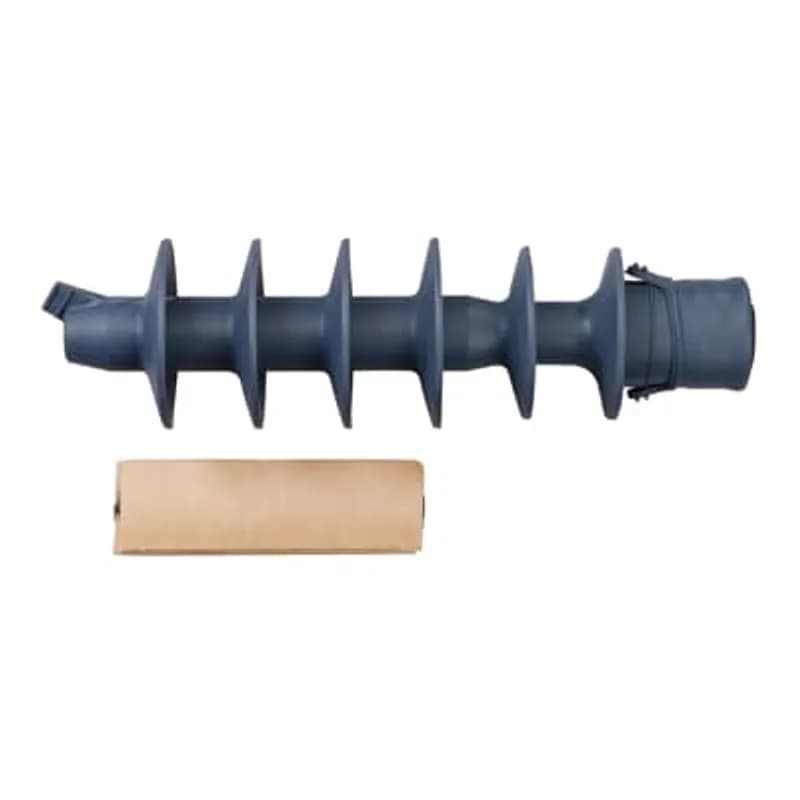

ABB - Installation Products PCT2-4 - 25kV Single-Piece Cable Terminator (housing only), Insulation Diameter Range .830-1.180 inches

ABB Installation Products PCT2-4 25kV Single-Piece Cable Terminator (housing only), Insulation Diameter Range .830-1.180…

UPC: 783786660681


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PCT2-4 is a single-piece cable terminator housing designed for 25kV applications. This component, identified by SKU PCT2-4 from ABB's Installation Products division, is specifically engineered to accommodate insulation diameters ranging from 0.830 to 1.180 inches. As a housing-only unit, it provides the essential protective enclosure for the termination of high-voltage cables, ensuring a secure and insulated connection point. Its single-piece construction simplifies installation and reduces potential points of failure compared to multi-component designs. The PCT2-4 is suitable for use in electrical distribution systems where reliable cable termination is critical for operational integrity and safety. The UNSPSC code for this product is 39121446, categorizing it within the electrical connectors and accessories segment. While the country of origin is not specified, ABB's reputation for quality in electrical infrastructure components suggests a product built to meet stringent industry standards. This terminator housing is a fundamental element in ensuring the safe and efficient management of high-voltage power transmission and distribution networks.
  • 25kV Single-Piece Cable Terminator Housing
  • Designed for insulation diameters from 0.830 to 1.180 inches
  • ABB Installation Products division
  • SKU: PCT2-4
  • UNSPSC Code: 39121446

Specifications

Application
Outdoor
Color
Dark Gray
Insulation
Yes
Material
Silicone Rubber
Series
PCT2
Size
Insulation Diameter Range .830-1.180 inches
Special Features
Housing Only
Type
Terminator
Voltage Rating
25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5200 L
Package Weight (Metric)
0.2360 kg
15kV Single-Piece Cable Terminator (housing only), Insulation Diameter Range .640-1.070 inches

PCT1-4

15kV Single-Piece Cable Terminator (housing only), Insulation Diameter Range .640-1.070 inches
3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches EB .495-.585

3C35MTGOEBN4GK2T

3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches EB .495-.585
3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches GA .775-.885

3C35MTGOGAN4GK2T

3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches GA .775-.885
Connector Bus Assembly, Set Screw Type for Vault Installation - 650 AMP Max, 6 Cable Junction, Wire Range #12 - 350 kcmil, Contax Filled

PSB6359-1

Connector Bus Assembly, Set Screw Type for Vault Installation - 650 AMP Max, 6 Cable Junction, Wire Range #12 - 350 kcmil, Contax Filled
Aluminum 350kcmil Bus Bar - 4 Wire Ports, Set Screw, With Mounting Holes

PSB4359-1

Aluminum 350kcmil Bus Bar - 4 Wire Ports, Set Screw, With Mounting Holes
Insulated Pedestal Connector Bar - Type PSB-C, 350 Series, Number or Ports 8, Cable Range #12-350

PSB8359C

Insulated Pedestal Connector Bar - Type PSB-C, 350 Series, Number or Ports 8, Cable Range #12-350
Bronze Insulated Bus Connector Bolted Type - 3 Sealed Terminals for #2 Stranded - 350 kcmil, 1 Sealed Street Light Terminal #12 solid - 4 stranded, contains oxide inhibitor

UPB33SLGP

Bronze Insulated Bus Connector Bolted Type - 3 Sealed Terminals for #2 Stranded - 350 kcmil, 1 Sealed Street Light Terminal #12 solid - 4 stranded, contains oxide inhibitor
Connector Bus Assembly, Set Screw Type for Vault Installation - 650 AMP Max, 6 Cable Junction, Wire Range #10 - 500 kcmil, Contax Filled

PSB6559-1

Connector Bus Assembly, Set Screw Type for Vault Installation - 650 AMP Max, 6 Cable Junction, Wire Range #10 - 500 kcmil, Contax Filled

Frequently Asked Questions

What voltage rating does the PCT2-4 support?

The ABB PCT2-4 is rated for 25kV applications.

Is this a complete cable terminator or just the housing?

The ABB PCT2-4 is a single-piece cable terminator housing only.
