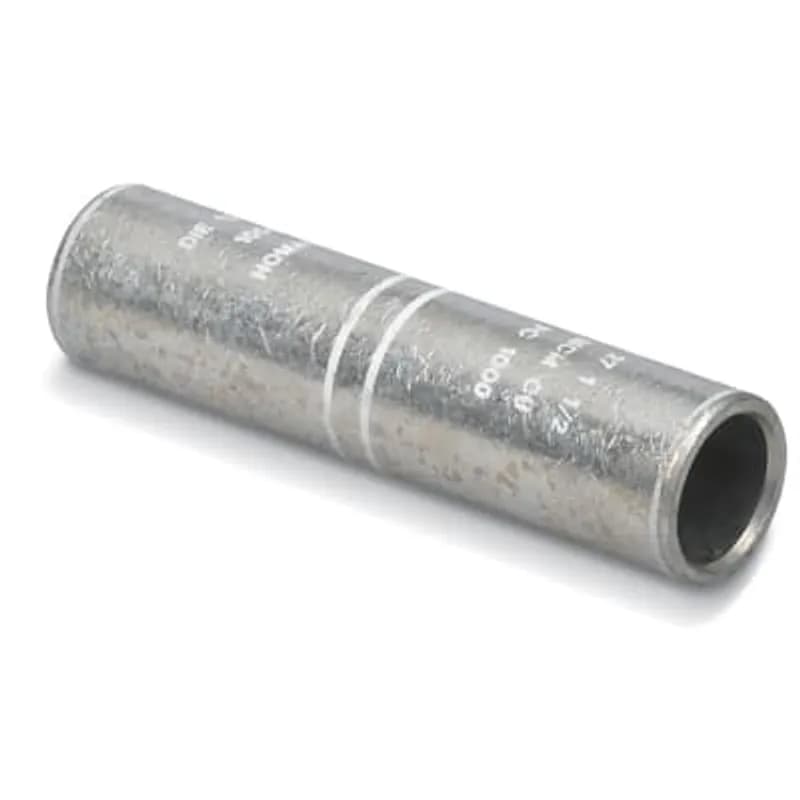

ABB - Installation Products PC 300 - Tin Plated Copper Straight Splice with Oil Stop for Wire Size 300 kcmil Copper. Dies 781, 17, TV, 66. Length approx 4-1/8 inch.

ABB Installation Products PC 300 Tin Plated Copper Straight Splice with Oil Stop for Wire Size 300 kcmil Copper. Dies…

UPC: 075114374514

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PC 300 is a straight splice connector designed for reliable joining of 300 kcmil copper conductors. Manufactured by ABB - Installation Products, this splice ensures a secure and durable electrical connection. Constructed from high-quality tin-plated copper, it offers excellent conductivity and corrosion resistance, crucial for maintaining signal integrity and preventing degradation over time. The integrated oil stop feature is a critical design element, preventing the migration of insulating oils within the conductor, which is particularly important in applications where oil-filled cables are utilized. This design helps maintain the integrity of the insulation and prevents potential failures caused by oil contamination. The PC 300 splice has a nominal length of approximately 4-1/8 inches, providing ample surface area for a robust crimp connection. It is compatible with specific die sets, including 781, 17, TV, and 66, ensuring proper tooling is available for installation. This connector is suitable for industrial electrical installations requiring a dependable splice for large gauge copper wiring. The Series PC designation indicates its place within ABB's product line for electrical connectors. The UNSPSC code 39121449 categorizes this product under electrical connectors and splices. Ensure proper crimping procedures are followed with the specified dies for optimal performance and longevity of the connection. This splice is a direct solution for terminating or extending 300 kcmil copper conductors in industrial settings.
  • Tin Plated Copper construction for conductivity and corrosion resistance
  • Designed for 300 kcmil copper wire size
  • Integrated oil stop feature to prevent oil migration
  • Approximate length of 4-1/8 inches
  • Compatible with dies 781, 17, TV, and 66

Specifications

Application
Provide High Conductivity Connections and Minimiz Voltage Drops
Conductor Range
300 kcmil
Connection
Compression
Finish
Tin Plated
Insulation
None
Material
Copper
Number Of Conductors
2
Size
Length 4-1/8 inch x .813 inch Diameter
Special Features
Solid Center Stop Prevents Oil Seepage. Tin Plated to Resist Corrosion
Type
Compression Splice
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2700 L
Package Weight (Metric)
0.1230 kg
