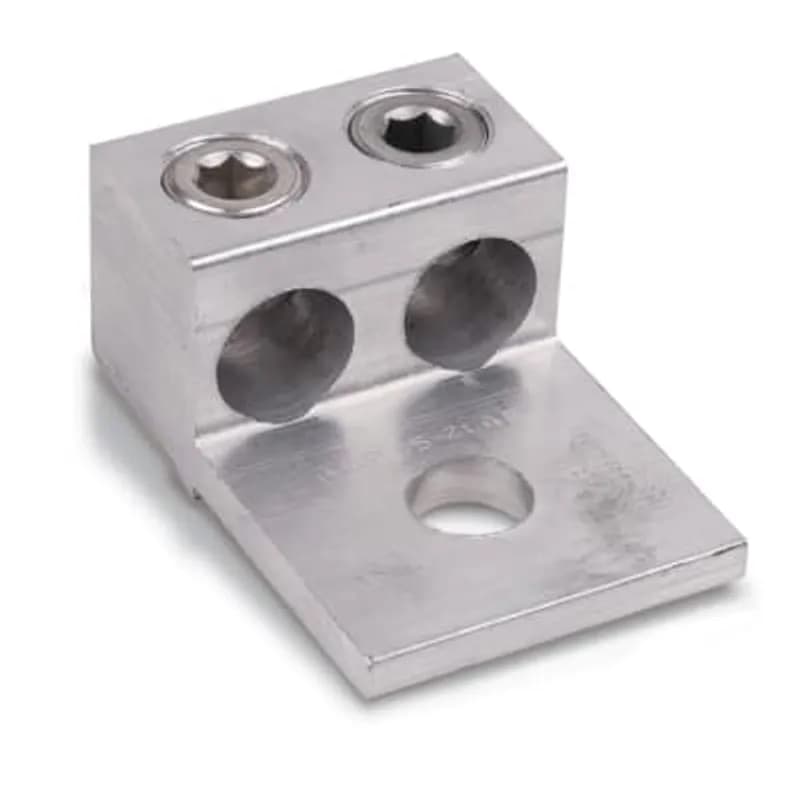

ABB - Installation Products AD 600 L - Aluminum Mechanical Lug, #4 - 600 kcmil, Dual Rated Copper and Aluminum, 90 Degree C, 1/2 Inch Bolt hole, Two Barrel

ABB Installation Products AD 600 L Aluminum Mechanical Lug, #4 - 600 kcmil, Dual Rated Copper and Aluminum, 90 Degree C…

UPC: 783786692125


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 2100

Multiplier: 2100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AD 600 L Aluminum Mechanical Lug (SKU: AD 600 L) is a dual-rated copper and aluminum mechanical lug designed for terminating #4 to 600 kcmil conductors. Rated for 90°C continuous operation, this lug features a 1/2-inch bolt hole and a two-barrel design for secure, vibration-resistant connections. The aluminum construction ensures compatibility with both copper and aluminum conductors, reducing inventory needs while maintaining reliable performance in industrial and commercial electrical systems. This lug is ideal for applications requiring high-current terminations, such as motor control centers, switchgear, panelboards, and distribution equipment. The two-barrel design accommodates a wide range of conductor sizes, eliminating the need for multiple lug sizes in inventory. With a 1/2-inch bolt hole, it integrates seamlessly with standard hardware, simplifying installation and maintenance.
  • Dual-rated for copper and aluminum conductors (#4 to 600 kcmil)
  • 1/2-inch bolt hole for standard hardware compatibility
  • Two-barrel design for secure, vibration-resistant connections
  • Manufactured by ABB - Installation Products for industrial reliability

Specifications

Bolt Size
1/2 in
Material
Aluminum
Type
Aluminum Mechanical Lug
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5300 L
Package Weight (Metric)
0.2400 kg
