ABB - Installation Products PAC79 - Aluminum Type PAC - Aluminum Parallel Groove Clamp with Cast Copper Liner for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-2/0 Str., 1/0-6 AR AL/CU, Tap: ASCR 1/0 Str.-8 Sol. ALCU, Prefilled with Oxide Inhibitor.
ABB - Installation Products

PAC79

UPC: 783786330195

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB Installation Products SKU PAC79 is an Aluminum Type PAC Parallel Groove Clamp. This clamp is engineered for reliable electrical connections in overhead and underground distribution systems. It features a cast copper liner, specifically designed to accommodate a wide range of conductor sizes and types, ensuring optimal contact and conductivity. The main conductor range supported includes 336.4-1/0 AWG ASCR, 1/0-6 AR ASCR, 400-2/0 Stranded Aluminum, and 1/0-6 AWG Aluminum/Copper (AL/CU). For tap connections, it is compatible with ASCR conductors from 1/0 Stranded to 8 AWG Solid, as well as AL/CU conductors. Each clamp is prefilled with an oxide inhibitor, a crucial step in preventing corrosion and maintaining low resistance contact over the lifespan of the connection, particularly important when joining dissimilar metals like aluminum and copper. This product is essential for utility and industrial applications requiring secure and durable conductor terminations. Its robust construction and material composition are suited for the demanding conditions encountered in power transmission and distribution networks. The UNSPSC code for this product is 39121449.
  • Aluminum Type PAC Parallel Groove Clamp
  • Cast Copper Liner for enhanced conductivity
  • Main Conductor Range: 336.4-1/0 AWG ASCR, 1/0-6 AR ASCR, 400-2/0 Str., 1/0-6 AR AL/CU
  • Tap Conductor Range: ASCR 1/0 Str.-8 Sol. ALCU
  • Prefilled with Oxide Inhibitor for corrosion prevention

Specifications

Application
Securing Conductors
Conductor Range
Main: 336.4 to 1/0 ACSR , 1/0 to #6 Armored Rod ACSR , 400 kmcil to 2/0 STR , 1/0 to #6 Armored Rod AL. Tap: 1/0 STR CU to #8 SOL CU
Connection
Bolted
Environmental Conditions
All Seasons / Conditions
Insulation
None
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Height 2-15/32 X Length 1-5/8 X Width 1-7/8 inch
Special Features
Most Corrosion-Resistant Groove Clamp Ever. Pressure-Cast Aluminum Body Effectively Seals Out Moisture and Resists Corrosion. Clamp Seperates Conductors to Reduce the Possibility of Galvanic Corrosion
Type
Parallel-Groove Clamp
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2900 L
Package Weight (Metric)
0.1320 kg
GT-2744

100-8010

GT-2744
The TORK DLC400BP SunSet 365-Day Astronomic Digital Timer is designed for providing total control over 4 different output channels in indoor or outdoor applications. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features four output channel, different settings for holidays and seasons and a 6-month battery backup. Designed for commercial applications including lighting, HVAC equipment, signage, store windows and security or parking lot lights.

DLC400BP

The TORK DLC400BP SunSet 365-Day Astronomic Digital Timer is designed for providing total control over 4 different output channels in indoor or outdoor applications. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features four output channel, different settings for holidays and seasons and a 6-month battery backup. Designed for commercial applications including lighting, HVAC equipment, signage, store windows and security or parking lot lights.
INTERFACE MODULE KIT HMI-01

HMI-01

INTERFACE MODULE KIT HMI-01
The FSO 12 safety functions module supports the following functions according to EN/IEC 61800-5-2:2007: Safe Torque Off (STO) (standard feature of the drive), Safe Brake Control (SBC), Safe Stop 1 (SS1), and, Safely-Limited Speed (SLS). Additional safety functions supported but not specified in EN/IEC 61800-5-2:2007: Safe Stop Emergency (SSE), Safe Maximum Speed (SMS), and, Prevention of Unexpected Start-up (POUS). The FSO 12 does not operate the drive, it only monitors the actions of the drive and commands safety functions to be executed. The request for safety functions can come from an external safety system, safety PLC or from an FSO 12 internal fault. The FSO module monitors that the drive operates within the configured limits, and if the limits are exceeded, activates the STO function in the drive within the response time. Activation of the drive STO function removes the torque and, if so configured, applies the brake. Commissioning and configuration of the safety functions requires Drive composer pro (DCPT-01-KIT). NOTE: The Safe Torque Off (STO) function does not disconnect the voltage of the main and auxiliary circuits from the drive. NOTE: This module does not support an encoder in safety applications.

FSO-12-KIT

The FSO 12 safety functions module supports the following functions according to EN/IEC 61800-5-2:2007: Safe Torque Off (STO) (standard feature of the drive), Safe Brake Control (SBC), Safe Stop 1 (SS1), and, Safely-Limited Speed (SLS). Additional safety functions supported but not specified in EN/IEC 61800-5-2:2007: Safe Stop Emergency (SSE), Safe Maximum Speed (SMS), and, Prevention of Unexpected Start-up (POUS). The FSO 12 does not operate the drive, it only monitors the actions of the drive and commands safety functions to be executed. The request for safety functions can come from an external safety system, safety PLC or from an FSO 12 internal fault. The FSO module monitors that the drive operates within the configured limits, and if the limits are exceeded, activates the STO function in the drive within the response time. Activation of the drive STO function removes the torque and, if so configured, applies the brake. Commissioning and configuration of the safety functions requires Drive composer pro (DCPT-01-KIT). NOTE: The Safe Torque Off (STO) function does not disconnect the voltage of the main and auxiliary circuits from the drive. NOTE: This module does not support an encoder in safety applications.

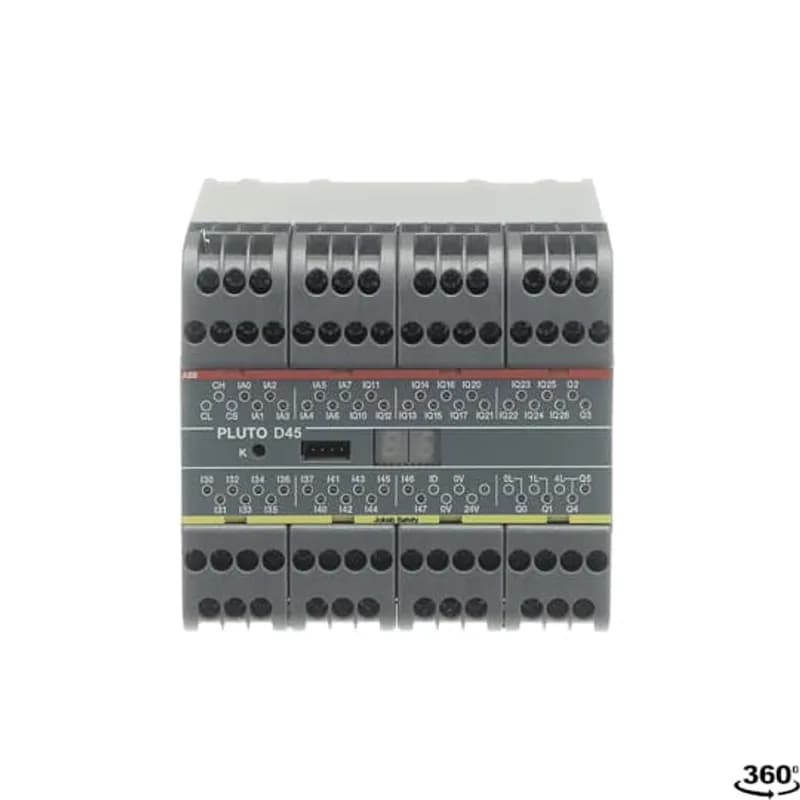

Safety PLC with Pluto safety bus and analogue inputs. Totally 45 I/O: 8 combined failsafe analogue and digital inputs + 16 failsafe inputs + 15 non-failsafe outputs/failsafe inputs + 4 individually failsafe relay outputs + 2 individually failsafe transistor outputs. Analogue input range 0-10V/4-20mA.
