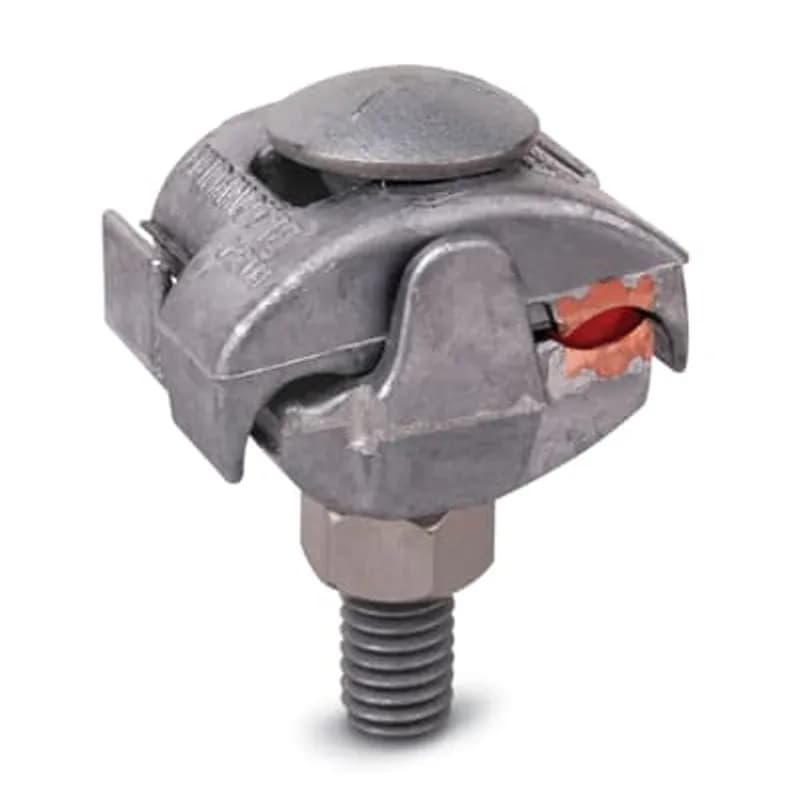

ABB - Installation Products PAC7 - Aluminum Type PAC - Aluminum Parallel Groove Clamp with Cast Copper Liner for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-2/0 Str., 1/0-6 AR AL/CU, Tap: ASCR 1/0 Str.-8 Sol. ALCU

ABB Installation Products PAC7 Aluminum Type PAC - Aluminum Parallel Groove Clamp with Cast Copper Liner for Wire Range…

UPC: 783786330164


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PAC7 (SKU: PAC7) is an Aluminum Parallel Groove Clamp with a cast copper liner, engineered for secure and reliable electrical connections in overhead transmission and distribution systems. This clamp is dual-rated for aluminum, ACSR (Aerial Strand Conductor), and copper conductors, making it ideal for utility pole installations, substation connections, and overhead line taps where parallel conductor configurations are required. Key specifications include a main wire range of 336.4-1/0 to 1/0-6 ASCR and tap connections from 1/0 Str. to 8 Sol. ALCU (Aluminum/Copper). The cast copper liner ensures low contact resistance and long-term corrosion resistance, critical for high-current applications. The pressure-cast aluminum body effectively seals out moisture and resists corrosion, while the clamp’s design separates conductors to reduce the possibility of galvanic corrosion. The PAC7 features a high-strength, heat-treated cast aluminum alloy body with a 3/8" galvanized steel carriage bolt, nut, and lockwasher included for secure fastening. The clamp’s dimensions are 2 15/32" (H) x 1 5/8" (W) x 1 7/8" (L), optimized for overhead applications. Typical applications include utility pole installations, substation connections, and overhead line taps. The clamp’s design allows for easy installation with standard tools, reducing labor time while ensuring a tight, vibration-resistant connection. The PAC7 is available in a standard configuration (PAC7) or prefilled with oxide inhibitor (PAC79) to prevent oxidation on copper-to-aluminum connections.
  • Dual-rated for aluminum, ACSR, and copper conductors
  • Cast copper liner ensures low contact resistance and corrosion resistance
  • Pressure-cast aluminum body resists moisture and galvanic corrosion
  • Main wire range: 336.4-1/0 to 1/0-6 ASCR; Tap range: 1/0 Str. to 8 Sol. ALCU
  • Includes 3/8" galvanized steel carriage bolt, nut, and lockwasher
  • Available prefilled with oxide inhibitor (PAC79) to prevent oxidation

Specifications

Application
Securing Conductors
Conductor Range
Main: 336.4 to 1/0 ACSR , 1/0 to #6 Armored Rod ACSR , 400 kmcil to 2/0 STR , 1/0 to #6 Armored Rod AL. Tap: 1/0 STR CU to #8 SOL CU
Connection
Bolted
Environmental Conditions
All Seasons / Conditions
Insulation
None
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Height 2-15/32 X Length 1-5/8 X Width 1-7/8 inch
Special Features
Most Corrosion-Resistant Groove Clamp Ever. Pressure-Cast Aluminum Body Effectively Seals Out Moisture and Resists Corrosion. Clamp Seperates Conductors to Reduce the Possibility of Galvanic Corrosion
Standard
RUS Listed
Type
Parallel-Groove Clamp
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2600 L
Package Weight (Metric)
0.1180 kg
Parallel Groove Clamp, Hex Head Bolt, Contax Filled, Aluminum and Copper, Conductor Range Main 3336 4-1/0 ACSR 400 kcmil - 2/0 STR 1/0 - 6 AR TAP 1/0 STR - 8 Solid Copper

PAC793

Parallel Groove Clamp, Hex Head Bolt, Contax Filled, Aluminum and Copper, Conductor Range Main 3336 4-1/0 ACSR 400 kcmil - 2/0 STR 1/0 - 6 AR TAP 1/0 STR - 8 Solid Copper
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Aluminum splice, type SA, tin plated, 3/0 AWG.

SA3/0-5

Aluminum splice, type SA, tin plated, 3/0 AWG.
Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 397.5 ACSR-3/0 str, 2/0-6 AR Tap: 3/0 ACSR-2 str, 6 AR

PAE3931-9-2

Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 397.5 ACSR-3/0 str, 2/0-6 AR Tap: 3/0 ACSR-2 str, 6 AR
Parallel Groove Clamp, Aluminum Hardware, Pre-filler with Contax Inhibitor, Conductor Range Main 2/0 ACSR - 8 Solid 6 AR, TAP 2/0 ACSR - 8 Solid 6 AR

PAE2121-79

Parallel Groove Clamp, Aluminum Hardware, Pre-filler with Contax Inhibitor, Conductor Range Main 2/0 ACSR - 8 Solid 6 AR, TAP 2/0 ACSR - 8 Solid 6 AR
Parallel Groove Clamp, Aluminum Hardware, Pre-filled with Contax Inhibitor, Conductor Range 397.5 ACSR - 3/0 Stranded 2/0 - 6 AR, TAP 397.5 ACSR - 3/0 Stranded 2/0 - 6 AR, 2-9/16 high x 2-+9/16 wide x 3-3/8 inch long

PAE3939-79-2

Parallel Groove Clamp, Aluminum Hardware, Pre-filled with Contax Inhibitor, Conductor Range 397.5 ACSR - 3/0 Stranded 2/0 - 6 AR, TAP 397.5 ACSR - 3/0 Stranded 2/0 - 6 AR, 2-9/16 high x 2-+9/16 wide x 3-3/8 inch long
Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 397.5 ACSR-3/0 Stranded, 2/0-6 AR Tap: 397.5 ACSR-3/0 Stranded, 2/0-6 AR

PAE3939-9-2

Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 397.5 ACSR-3/0 Stranded, 2/0-6 AR Tap: 397.5 ACSR-3/0 Stranded, 2/0-6 AR
Parallel Groove Clamp, Aluminum Hardware, Pre-filled with Contax Inhibitor, Conductor Range 4/0 ACSR - 2 Solid 4-6 AR, TAP 4/0 ACSR - 2 Solid 4 - 6 AR

PAE4141-79

Parallel Groove Clamp, Aluminum Hardware, Pre-filled with Contax Inhibitor, Conductor Range 4/0 ACSR - 2 Solid 4-6 AR, TAP 4/0 ACSR - 2 Solid 4 - 6 AR

Frequently Asked Questions

What is the tap conductor range for PAC7?

The tap conductor range for copper is 1/0 str.–#8 sol.

What is the main conductor range for PAC7?

For ACSR, the main conductor range is 336.4–1/0 and 1/0–#6 AR. For aluminum, it's 400–2/0 str. and 1/0–#6 AR.

What types of conductors is PAC7 compatible with?

The PAC7 is compatible with ACSR and aluminum for the main conductor, and copper for the tap conductor.

What is the PAC7 connector made of?

The PAC7 connector features a pressure-cast aluminum body and includes a copper liner. This design helps seal out moisture and resist corrosion.

What are the dimensions of the PAC7 clamp?

The PAC7 clamp has a height (H) of 215⁄32 in, a width (W) of 15⁄8 in, and a length (L) of 17⁄8 in.

Is a prefilled version of the PAC7 connector available?

Yes, the PAC79 is the prefilled catalog number for the PAC7 clamp.

What is the purpose of the PAC clamp's aluminum body?

The pressure-cast aluminum body of the PAC clamp effectively seals out moisture and resists corrosion.

How can I get a hex-head bolt option for PAC7?

To get a hex-head bolt option, add the “-3” suffix to the PAC7 catalog number.

Is the PAC7 connector RUS Listed?

Yes, the PAC7 connector is RUS Listed.
