Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*

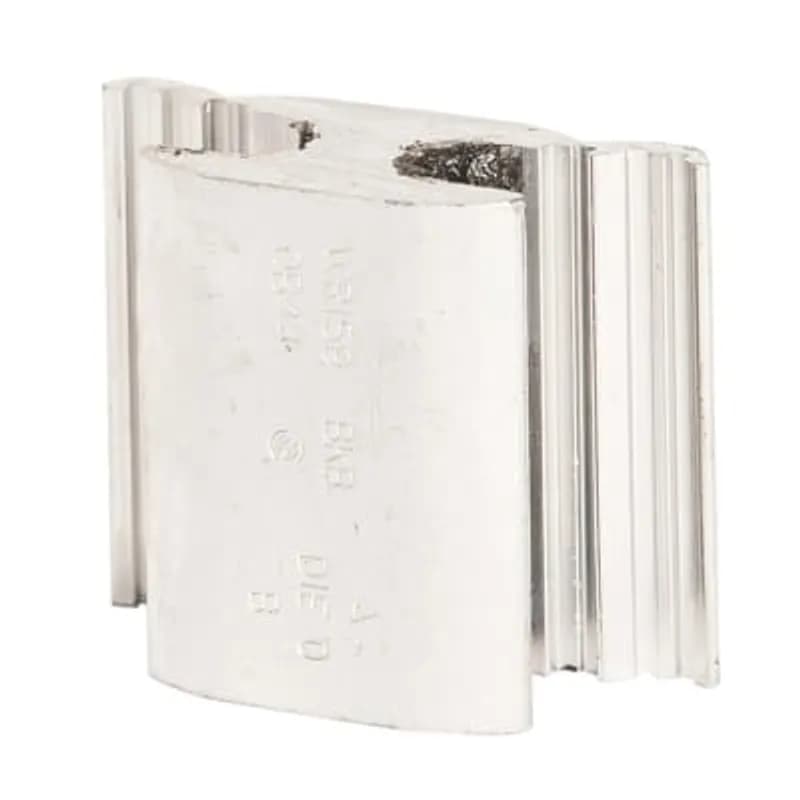

Overview
- Durable aluminum construction for conductivity and corrosion resistance
- 1-1/2 inch length for secure conductor engagement
- Compression connection type for reliable electrical joints
- Designed for aluminum conductor tap connections
- ABB - Installation Products quality and reliability
Specifications
Connection | Compression |
Finish | Uncoated |
Housing Material | Aluminum |
Housing Material | Aluminium |
Insulation | None |
Size | Length 1-1/2 inches |
Special Features | Pre-filled with oxide inhibitor. Prevents oxidation and keeps out moisture |
Type | H-Type Compression Tap Connector |
Wire Size | Main: STR #1 to SOL #6 AWG , Tap: STR #1 to SOL #6 AWG |
Package Dimensions (L x W x H) | 2.25 IN x 5 IN x 9.75 IN |
Package Dimensions (L x W x H) | 5.715 cm x 12.7 cm x 24.765 cm |
Package Weight (Imperial) | 0.0900 L |
Package Weight (Metric) | 0.0410 kg |
IPLMD350-6
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
L 8-38
Tin Plated Copper One-Hole Straight NEMA Lugs. wire size # 8 Stranded CU. Installing Dies 21, 236, 171. Length 2 inch. Pad 41/64 inch wide x 3/4 inch long x 1/32 inch thick. (1) 13/32 inch hole. Barrel 15/16 inch. CSA. UL listed.
OB 103
Aluminum H-Type Compression Connectors, length 1-1/2 inch, die O. .398-.162 inch on one end, .332-.162 inch on the otherL 750-48
Tin Plated Copper One-Hole Straight NEMA Lugs. wire size 750 kcmil CU. Installing Dies 106, 1 1/8-2. Length 5-5/8 inch. Pad 1-29/32 inch wide x 1-15/16 inch long x 1/4 inch thick. (1) 9/16 inch hole. Barrel 2-7/8 inch. CSA. UL listed.
OB 22
Aluminum H-Type Compression Connectors, length 1-1/2 inch, die O..325-.162 inch on one side, .325-.162 on the other sideFrequently Asked Questions
What material is the ABB OB 1 connector made from?
The ABB OB 1 connector is constructed from aluminum.
What is the length of the OB 1 H-Tap connector?
The OB 1 H-Tap connector has a length of 1-1/2 inches.
What type of connection does the OB 1 connector use?
The OB 1 connector utilizes a compression connection type.
What is the series of this ABB connector?
This ABB connector belongs to the OB 1 series.
What is the manufacturer of the OB 1 connector?
The manufacturer of the OB 1 connector is ABB - Installation Products.
