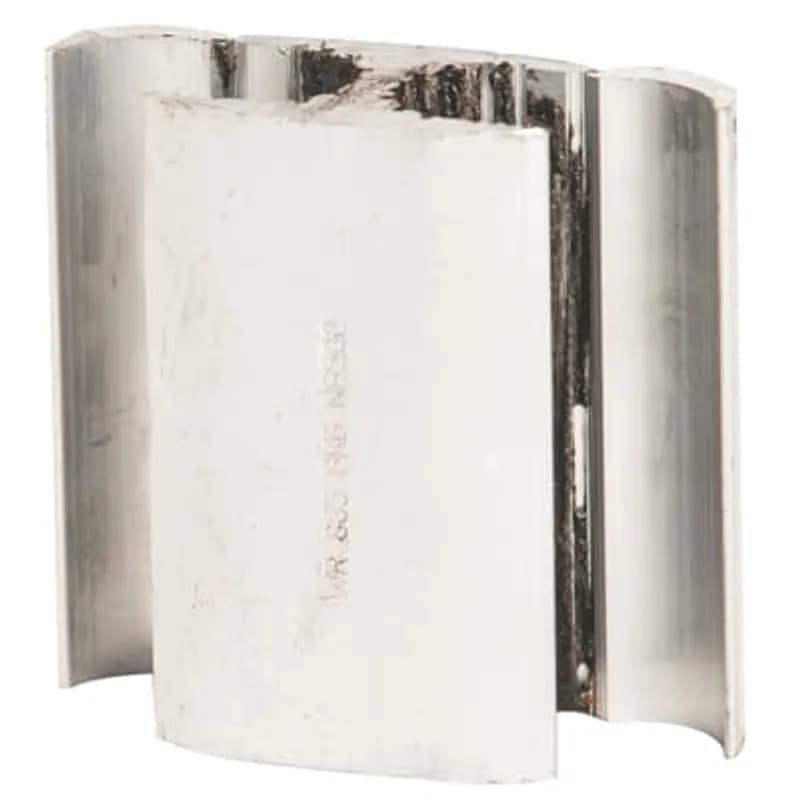

ABB - Installation Products NB 60020 - Aluminum H-Type Compression Connectors, length 2-1/8 inch, die N. Groove A and B have openings that go in the opposite directions. Style 2 on Catalog page.

ABB Installation Products NB 60020 Aluminum H-Type Compression Connectors, length 2-1/8 inch, die N. Groove A and B have…

UPC: 783786740123


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB NB 60020 is an Aluminum H-Type Compression Connector, identified as Style 2 in the ABB Installation Products catalog. This connector is designed for specific electrical joining applications requiring a robust and reliable aluminum connection. Its H-type configuration facilitates a secure mechanical and electrical bond between conductors. The connector measures 2-1/8 inches in length and utilizes die N for its compression mechanism. A key design feature is the opposing directional openings for grooves A and B, which allows for a specific conductor entry and alignment strategy, crucial for maintaining connection integrity and simplifying installation in certain configurations. This product is manufactured by ABB, a recognized leader in electrical installation products, ensuring adherence to quality standards. The UNSPSC code for this product is 39121409, categorizing it under electrical connectors. While the country of origin is not specified, ABB's global manufacturing footprint suggests potential for diverse sourcing. This connector is suitable for applications where aluminum conductors need to be joined with a compression-style fitting, offering a durable and efficient solution for electrical infrastructure and industrial systems. Its specific design with opposing groove openings is intended to optimize the connection process and ensure a stable electrical path.
  • ABB Aluminum H-Type Compression Connector
  • 2-1/8 inch length
  • Utilizes Die N for compression
  • Style 2 configuration
  • Opposing directional openings for grooves A and B

Specifications

Application
Used to Dead End Aluminum, ACSR or Aluminum Alloy Conductors
Connection
Compression
Environmental Conditions
All Seasons / Conditions
Finish
Uncoated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Mounting
None
Number Of Conductors
2
Size
Length 2-1/8 inches
Special Features
Pre-filled with oxide inhibitor. Prevents oxidation and keeps out moisture
Standard
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
H-Type Compression Tap Connector
Wire Size
Groove A: 556.5(24/7) to 266.8(18/1) ACSR or 250(37) STR kcmil , Groove B: 2/0(7/1) to #6(7) ACSR or 2/0(19) to #6(7) STR or 2/0 to #6 SOL AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3000 L
Package Weight (Metric)
0.1360 kg
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Connector, Two-Way, 2/0 Aluminum to 1/0 Copper

269-31499-10

Connector, Two-Way, 2/0 Aluminum to 1/0 Copper
Aluminum H-Type Compression Connectors, length 1-1/2 inch, die O. .398-.162 inch on one end, .332-.162 inch on the other

OB 103

Aluminum H-Type Compression Connectors, length 1-1/2 inch, die O. .398-.162 inch on one end, .332-.162 inch on the other
Tin Plated Copper One-Hole Straight NEMA Lugs. wire size 750 kcmil CU. Installing Dies 106, 1 1/8-2. Length 5-5/8 inch. Pad 1-29/32 inch wide x 1-15/16 inch long x 1/4 inch thick. (1) 9/16 inch hole. Barrel 2-7/8 inch. CSA. UL listed.

L 750-48

Tin Plated Copper One-Hole Straight NEMA Lugs. wire size 750 kcmil CU. Installing Dies 106, 1 1/8-2. Length 5-5/8 inch. Pad 1-29/32 inch wide x 1-15/16 inch long x 1/4 inch thick. (1) 9/16 inch hole. Barrel 2-7/8 inch. CSA. UL listed.
Aluminum H-Type Compression Connectors, length 2 inch, die N.

NB 50040

Aluminum H-Type Compression Connectors, length 2 inch, die N.
Aluminum H-Type Compression Connectors, length 1-3/4 inch, die O.

OB 2

Aluminum H-Type Compression Connectors, length 1-3/4 inch, die O.
Aluminum H-Type Compression Connectors, length 1-1/2 inch, die O..325-.162 inch on one side, .325-.162 on the other side

OB 22

Aluminum H-Type Compression Connectors, length 1-1/2 inch, die O..325-.162 inch on one side, .325-.162 on the other side
Aluminum Pin Terminals, 10 Solid, 1/0 ACSR, decimal range .102-.398, Copper Pin size 2.

PTA 1/0

Aluminum Pin Terminals, 10 Solid, 1/0 ACSR, decimal range .102-.398, Copper Pin size 2.
