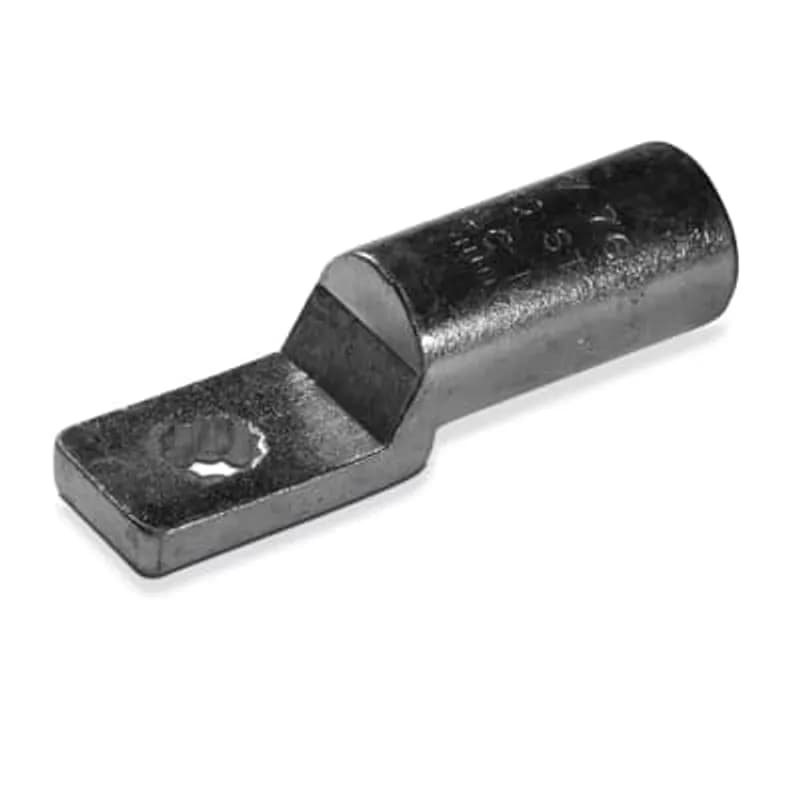

ABB Installation Products MSL 500 Tin Plated Aluminum Meter Socket Lug - Star hole, 500 kcmil, installing dies 106A, 300…
UPC: 783786739950
Documents & Media
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Tin Plated Aluminum construction for conductivity and corrosion resistance
- Designed for 500 kcmil conductors
- Star hole configuration compatible with installing dies 106A, 300, 317
- Includes oxide inhibitor and pink cap for identification
- Pad dimensions: 1-3/4" W x 1-5/16" L x 29/64" T
Specifications
Application | Dual-Rated, Corrosion-Resistant Lug Available with Star Hole |
Connection | Compression |
Finish | Tin Plated |
Housing Material | Aluminum |
Housing Material | Aluminium |
Size | 1-3/4 inch wide X 4-7/8 inch long |
Special Features | Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. Tin-Plated to Resist Corrosion |
Type | Compression Lug Star Hole Meter Socket |
Wire Size | 500 kcmil |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
AL 500 NLTN
Tin Plated Aluminum Compression Lug with Left Hand Configuration, 477-500 kcmil, 600 Compact AL-CU, 397.5 (26/7) 477 (18/1), Dies 1 5/16, 106A, 300, 317, 14A, 15A. Two Hole NEMA Pad, Length 5.815 inches, Barrel 2-9/16 inches, Pad 1-3/4 inch wide, 4-1/8 inch from End of Pad to side of Barrel x 29/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch spacing. Oxide Inhibitor. Pink Cap.
IPLMD350-6
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
RU 5
Flood-Seal Insulator only, EPDM Rubber, Fits conductor size 4-1/0 Aluminum Stranded, 4-1/0 ACSR, length 3-13/16 inch.
RSG 10-48
Aluminum One-Hole Lugs with Inner Shroud, Wire Size 10 Stranded, 8 Solid. Installing die 8A, TU. Length 3-3/8 inch. Pad 57/64 inch wide x 1-9/32 inch long x 13/64 inch thick. (1) 17/32 inch diameter hole. Barrel 1-7/8 inch. Oxide Inhibitor. Pink Cap.
RX 5 U 40
Flood-Seal Insulated Compression Pin Terminals, conductor size 4/0 Aluminum Stranded, 4/0 ACSR, 2/0 Copper Solid pin, installing dies - TX,76,249,840,11A , length 2 inch
SAK 2 N
Aluminum Two-Hole NEMA Lugs. Wire Range #1 - #2 Stranded, #2 ACSR AL-CU. Installing dies TX, 76, 249, 840, 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 1-15/16 inch. Oxide Inhibitor. Red Cap.SAK 1/0 N
Aluminum Two-Hole NEMA Lugs. Wire Range 1/0 Stranded - ACSR, 2/0 Compressed - Compact. Installing dies TX, 76, 249, 840, 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 23/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-31/32 inch long. Oxide Inhibitor. Yellow Cap Dual Rated for Aluminum and Copper ConductorsFrequently Asked Questions
What conductor size does the ABB MSL 500 lug support?
The ABB MSL 500 meter socket lug is designed to accommodate 500 kcmil conductors.
What installing dies are compatible with the MSL 500 lug?
The MSL 500 lug is compatible with installing dies 106A, 300, and 317.
What are the dimensions of the pad on the MSL 500 lug?
The pad on the MSL 500 lug measures 1-3/4 inches wide by 1-5/16 inches long and 29/64 inches thick.
Does the MSL 500 lug come with an oxide inhibitor?
Yes, the MSL 500 lug includes an oxide inhibitor to prevent oxidation.
What is the barrel size of the ABB MSL 500 lug?
The barrel of the ABB MSL 500 lug measures 2-3/16 inches.
