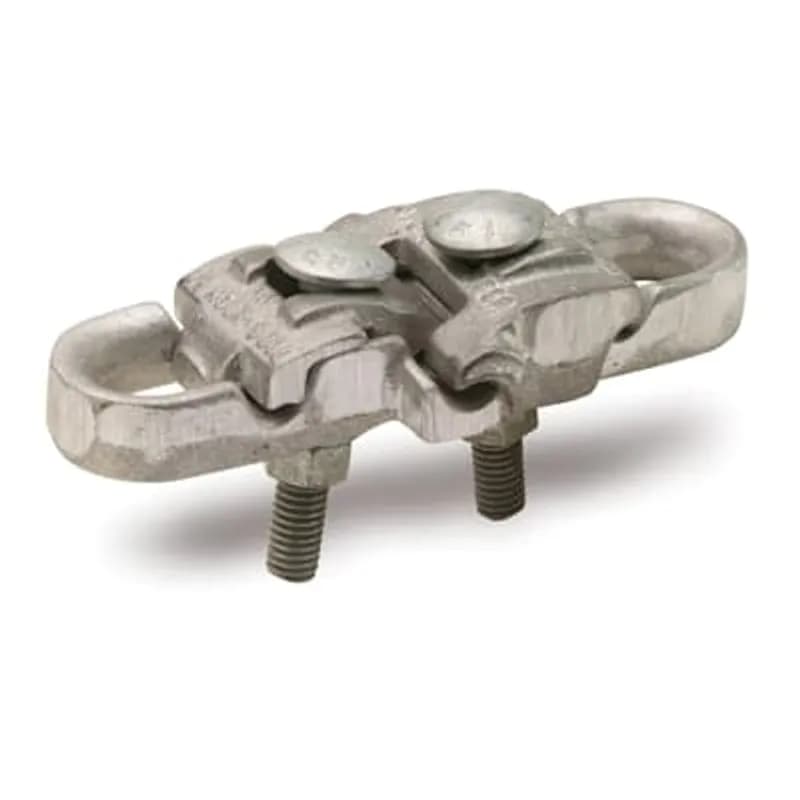

ABB Installation Products MS4 Aluminum Type MS - Neutral Span Clamp for Wire Range ACSR Main 4/0-4, Tap 1/0-6 AWG Main…
UPC: 783786849703
Documents & Media
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Accommodates ACSR main conductors from 4/0 to 4 AWG and tap conductors from 1/0 to 6 AWG
- Supports both stranded and solid conductor types for versatile applications
- Constructed from durable aluminum for corrosion resistance and lightweight durability
- Designed for secure mechanical and electrical connections in overhead distribution systems
- Requires only standard tools for streamlined installation
Specifications
Finish | Uncoated |
Insulation | None |
Material | Aluminum Alloy |
Number of Conductors | 2 |
Special Features | Combination Aerial Cable-Neutral Parallel-Groove Connector and Dead-Ending Clamp. Accommodates up to Four Service Drops |
Type | Neutral Span Clamp |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.5000 L |
Package Weight (Metric) | 0.2270 kg |
2024M
225A Stacked Neutral Bar, 4-14 AWG 20 Circuits, 1/0-14 AWG 4 Circuits & 350 MCM - 6 AWG Main Lug
6B89
Type 6B - 6 Bolt Clamp, One-piece Multi-Bolt Connectors for Wire Range Main 795 - 300 ACSR 800 - 336 AWG, TAP: 795 - 300 ACSR 800 - 336 AWG, Contax Filled, Aluminum, 5/8 inch Hex-Head Bolts - 4-3/4 inch long. Body 6-3/4 inch long X 3-1/4 inch wide.
DLC23
Type DLC - Single U-Bolt Aluminum Fittings for Wire Range Main AWG or kcmil 266.8 - 1/0 Stranded, ASCR Main 4/0 - 1, 2 - 6 AR. 2-3/8 inch wide X 2-7/8 inch long X 4 inch high.DLC25
Type DLC - Single U-Bolt Aluminum Fittings for Wire Range Main AWG or kcmil 397.5 - 1/0 Stranded, ASCR Main 336.4 - 1/0, 1/0 - 6 AR. 2-3/8 inch wide X 3-3/16 inch long X 4 inch highDLC2106
Type DLC - Single U-Bolt Aluminum Fittings for Wire Range Main AWG or kcmil 2/0 Stranded - 6 Solid, ASCR Main 2/0 - 6. 1-7/8 inch wide X 1-1/2 inch long X 3-1/4 inch high
TSL6SE10
Threaded Stud Transformer Connector - 1-14 Thread, 6 Positions, Wire Range 12 solid - 500 kcmil, 1 Street Light Terminal, use with LAC and CAL Lugs. Contains Oxide Inhibiting Compound.Frequently Asked Questions
What is the tap copper conductor range for the MS4?
The MS4 supports a copper conductor range for taps from 1/0 str. to #6 sol. AWG.
What is the main copper conductor range for the MS4?
The MS4 supports a main copper conductor range from 4/0 str. to #2 sol. AWG.
What is the tap ACSR conductor range for the MS4?
The MS4 supports an ACSR conductor range for taps from 1/0 to #6 AWG.
What is the main ACSR conductor range for the MS4?
The MS4 supports a main ACSR conductor range from 4/0 to #4 AWG.
What materials are used in the construction of the MS4?
The MS4 features high-strength, one-piece construction with castings made of high-strength aluminum alloy and hardware of galvanized steel.
Can taps be added to the MS4 after initial installation?
Yes, taps can be installed later, independently of existing connections, on the MS Neutral Span Clamp.
How many service drops can the MS4 accommodate?
The MS4 Neutral Span Clamp is designed to accommodate up to four service drops.
What is the MS4 Neutral Span Clamp?
The MS4 is an MS Neutral Span Clamp, which functions as a combination aerial cable-neutral parallel-groove connector and dead-ending clamp.
What is the tap copper conductor range for the MS4?
The MS4 supports a copper conductor range for taps from 1/0 str. to #6 sol. AWG.
What is the MS4 Neutral Span Clamp?
The MS4 is an MS Neutral Span Clamp, which functions as a combination aerial cable-neutral parallel-groove connector and dead-ending clamp.
