Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview

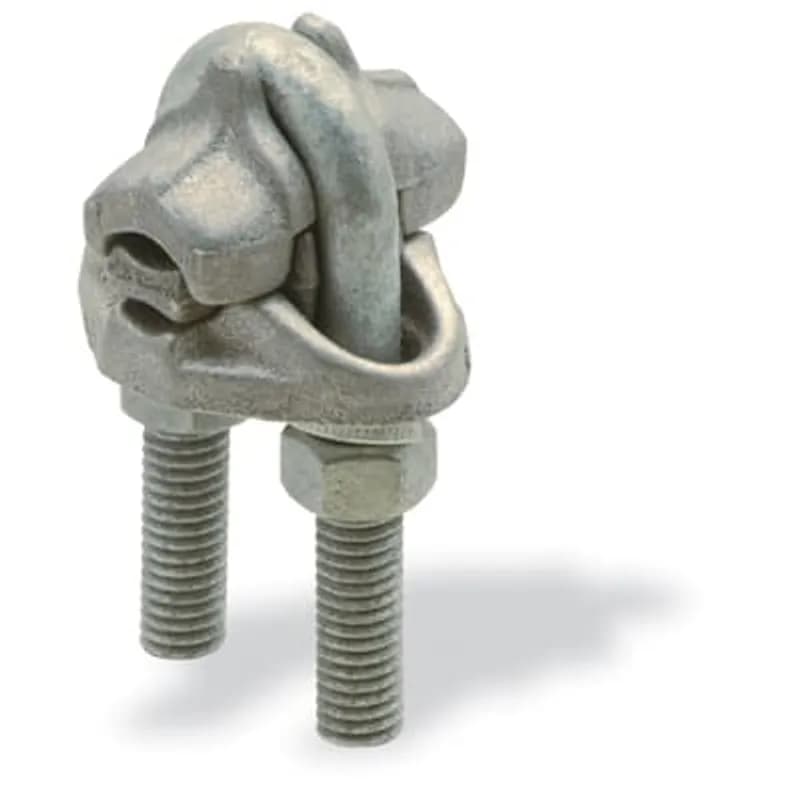

- ABB Type DLC Single U-Bolt Aluminum Fitting
- Accommodates main conductors: 2/0 AWG Stranded - 6 AWG Solid
- Suitable for ASCR main conductors: 2/0 - 6
- Durable aluminum construction for conductivity and corrosion resistance
- Compact dimensions: 1-7/8" W x 1-1/2" L x 3-1/4" H
Specifications
Application | Dead-End Loop Connections |
Bolt Size | 3/8 in |
Connection | Mechanical |
Finish | Uncoated |
Insulation | None |
Material | Aluminum |
Number of Conductors | 2 |
Special Features | Top and Bottom Pressure Pads cast of High-Strength, Heat-Treated, Aluminum -Silicon Alloy. Hardware made of Galvanized Steel Provides Added Strength and Durability |
Type | Deadend Loop Connection |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.3000 L |
Package Weight (Metric) | 0.1360 kg |
2024M
225A Stacked Neutral Bar, 4-14 AWG 20 Circuits, 1/0-14 AWG 4 Circuits & 350 MCM - 6 AWG Main Lug
TSL6E58
Threaded Stud Transformer Connector - 5/8-11 Thread, 6 Positions, Wire Range #6 - 500 kcmil, use with LAC and LCU Lugs. Contains Oxide Inhibiting Compound. 650 Amps Maximum
AT3 A 4-600 N
Aluminum Mechanical Lug, #2 - 600 kcmil, Dual Rated Copper and Aluminum, 1/2 inch Bolt hole, Three Barrel, Four Hole PadAT3 A 4-500 N
Aluminum Mechanical Lug, #2 - 500 kcmil, Dual Rated Copper and Aluminum, 1/2 inch Bolt hole, Three Barrel, Four Hole Pad
AT4 A 4-250 N
Aluminum Mechanical Lug, #6 - 250 kcmil, Dual Rated Copper and Aluminum, Four Barrel Four-Hole Pad, Bolt Size 1/2 Inch, NEMA Bolt Hole Spacing 1-3/4 Inches, Height 1 Inch, Width 3-11/16 Inches, Length 4-3/8 Inches, Tin Plated
AT3 A 2-600 N
Aluminum Mechanical Lug, #6 - 600 kcmil, Dual Rated Copper and Aluminum, Three Barrel Two-Hole Pad, Bolt Size 1/2 Inch, NEMA Bolt Hole Spacing 1-3/4 Inches, Height 1-1/4 Inches, Width 3-3/4 Inches, Length 4-5/8 Inches, Tin PlatedFrequently Asked Questions
What are the dimensions of the DLC2106 connector?
The DLC2106 has dimensions of W 17⁄8 in, L 11⁄2 in, H 31⁄4 in, F 9⁄16 in, and E 3⁄8 in.
How can I get the oxide-inhibitor option for DLC2106?
To get the oxide-inhibitor option for aluminum-to-copper applications, add the “-9” suffix to the DLC2106 catalog number.
Is the DLC2106 connector RUS Accepted?
Yes, the DLC2106 connector is RUS Accepted.
What material is the hardware of the DLC2106 made from?
The hardware for the DLC2106 is made of galvanized steel, providing added strength and durability.
What materials are used for the DLC2106 pressure pads?
The top and bottom pressure pads of the DLC2106 are cast from a high-strength, heat-treated, aluminum-silicon alloy.
What are the maximum and minimum conductor diameters for DLC2106?
The maximum conductor diameter for both main and tap is .447 inches, and the minimum is .162 inches.
What conductor sizes does the DLC2106 accept?
The DLC2106 accepts main and tap conductors ranging from 2/0 AWG to #6 AWG, including stranded and solid types.
What is the DLC2106 product used for?
The DLC2106 is a single U-bolt aluminum fitting designed for deadend loop connections.
How can I get the oxide-inhibitor option for DLC2106?
To get the oxide-inhibitor option for aluminum-to-copper applications, add the “-9” suffix to the DLC2106 catalog number.
What is the DLC2106 product used for?
The DLC2106 is a single U-bolt aluminum fitting designed for deadend loop connections.
