UPC: 786210450827
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview
- 1/2" trade size for liquidtight non-metallic conduit (UL Type B) or tubing
- 45-degree angle for efficient cable routing and strain reduction
- Non-metallic thermoplastic body with captive nitrile O-ring for watertight sealing
- Double sealing action with ferrule designed for conduit ID variations and field cuts
- Rated -40°C to 105°C; resists detergents, sanitizers, marine environments, and cold impact
Specifications
Application | T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub |
IP Rating | IP66 |
Material | Thermoplastic |
Material | Non-Metallic |
Size | 1/2 Inch |
Standard | UL E23018, CSA |
Type | Bullet-45 Degree |
Package Dimensions (L x W x H) | 6.2 IN x 5.2 IN x 4.4 IN |
Package Dimensions (L x W x H) | 15.748 cm x 13.208 cm x 11.176 cm |
Package Weight (Imperial) | 0.0800 L |
Package Weight (Metric) | 0.0360 kg |

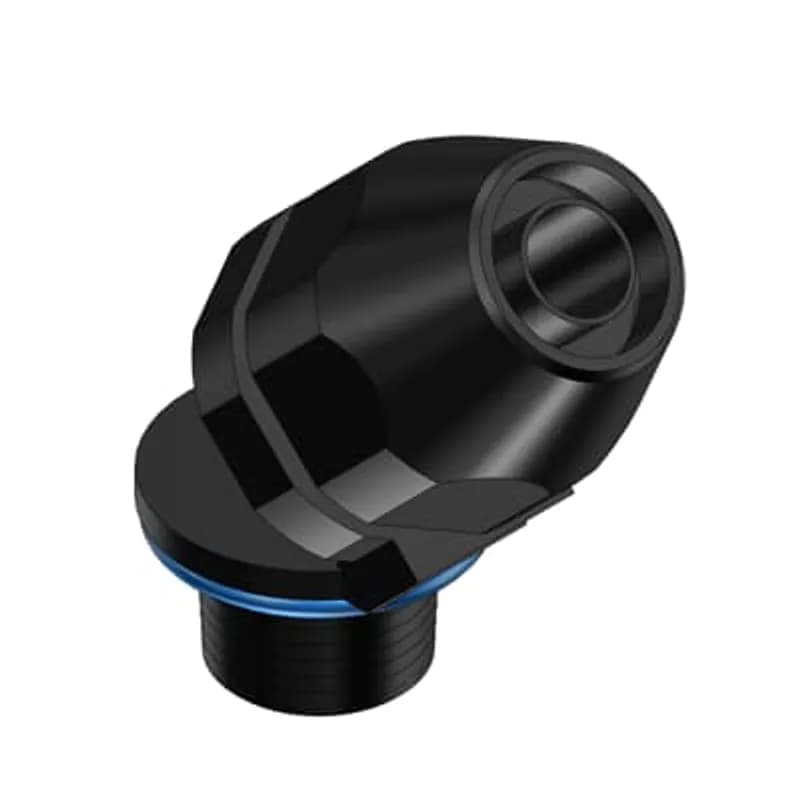

LT450P-500
1/2 Inch 45 Degree Straight Non-metallic Conduit Fitting for Liquidtight FNMC Type B, Weather Stabilized Thermoplastic Material
Frequently Asked Questions
Are there specific installation requirements for the LT450P?
Yes, the product must be installed in accordance with applicable national and local electrical codes.
What is the flammability rating of the LT450P's material?
The material flammability rating for the thermoplastic body gland is UL94-V2.
What are the key dimensions of the LT450P fitting?
Key dimensions include A: .570 inches, B*: 2.092 inches, C: 1.448 inches, D min.: .550 inches, and F** approx.: 1.590 inches.
What is the trade size and thread type of the LT450P?
The LT450P has a trade size of 1/2 inches and an NPT thread type of 1/2 - 14 (ISO 20).
What type of conduit is compatible with the LT450P?
The LT450P is designed for liquid-tight non-metallic conduit (UL Type B) or non-metallic tubing.
What standards does the LT450P fitting conform to?
The LT450P conforms to C.S.A. 22.2 No. 227.2 & No. 227.3, ANSI/UL514B, and Federal Standards H28 (NPT threads). It also meets watertight requirements of Type 4 and Type 6 enclosures.
What is the operating temperature range for the LT450P?
The LT450P fitting has a temperature range of -18°C to +105°C (-2°F to +221°F).
What materials are used in the LT450P fitting?
The body gland is weather stabilized thermoplastic (black), the O-ring is Nitrile (blue), and the locknut is steel/electro zinc plated.
What is the primary application of the LT450P fitting?
The LT450P is a non-metallic connector designed to provide a liquidtight seal when terminating liquid-tight non-metallic conduit (UL Type B) or non-metallic tubing to a box or enclosure.
What is the primary application of the LT450P fitting?
The LT450P is a non-metallic connector designed to provide a liquidtight seal when terminating liquid-tight non-metallic conduit (UL Type B) or non-metallic tubing to a box or enclosure.
