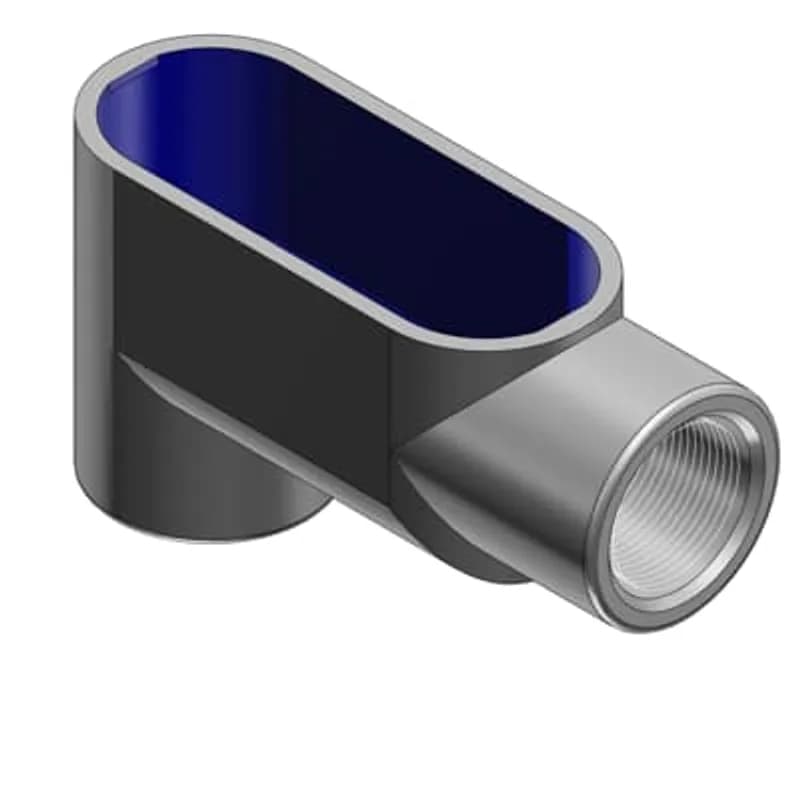

ABB - Installation Products LB97 - 3-1/2 Inch Form 7, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

ABB Installation Products LB97 3-1/2 Inch Form 7, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked…

UPC: 786210933429


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB LB97 is a 3-1/2 Inch Form 7 LB Conduit Body, SKU LB97, designed for robust electrical installations. Manufactured by ABB Installation Products, this conduit body is constructed from durable gray iron, providing a strong and reliable enclosure for conduit connections. Its exterior features a multi-layer coating system: zinc plating for corrosion resistance, a baked-on epoxy powder coat for enhanced durability, and an internal BlueKote coating engineered to reduce friction during wire pulling, safeguarding conductors. This conduit body is intended for use with Rigid and IMC (Intermediate Metal Conduit) conduit systems, ensuring compatibility with standard industrial conduit types. The Form 7 configuration offers specific access and bend radius suitable for various wiring configurations. Its construction materials and coatings make it suitable for environments requiring protection against moisture, dust, and moderate physical impact. The LB97 facilitates changes in conduit direction and provides a junction point for pulling wires, offering a protected pathway and access point within an electrical conduit run to simplify installation and maintenance. Precision-cast and machined surfaces contribute to safer wire pulling. Clean cover edges ensure good gasket sealing, and precision NPSM threaded hubs enable trouble-free installation for rigid and IMC conduit. Retained deep-slotted stainless steel cover screws facilitate faster installation. Clear UL, CSA, and cubic content markings aid inspector approval. All covers come with gaskets. Applications include connecting conduit sections, acting as pull outlets for conductor installation, providing access for splices in branch conductors, making 90° bends in conduit runs, and offering access to wiring for maintenance and future changes. It conforms to UL 514B (UL File: E28688) and CSA C22.2 No.18 (CSA File: 16807). The conduit body is die-cast aluminum alloy, gasket is neoprene, cover is stamped aluminum alloy, and screws are zinc-plated low carbon steel, with a powder-coated finish. The hub size is 3 1/2", with dimensions A=15.35", B=5.43", C=7.01", and a volume of 304.9 in³.
  • Precision-cast and machined surfaces for safer wire pulling
  • Clean cover edges for good gasket sealing
  • NPSM threaded hubs for trouble-free installation with Rigid/IMC conduit
  • Retained deep-slotted stainless steel cover screws for faster installation
  • Clear UL, CSA, and cubic content markings for inspector approval

Specifications

Application
Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors
Color
Gray
Finish
Zinc Plated with Epoxy Powder Coat
Form
Form 7
Hub Size
3-1/2
Material
Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating
Material Quality
Gray Iron
Series
Form 7 LB Conduit Body
Size
3-1/2 Inch
Special Features
BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires
Standard
UL E2969, CSA
Type
Form 7 Conduit Body
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
14.5700 L
Package Weight (Metric)
6.6090 kg
PVC Coated Conduit Body, LR Shape, Form 7, Size 3-1/2 Inch/91 Metric, Iron, Dark Gray

LR97-G

PVC Coated Conduit Body, LR Shape, Form 7, Size 3-1/2 Inch/91 Metric, Iron, Dark Gray
2-1/2 Inch Form 7, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

LB77

2-1/2 Inch Form 7, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
1-1/2 Inch Form 8, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

LB58

1-1/2 Inch Form 8, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
3/4 inch Die Cast Aluminum 90 Degree Insert. For Use with Rigid/IMC Conduit.

ESL-2

3/4 inch Die Cast Aluminum 90 Degree Insert. For Use with Rigid/IMC Conduit.
2 Inch GUA Device Box Replacement Cover, Die Cast Aluminum

GUA04-TB

2 Inch GUA Device Box Replacement Cover, Die Cast Aluminum
1-1/2 Inch GUAT Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 77.7 Cubic Inch

GUAT59-TB

1-1/2 Inch GUAT Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 77.7 Cubic Inch
2 Inch GUAT Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 77.8 Cubic Inch

GUAT69-TB

2 Inch GUAT Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 77.8 Cubic Inch
1-1/4 Inch GUAT Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 77.2 Cubic Inch

GUAT49-TB

1-1/4 Inch GUAT Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 77.2 Cubic Inch

Frequently Asked Questions

What is the primary purpose of conduit bodies?

Conduit bodies connect conduit sections, act as pull outlets, provide access for splices, and allow for 90-degree bends in conduit runs. They also serve as mounting outlets for wiring devices.

In what environments are sand cast aluminum conduit bodies ideal?

Special sand cast aluminum alloy conduit bodies are ideal for use in corrosive environments like food and beverage, pharmaceutical, and chemical processing industries.

What material is used for aluminum covers?

Aluminum covers are made from sand-cast CorroStall™ aluminum alloy or sheet aluminum, with stainless steel screws and Neoprene O-ring washers.

What material are stainless steel conduit bodies made from?

Stainless steel conduit bodies are constructed from Type 316 stainless steel.

What is the hub size of the LB97 conduit body?

The LB97 conduit body has a hub size of 3 1/2 in.

What are the compliance standards for these conduit bodies?

These conduit bodies comply with UL Standard 514A, 514B, Fed Spec W-C-586D, and CSA Standard C22.2 No. 18.

Do Form 7 and Form 8 covers include gaskets?

Yes, all Form 7 and Form 8 covers include gaskets, which are made of Neoprene.

What material provides superior corrosion resistance for Form 7?

Form 7 sand cast aluminum, made with a special aluminum alloy, provides superior corrosion resistance without needing protective coatings.

What finish do Form 7 iron conduit bodies have?

Form 7 iron conduit bodies have a zinc-plating with an aluminum acrylic coating. Internally, they feature a PTFE-based BlueKote® coating.

What is the internal coating on Form 7 and Form 8 iron bodies?

Form 7 and Form 8 cast iron bodies feature a BlueKote® internal coating, which aids in easier wire pulling.
