UPC: 786210165684
Documents & Media
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Overview

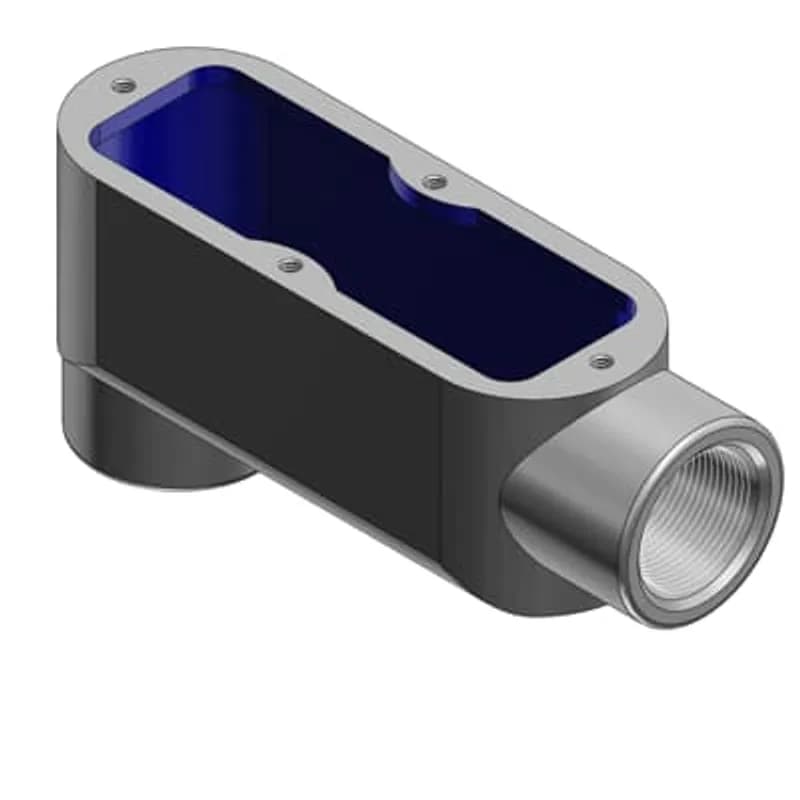

- 1-1/2 Inch Form 8 Conduit Body
- Durable Gray Iron Construction
- Zinc Plating and Baked-On Epoxy Powder Coat Exterior
- BlueKote Internal Coating for Reduced Wire Pulling Friction
- Designed for Rigid/IMC Conduit
Specifications
Application | Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors |
Color | Gray |
Finish | Zinc Plated with Epoxy Powder Coat |
Form | Form 8 |
Hub Size | 1-1/2 |
Material | Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat |
Material Quality | Gray Iron |
Series | Form 8 |
Size | 1-1/2 Inch |
Special Features | BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires |
Standard | UL E2969, CSA |
Type | Form 8 Conduit Body |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 5.0900 L |
Package Weight (Metric) | 2.3090 kg |
