Contact for Pricing
Overview

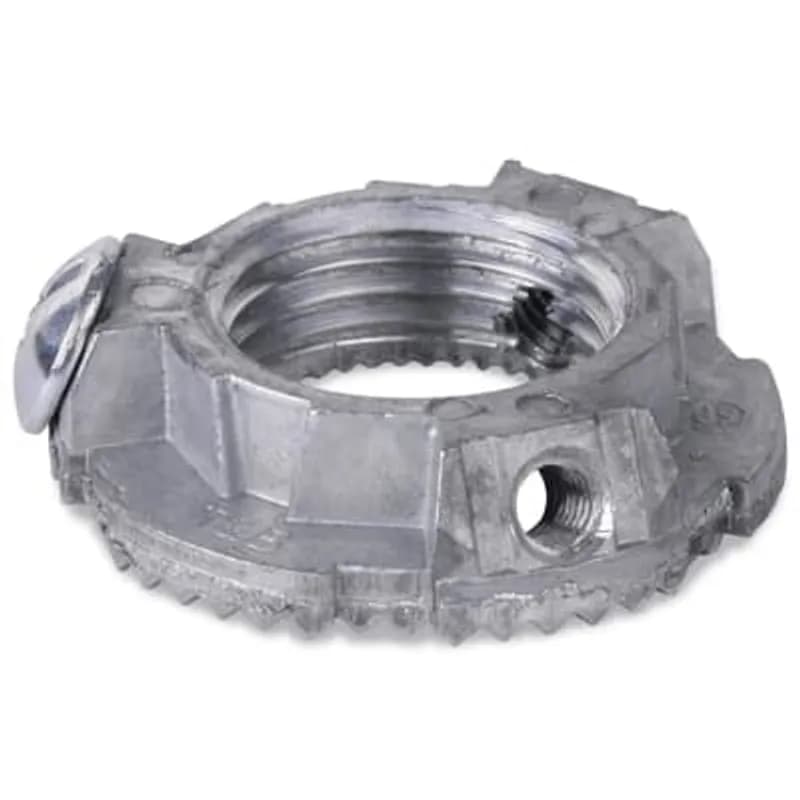

- 1/2-inch trade size for standard conduit hubs
- Copper-free aluminum die-cast construction for corrosion resistance
- Tin-plated aluminum lay-in lug for direct #10 AWG conductor insertion
- Electro-zinc plated steel screw for durability and environmental resistance
- UL File No. E-3060 and CSA File No. 4484 certified
Specifications
Application | Extreme Grounding for Data and Control Applications |
Color | Silver |
Connection Type | Lay-in Lug |
Material | Copper-free aluminum die cast, Tin-plated aluminum, Electro-zinc plated steel |
Material of Construction | Copper free aluminum die cast |
Series | BOND STAR |
Size | 1/2 Inch |
Standard | UL E3060, CSA 4484 |
Type | Locknuts |
Package Dimensions (L x W x H) | 5 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 12.7 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 0.0700 L |
Package Weight (Metric) | 0.0320 kg |
L100GRL
1 inch copper free aluminum die cast grounding locknut with tin plated aluminum lay-in-lug and electro zinc plated steel screw.
70430
Hex nut with a nylon-filled collar at its back end that creates a tight frictional fit to restrict movement under vibration. It is made from 18-8 stainless steel with a stainless finish. The nut is sized 5/16 in. with 18 TPI threads and measures 0.359 in thick by 0.502 in wide.
Frequently Asked Questions
What are the dimensions of the L050GRL locknut?
The L050GRL locknut has a diameter of 1 1/2 in and a height of 13/32 in.
Is the L-series locknut UL Listed or CSA Certified?
L-series locknuts are UL File No. E-3060 and CSA File No. 4484.
What does the GRL suffix mean for this locknut?
The GRL suffix indicates that the locknut is supplied with a Lay In Lug.
What is the maximum conductor size for L050GRL?
The maximum conductor size for the L050GRL locknut is #10.
What is the ground screw specification for L050GRL?
The L050GRL locknut uses a #10-32 x 1/4 in ground screw.
What materials are available for L-series locknuts?
L-series locknuts are made from zinc or copper-free aluminum. Options include aluminum, chrome-plated, or 316 stainless steel for specific trade sizes.
What is the trade size of the L050GRL locknut?
The L050GRL locknut has a trade size of 1/2 in.
Is the L-series locknut UL Listed or CSA Certified?
L-series locknuts are UL File No. E-3060 and CSA File No. 4484.
What is the trade size of the L050GRL locknut?
The L050GRL locknut has a trade size of 1/2 in.
What materials are available for L-series locknuts?
L-series locknuts are made from zinc or copper-free aluminum. Options include aluminum, chrome-plated, or 316 stainless steel for specific trade sizes.
