UPC: 786210816234
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview

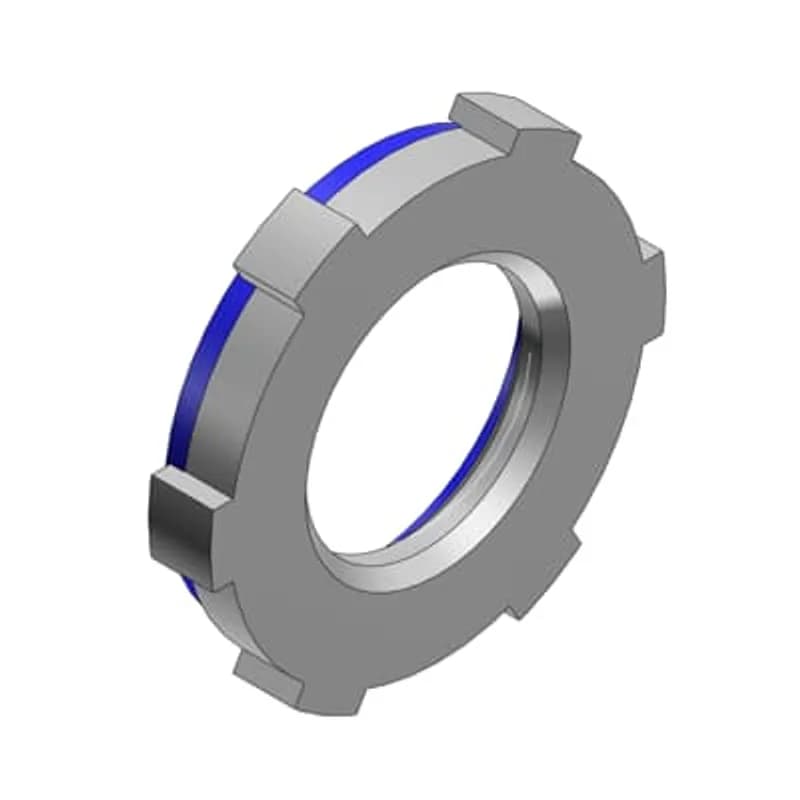

- 1/2 Inch Steel Sealing Locknut
- Designed for Rigid and IMC Conduit
- Provides secure and reliable conduit connection
- Manufactured by ABB - Installation Products
- Essential for preventing contaminant ingress
Specifications
Application | Provides Positive Seal Against Water and Oil |
Material | Steel |
Material of Construction | Steel |
Size | 1/2 Inch |
Standard | UL E23018, CSA |
Thread Size | 1/2 inch |
Type | Locknuts |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.0200 L |
Package Weight (Metric) | 0.0090 kg |
40411J
An 8-32 nylon insert stop nut in a hex nut form. It is made of steel with a zinc plated finish and is silver in color. The sheet lists a #8 size, 32 thread size, right-handed thread direction, 0.239" thickness, and 0.345" width.
How to Install Thomas & Betts Sealing Locknuts (141SL-146SL)
This guide provides step-by-step instructions for properly installing Thomas & Betts Sealing Locknuts to create a watertight or raintight grounded conduit connection, suitable for wet locations.
Estimated time: 10m
Tools needed:
Wrench
Supplies needed:
Thomas & Betts Sealing Locknut, Conduit, Enclosure, Rigid conduit locknut or bushing
- Prepare the Sealing Locknut and Conduit
Thread the sealing locknut onto the conduit, advancing it up to the end of the conduit's threads.
- Insert Conduit into Enclosure
Insert the conduit, with the sealing locknut already threaded on, into the entry point of the enclosure. Ensure the sealing locknut is positioned on the outside of the enclosure.
- Secure and Seal the Connection
On the inside of the enclosure, install a rigid conduit locknut or a bushing. Tighten the entire assembly firmly to ensure a secure seal and proper ground connection.
