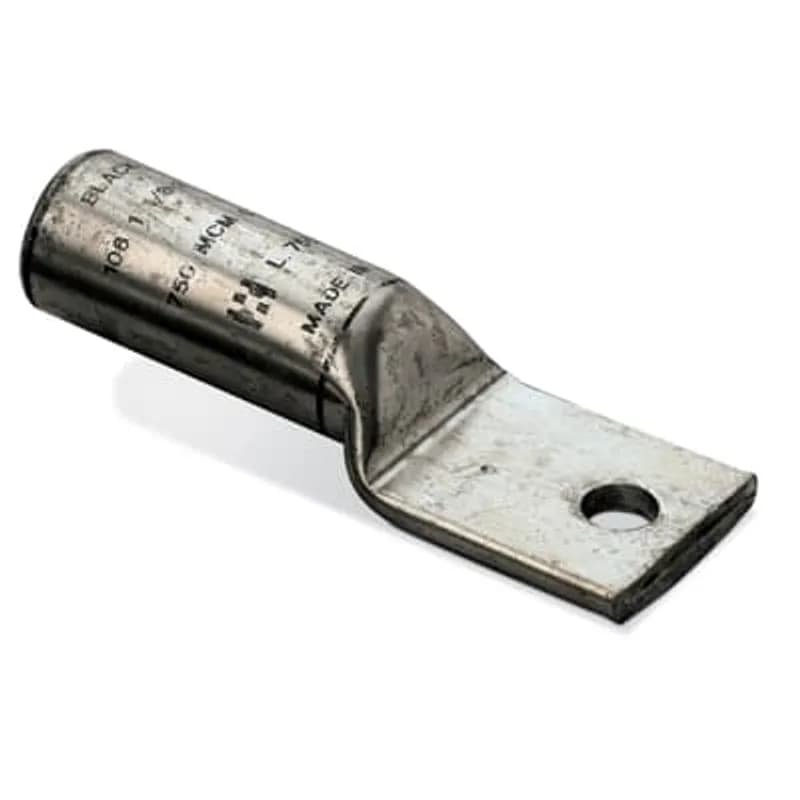

ABB Installation Products L 1/0-38 GCSCAB Tin Plated Copper One-Hole Lug, wire size 1/0 Stranded Copper. Installing Dies 42, 163…
UPC: 783786738588
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Tin-plated copper construction for corrosion resistance
- Accommodates 1/0 stranded copper wire
- Includes 3/8-16 x 3/4 inch screw and insulating rocket
- CSA and UL listed for safety and reliability
- Barrel length of 4-3/16 inches for secure termination
Specifications
Connection | Compression |
Connection Type | Screw Terminal |
Finish | Tin Plated |
Housing Material | Copper |
Insulation | None |
Material | Tin Plated Copper |
Series | L |
Size | Length 5/750 inches |
Size | 1/0 Stranded Copper |
Special Features | Marked with Conductor Size and Die Reference. Includes CS 2277 Rocket Cover. Includes Screw |
Type | Compression Lug One Hole |
Wire Size | 1/0 STR AWG |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
L 1/0-516 B
Tin Plated Copper One-Hole Lug with Flared-End Barrel, wire size 1/0 Stranded Copper. Installing Dies 42, 163, 1/2, 12. Length 2-49/64 inch. Pad 3/4 inch wide x 57/64 inch long x 7/64 inch thick. (1) 11/32 inch diameter Hole. Barrel 1-7/16 inch long.
SPM-24L
Service Post Connector - Two Wire Type 4 STR Service Post Connectors is used for connecting one or two conductors. Made from high copper content hard-drawn rod. Lay-in feature makes them excellent for continuous loop grounding and bonding. Used to ground to bar or plate. Suitable for direct burial in earth or concrete.
SWA055A1304
Tinned Copper, Standard Flexible Braid Connector, SWA Series, 1-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes , 12 inch (304 mm) long, 1-3/8 inch (34.9 mm) wide, 7/32 inch (5.6 mm) thick. Pad 1-3/8 inch x 1-1/2 inch. 36 AWG Individual Strand.SWA035A1610
Tinned Copper, Standard Flexible Braid Connector, SWA Series, 1-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes , 24 inch (610 mm) long, 1-1/4 inch (31.8 mm) wide, 1/4 inch (6.3 mm) thick. Pad 1-1/2 inch x 1-1/4 inch. 36 AWG Individual Strand.SWA035A1304
Tinned Copper, Standard Flexible Braid Connector, SWA Series, 1-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes , 12 inch (304 mm) long, 1-1/4 inch (31.8 mm) wide, 1/4 inch (6.3 mm) thick. Pad 1-1/2 inch x 1-1/4 inch. 36 AWG Individual Strand.
EXA100A1304
Tinned Copper, Extra Flexible Braid Connector, EXA Series, 1-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Hole, 12 inch (304 mm) long, 1-9/16 inch (40 mm) wide, 1/2 inch (17.7 mm) thick. Pad 1-9/16 inch x 1-9/16 inch. 6 Braids in Assembly. 36 AWG Individual Strand.
FB2D6-1
Tinned Copper Flexible Braid Connector for Grounding, 6 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.Frequently Asked Questions
What wire size does the L 1/0-38 GCSCAB lug support?
The L 1/0-38 GCSCAB lug is designed for 1/0 stranded copper wire.
What is the barrel length of this ABB lug?
The barrel of the L 1/0-38 GCSCAB lug is 4-3/16 inches long.
What type of screw is included with the lug?
The L 1/0-38 GCSCAB lug includes a 3/8-16 x 3/4 inch screw.
Is the L 1/0-38 GCSCAB lug CSA and UL listed?
Yes, the L 1/0-38 GCSCAB lug is CSA and UL listed.
What are the dimensions of the pad on the lug?
The pad on the L 1/0-38 GCSCAB lug is 3/4 inch wide by 13/16 inch long.
What is the diameter of the mounting hole on the lug?
The L 1/0-38 GCSCAB lug has a single 13/32 inch diameter hole.
How to Install the FLOOD-SEAL FS-95 Connector Kit
This guide provides step-by-step instructions for installing the FLOOD-SEAL FS-95 Connector Kit, ensuring a secure and sealed connection for various conductor sizes. Installation must be performed by trained installers in accordance with all applicable electrical codes and safety rules.
Estimated time: 15m
Tools needed:
Cleaning cloth or solution, Pencil or marking tool, Utility knife or cutting tool, Crimping tool, Wrench or socket set
Supplies needed:
FLOOD-SEAL FS-95 Connector Kit (including rocket sleeve), Cable, Lug, Silicone grease, Bus
- Clean the Cable
Thoroughly clean the cable surface before proceeding with the installation of the rocket sleeve to ensure proper adhesion and sealing.
- Mark Cable Insulation
Pencil or mark the cable insulation as required for proper preparation and alignment.
- Select Correct Cut Ring
Identify the appropriate cut ring on the rocket sleeve by matching the conductor size of the cable being installed with the raised numbers indicating the cable range.
- Trim Rocket Sleeve
Carefully cut off the tip of the rocket sleeve up to the selected cut ring. Ensure the cut leaves the required conductor range visible on the sleeve.
- Lubricate and Install Rocket Sleeve onto Cable
Apply silicone grease to both ends of the rocket sleeve and the cable. Hold the cable at an angle to the sleeve's opening, then twist and push the rocket sleeve onto the cable until it is fully seated.
- Crimp the Lug
Using an appropriate crimping tool, compress the lug securely onto the prepared cable.
- Position Rocket Sleeve
Slide the rocket sleeve over the crimped lug and onto the shoulder of the bus. Continue pushing until the rocket sleeve firmly butts against the rubber of the connector bar, ensuring a tight seal.
- Secure Terminal to Bus
Bolt the terminal, with the installed rocket sleeve and lug, securely to the bus, ensuring a robust electrical and mechanical connection.
