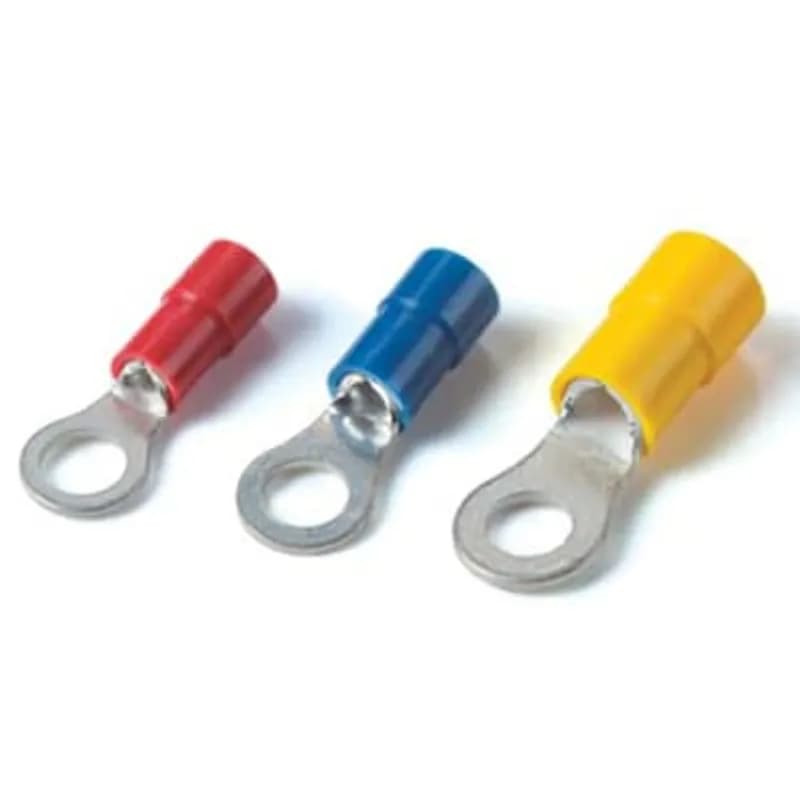

ABB - Installation Products KV14-6R-M - Vinyl Ring Wire Range 16-14 Bolt Hole #6, Package of 1000

ABB Installation Products KV14-6R-M Vinyl Ring Wire Range 16-14 Bolt Hole #6, Package of 1000

UPC: 786210100791


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB KV14-6R-M Vinyl Ring Wire Connector is a durable, non-conductive solution for securing 16-14 AWG wires in industrial and commercial installations. Designed for high-volume applications, this connector features six bolt holes for secure mounting and is manufactured from robust vinyl for long-lasting performance. The KV14 series is part of ABB’s Installation Products line, ensuring compatibility with standard wiring systems. Each package contains 1000 units, making it ideal for large-scale projects or inventory stocking. The vinyl construction provides electrical insulation and resistance to moisture, chemicals, and temperature variations, reducing the risk of short circuits or corrosion. Suitable for use in control panels, junction boxes, and electrical enclosures, this connector simplifies wire management while maintaining compliance with industry standards. The 16-14 AWG wire range accommodates common conductor sizes, and the bolt hole design allows for easy attachment to mounting surfaces.
  • Material: Vinyl for electrical insulation and durability
  • Wire Range: 16-14 AWG for common conductor sizes
  • Bolt Holes: 6 for secure mounting
  • Package Quantity: 1000 units per box
  • Series: KV14 for compatibility with ABB installation products

Specifications

Color
Blue
Material
Vinyl
Standard
UL E9809
Type
Vinyl Insulated Ring Terminal
Wire Size
16-14 AWG
Package Dimensions (L x W x H)
5.25 IN x 4 IN x 3.62 IN
Package Dimensions (L x W x H)
13.335 cm x 10.16 cm x 9.1948 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
16-14 AWG, # 8 Stud Vinyl Insulated Flange Spade, 1,000 Per Pack

S16-8V-F-BULK

16-14 AWG, # 8 Stud Vinyl Insulated Flange Spade, 1,000 Per Pack
Insulated Vinyl Ring Terminal for Wire Range 16-14 Stud Size 1/4, Blue

TV14-14R-L

Insulated Vinyl Ring Terminal for Wire Range 16-14 Stud Size 1/4, Blue
Ring Tongue Terminal 1.5 to 2.5 mm / M3.5-M5 - 16 to 14 AWG / MIL 6-10 - Blue

1SET122002R0000

Ring Tongue Terminal 1.5 to 2.5 mm / M3.5-M5 - 16 to 14 AWG / MIL 6-10 - Blue
Insulated Vinyl Fork Terminal for Wire Range 16-14 Stud Size #6 , Blue, Package of 1000

KV14-6F-M

Insulated Vinyl Fork Terminal for Wire Range 16-14 Stud Size #6 , Blue, Package of 1000
Vinyl Ring - Multi-Stud Wire Range 16-14 Bolt Hole 16-14

KV14-610MS-M

Vinyl Ring - Multi-Stud Wire Range 16-14 Bolt Hole 16-14
Insulated Vinyl Locking Fork Terminal for Wire Range 16-14 Stud Size #6, Blue, Package of 1000

KV14-6LF-M

Insulated Vinyl Locking Fork Terminal for Wire Range 16-14 Stud Size #6, Blue, Package of 1000
Insulated Vinyl Locking Fork Terminal for Wire Range 16-14 Stud Size #8, Blue, Package of 1000

KV14-8LF-M

Insulated Vinyl Locking Fork Terminal for Wire Range 16-14 Stud Size #8, Blue, Package of 1000
Insulated Vinyl Butt Splice for Wire Range 16-14 , Blue

KV14-BS-M

Insulated Vinyl Butt Splice for Wire Range 16-14 , Blue

Frequently Asked Questions

How many bolt holes does the KV14-6R-M have?

The connector features six bolt holes for secure mounting.

What is included in the package?

Each package contains 1000 vinyl ring wire connectors.

What wire gauge does the KV14-6R-M support?

The connector supports wire gauges from 16 to 14 AWG.

What is the material of the KV14-6R-M connector?

The connector is made of vinyl, providing electrical insulation and durability.

Is the KV14-6R-M suitable for outdoor use?

The vinyl material offers resistance to moisture and chemicals, making it suitable for indoor and protected outdoor environments.
