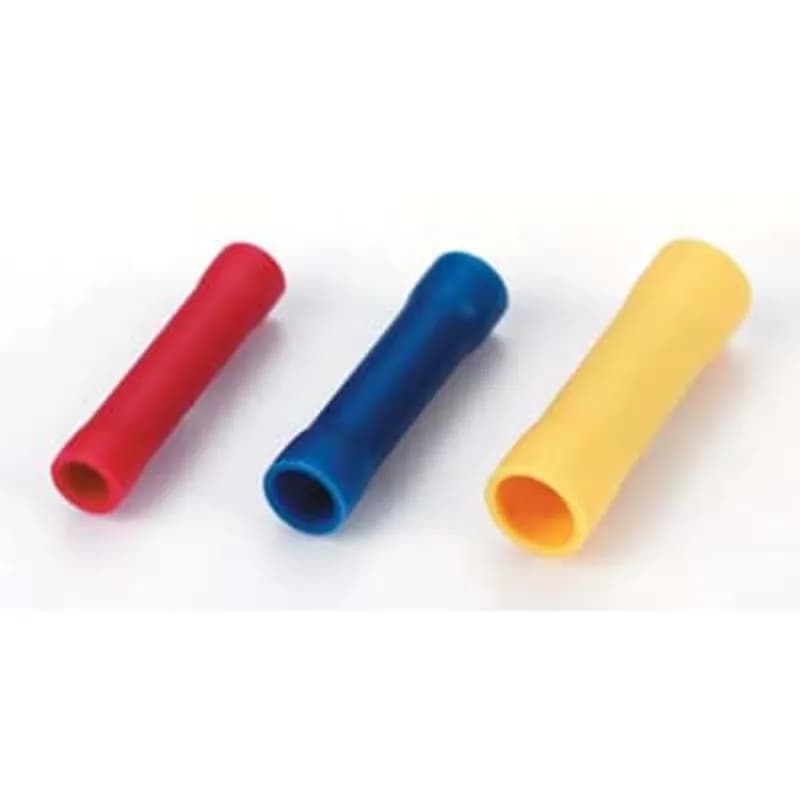

ABB - Installation Products KV14-BS-M - Insulated Vinyl Butt Splice for Wire Range 16-14 , Blue

ABB Installation Products KV14-BS-M Insulated Vinyl Butt Splice for Wire Range 16-14 , Blue

UPC: 786210108247


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB KV14-BS-M insulated vinyl butt splice is a UL-listed, non-insulated connector designed for splicing solid or stranded copper wires within the 16-14 AWG range. This butt splice provides a secure, gas-tight connection that resists corrosion and maintains conductivity over time. The blue color-coded vinyl insulation ensures quick identification and compliance with electrical codes, while the tin-plated copper barrel enhances conductivity and reduces oxidation risk. The connector is rated for 600V and accommodates a maximum wire bundle diameter of 0.16 inches, making it suitable for branch circuit, control panel, and appliance wiring applications. Installation requires crimping with a compatible tool, ensuring a permanent, vibration-resistant joint. The KV14-BS-M is part of ABB Installation Products' line of electrical connectors, known for consistent performance in residential, commercial, and light industrial environments. The connector meets UL 486A-B standards for wire connectors and is manufactured under ABB's quality-controlled processes. For applications requiring reliable, code-compliant splices in tight spaces, this butt splice delivers a durable solution with minimal bulk.
  • UL 486A-B listed for 16-14 AWG solid or stranded copper wires
  • Blue vinyl insulation for quick identification and code compliance
  • Tin-plated copper barrel for corrosion resistance and conductivity
  • 600V rated, accommodates max wire bundle diameter of 0.16 inches
  • Crimp-style installation for secure, vibration-resistant connections

Specifications

Application
Ideal for in-line splicing applications
Color
Blue
Connection Type
Butt Splice
Material
Copper
Material
Vinyl
Size
16-14 AWG
Special Features
Expanded Entry. Brazed Seams (Yellow - Tubular). Internal Barrel Serrations
Standard
UL E9809
Type
Vinyl Insulated Butt Splice
Voltage Rating
600 V
Wire Size
16-14 AWG
Package Dimensions (L x W x H)
7 IN x 5 IN x 3.25 IN
Package Dimensions (L x W x H)
17.78 cm x 12.7 cm x 8.255 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
