ABB - Installation Products KV10-10F-D - Insulated Vinyl Fork Terminal for Wire Range 12-10 Stud Size #10 , Yellow

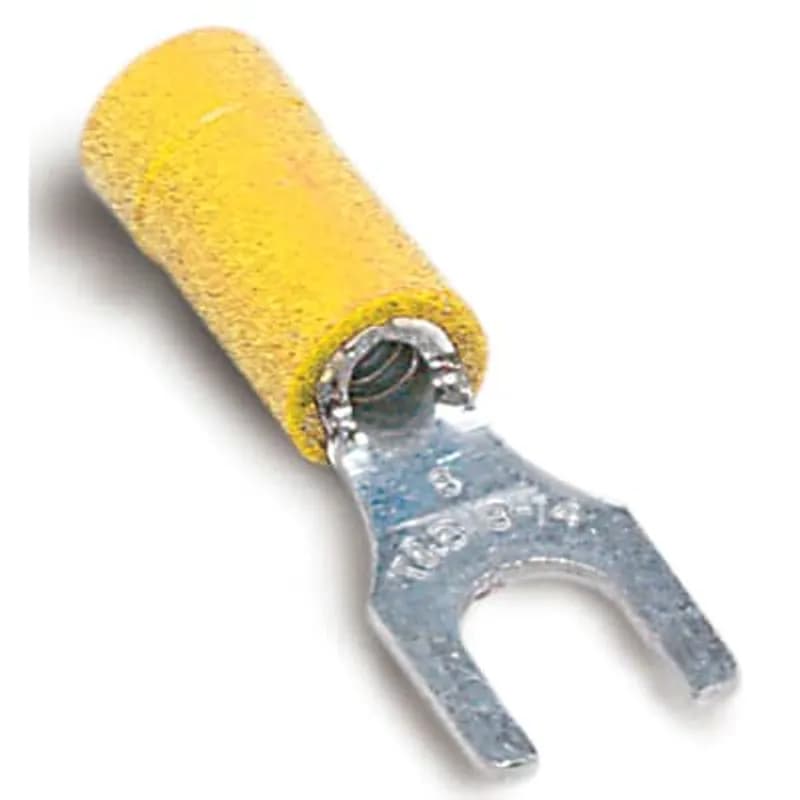

ABB Installation Products KV10-10F-D Insulated Vinyl Fork Terminal for Wire Range 12-10 Stud Size #10 , Yellow

UPC: 786210100319


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB KV10-10F-D is a yellow, vinyl-insulated fork terminal designed for wire ranges of 12-10 AWG (4-6 mm²) and a #10 stud size. Manufactured by ABB Installation Products, this terminal features a high-conductivity electrolytic copper body with electro-tin plating for reliable electrical connections. The brazed-seam barrel includes internal serrations to enhance pull-out resistance, making it suitable for applications with vibration. This terminal operates at a maximum electrical rating of 105°C and 600 Volts Max. It is part of ABB's Spec-Kon® line. The box quantity for SKU KV10-10F-D is 500 units (indicated by 'D'). UL File #E9809 and CSA File #LR4503 are associated with this product series. Tools recommended for use include ERG2500 and KT-2500 crimpers.
  • Wire Range: 12-10 AWG (4-6 mm²)
  • Stud Size: #10
  • Insulation: Yellow Vinyl
  • Max Electrical Rating: 105°C, 600 Volts
  • Material: Copper with Electro-Tin Plating
  • Box Quantity: 500 (SKU KV10-10F-D)
  • Molded funnel entry insulator simplifies wire insertion and installation

Specifications

Color
Yellow
Connection Type
Fork Terminal
Material
Copper
Material
Vinyl
Material
Electrolytic Copper with Electro-Tin Plating
Mounting Type
Screw (Stud Size #10)
Series
Sta-Kon
Size
#10
Size
12-10 AWG, #10 stud
Special Features
Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations
Standard
UL E9809
Type
Vinyl Insulated Fork Terminal
Voltage Rating
600 V
Wire Size
12-10 AWG
Package Dimensions (L x W x H)
5.25 IN x 4 IN x 3.62 IN
Package Dimensions (L x W x H)
13.335 cm x 10.16 cm x 9.1948 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
Nylon Insulated Expanded Entry Ring Terminal, Length 1.32 Inches, Width .53 Inches, Maximum Insulation .250, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

RC704

Nylon Insulated Expanded Entry Ring Terminal, Length 1.32 Inches, Width .53 Inches, Maximum Insulation .250, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
12-10 AWG Nylon Insulated Spade 1/4" Std, 50 Per Pack

S12-14N

12-10 AWG Nylon Insulated Spade 1/4" Std, 50 Per Pack
Long Spring Spade Terminal 4 to 6 mm / M4 - 12 to 10 AWG / MIL 8 - Yellow

1SET134007R0000

Long Spring Spade Terminal 4 to 6 mm / M4 - 12 to 10 AWG / MIL 8 - Yellow
LB6-CA Soldering Receptacle 2-pole

LB6-CA

LB6-CA Soldering Receptacle 2-pole
TERMINAL BLOCK BTWD 4NK WEG specifications: Terminal type Screw; Connector cross-section 4 mm2; Nominal current 32 A; Lugs color Gray; Rated voltage 500 V; Quantity per packaging 20

BTWD 4NK

TERMINAL BLOCK BTWD 4NK WEG specifications: Terminal type Screw; Connector cross-section 4 mm2; Nominal current 32 A; Lugs color Gray; Rated voltage 500 V; Quantity per packaging 20
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .058 Inches/1.47mm, Outer Diameter .083 Inches/2.10mm, Color Yellow, Hard Bronze, Tin Plated

GSB058

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .058 Inches/1.47mm, Outer Diameter .083 Inches/2.10mm, Color Yellow, Hard Bronze, Tin Plated
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .063 Inches/1.60mm, Outer Diameter .088 Inches/2.23mm, Color Red, Hard Bronze, Tin Plated

GSB063

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .063 Inches/1.60mm, Outer Diameter .088 Inches/2.23mm, Color Red, Hard Bronze, Tin Plated
Two-Piece Inner Sleeve Connector with Flared End, Length 5/16, Inch, Inner Diameter .109 Inch, Outer Diameter .131 Inch, Flared Outer Diameter 0.146 Inch, Color Red, Hard Bronze, Tin Plated

GSB109X

Two-Piece Inner Sleeve Connector with Flared End, Length 5/16, Inch, Inner Diameter .109 Inch, Outer Diameter .131 Inch, Flared Outer Diameter 0.146 Inch, Color Red, Hard Bronze, Tin Plated

Frequently Asked Questions

What wire gauge range does the KV10-10F-D support?

The KV10-10F-D supports wire ranges from 12 to 10 AWG, as specified in the product catalog.

What is the stud size for the KV10-10F-D terminal?

The terminal features a #10 stud size, ensuring compatibility with standard electrical hardware.

What type of insulation does the KV10-10F-D use?

The terminal uses yellow vinyl insulation, which provides electrical isolation and protection against environmental factors.

What material is the KV10-10F-D terminal made of?

The terminal is constructed from high-conductivity electrolytic copper with electro-tin plating for enhanced conductivity and corrosion resistance.

Is the KV10-10F-D terminal suitable for high-vibration applications?

Yes, the brazed-seam barrel with internal serrations ensures high pull-out resistance, making it ideal for high-vibration environments.

What is the purpose of the molded funnel entry insulator?

The molded funnel entry insulator simplifies wire insertion and installation by guiding the wire into the terminal.
