UPC: 786210812779
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview

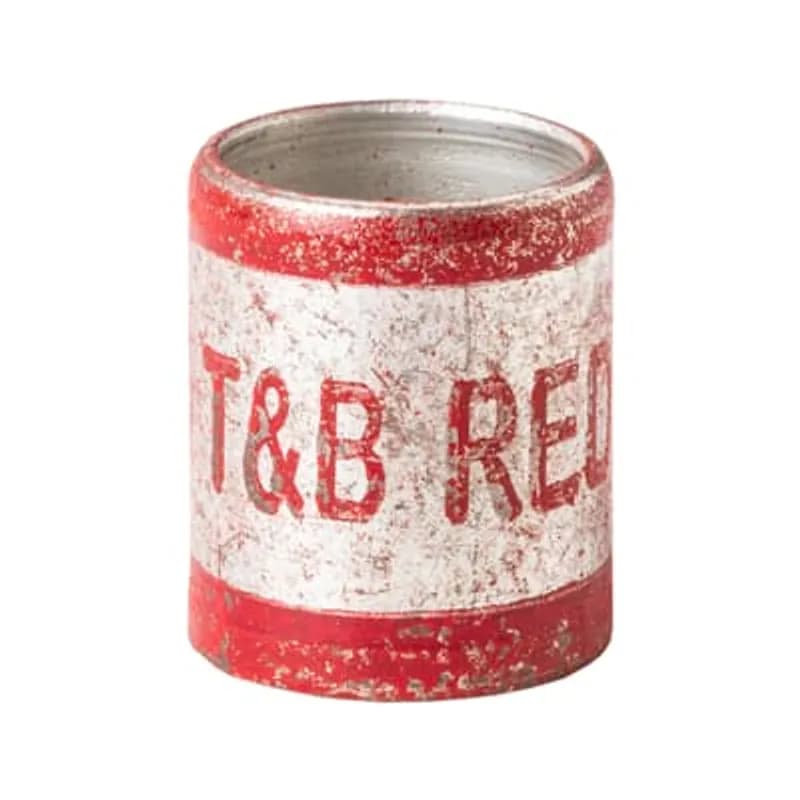

- Two-piece inner sleeve connector for hexagonal range
- Constructed from hard bronze with tin plating
- Compact size: 5/16" Length, 0.063" Inner Diameter, 0.088" Outer Diameter
- Vibrant red color for easy identification
- Ensures reliable and durable electrical connections
Specifications
Color | Red |
Material | Hard Bronze |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Inner Sleeve Connector |
Package Dimensions (L x W x H) | 2.09 IN x 1.1 IN x 2.9 IN |
Package Dimensions (L x W x H) | 5.3086 cm x 2.794 cm x 7.366 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSB232
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch (7.9mm), Inner Diameter 0.232 Inch (5.9mm), Outer Diameter 0.263 Inch (6.7mm), Color Red, Hard Bronze, Tin Plated
GSB115
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 7.9mm, Inner Diameter 2.92mm, Outer Diameter 3.70mm, Color Silver, Hard Bronze, Tin Plated
GSB194
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .194 Inches/4.93mm, Outer Diameter .226 Inches/5.76mm, Color Blue, Hard Bronze, Tin Plated
GSB175
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .175 Inches/4.44mm, Outer Diameter .215 Inches/5.46mm, Color Green, Hard Bronze, Tin Plated
GSB250
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .250 Inches/6.35mm, Outer Diameter .281 Inches/7.14mm, Color Green, Hard Bronze, Tin PlatedGSB261
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .261 Inches/6.63mm, Outer Diameter .297 Inches/7.54mm, Color Blue, Hard Bronze, Tin Plated
GSC205
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .205 Inches/5.20mm, Outer Diameter .245 Inches/6.22mm, Color Yellow, Soft Bronze, Tin PlatedFrequently Asked Questions
What are the dimensions of the GSB063 connector?
The GSB063 connector has a length of 5/16 Inch (7.9mm), an inner diameter of 0.063 Inches (1.60mm), and an outer diameter of 0.088 Inches (2.23mm).
What material is the ABB GSB063 connector made from?
The ABB GSB063 connector is made from hard bronze and is tin plated for enhanced conductivity and corrosion resistance.
What is the color of the GSB063 connector?
The ABB GSB063 connector is red, which aids in quick identification within electrical systems.
What type of range is the GSB063 connector designed for?
The GSB063 connector is designed for hexagonal range applications.
