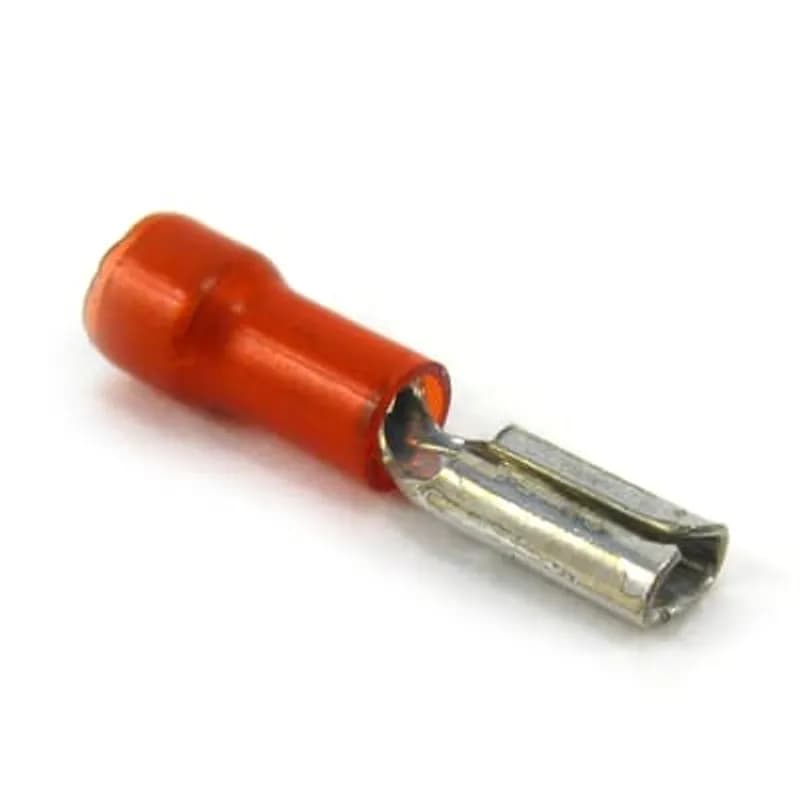

ABB - Installation Products KN18-110-20FD-M - Nylon 110 Disconnect (x.020) Wire Range 22-16 Bolt Hole n/a, Package of 1000 Red

ABB Installation Products KN18-110-20FD-M Nylon 110 Disconnect (x.020) Wire Range 22-16 Bolt Hole n/a, Package of 1000 Red

UPC: 786210107684


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB KN18-110-20FD-M is a Nylon 110 fully insulated female flag disconnect wire connector designed for reliable electrical connections in the 22-16 AWG wire range. This red-colored connector features a molded funnel entry insulator and internal barrel serrations for secure wire retention and optimal conductivity. The disconnect design enables quick circuit isolation and maintenance without wire cutting or splicing, reducing downtime in industrial applications. Key specifications include a maximum electrical rating of 300V at 105°C, brass terminal material, and a tab size of 0.110 x 0.020 inches. The connector is packaged in bulk quantities of 1000 units for efficient inventory management and large-scale installations. Typical applications include control circuits, power distribution panels, and signal wiring in industrial automation, machinery, and equipment manufacturing. The Nylon 110 material provides excellent dielectric strength and resistance to environmental factors such as moisture, chemicals, and temperature fluctuations. This ensures long-term reliability in harsh operating conditions. The fully insulated design meets industry standards for safety and performance in electrical systems.
  • Fully insulated Nylon 110 construction for dielectric strength and environmental resistance
  • Designed for 22-16 AWG wire range with 0.110 x 0.020 inch tab size
  • Molded funnel entry insulator and internal barrel serrations for secure wire retention
  • Disconnect feature enables quick circuit isolation without wire cutting or splicing
  • Maximum electrical rating: 300V at 105°C with brass terminal material
  • Bulk packaging of 1000 units for efficient inventory and large-scale installations

Specifications

Color
Red
Finish
Tin Plated
Insulation
Yes
Material
Copper
Standard
UL E66716
Type
Nylon Insulated Female Disconnect
Wire Size
22-18 AWG
Package Dimensions (L x W x H)
5.25 IN x 4 IN x 3.62 IN
Package Dimensions (L x W x H)
13.335 cm x 10.16 cm x 9.1948 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
22-18 AWG Vinyl Insulated Spade #6 Stud, Bulk

S22-6V-BULK

22-18 AWG Vinyl Insulated Spade #6 Stud, Bulk
Vinyl-Insulated Female Disconnect, Length .96 Inches, Width .29 Inches, Maximum Insulation .150, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, on Mylar Tape, Left Feed Reel

RA257ML

Vinyl-Insulated Female Disconnect, Length .96 Inches, Width .29 Inches, Maximum Insulation .150, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, on Mylar Tape, Left Feed Reel
Non-Insulated Female Disconnect, Length .64 Inches, Width .23 Inches, Tab Size .187x.020, Wire Range #16-#14 AWG, Copper, Tin Plated, On Mylar Tape, 1,000 Pack

BD182M

Non-Insulated Female Disconnect, Length .64 Inches, Width .23 Inches, Tab Size .187x.020, Wire Range #16-#14 AWG, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
Non-Insulated Female Disconnect, Length .64 Inches, Width .23 Inches, Tab Size .187x.020, Wire Range #22-#18 AWG, Copper, Tin Plated, On Mylar Tape, 1,000 Pack

AD182M

Non-Insulated Female Disconnect, Length .64 Inches, Width .23 Inches, Tab Size .187x.020, Wire Range #22-#18 AWG, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
Non-Insulated 90 Degree Flag Female Disconnect, Length .58 Inches, Width .62 Inches, Tab Size .250x.032, Wire Range #16-#14 AWG, Copper, Tin Plated, On Mylar Tape, 1,000 Pack

B252GM

Non-Insulated 90 Degree Flag Female Disconnect, Length .58 Inches, Width .62 Inches, Tab Size .250x.032, Wire Range #16-#14 AWG, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
Nylon 187 Disconnect (x.020) Wire Range 12-10 Bolt Hole n/a

KN10-187-20FD-D

Nylon 187 Disconnect (x.020) Wire Range 12-10 Bolt Hole n/a
Nylon Fully Insulated 250 Disconnect Wire Range 12-10 Bolt Hole n/a

KNF10-250FD-T

Nylon Fully Insulated 250 Disconnect Wire Range 12-10 Bolt Hole n/a
Vinyl 250 Female Disconnect Wire Range 22-16, Red, 1000 pack

KV18-250FD-M

Vinyl 250 Female Disconnect Wire Range 22-16, Red, 1000 pack

Frequently Asked Questions

What wire gauge is compatible with the KN18-110-20FD-M connector?

The KN18-110-20FD-M connector is designed for a wire range of 22-16 AWG.

What is the color of the ABB KN18-110-20FD-M connector?

The ABB KN18-110-20FD-M connector is red.

How many connectors are included in a package of KN18-110-20FD-M?

A package of KN18-110-20FD-M contains 1000 units.

Who is the manufacturer of the KN18-110-20FD-M disconnect connector?

The manufacturer of the KN18-110-20FD-M disconnect connector is ABB - Installation Products.

What type of connector is the KN18-110-20FD-M?

The KN18-110-20FD-M is a Nylon 110 Disconnect wire connector.
