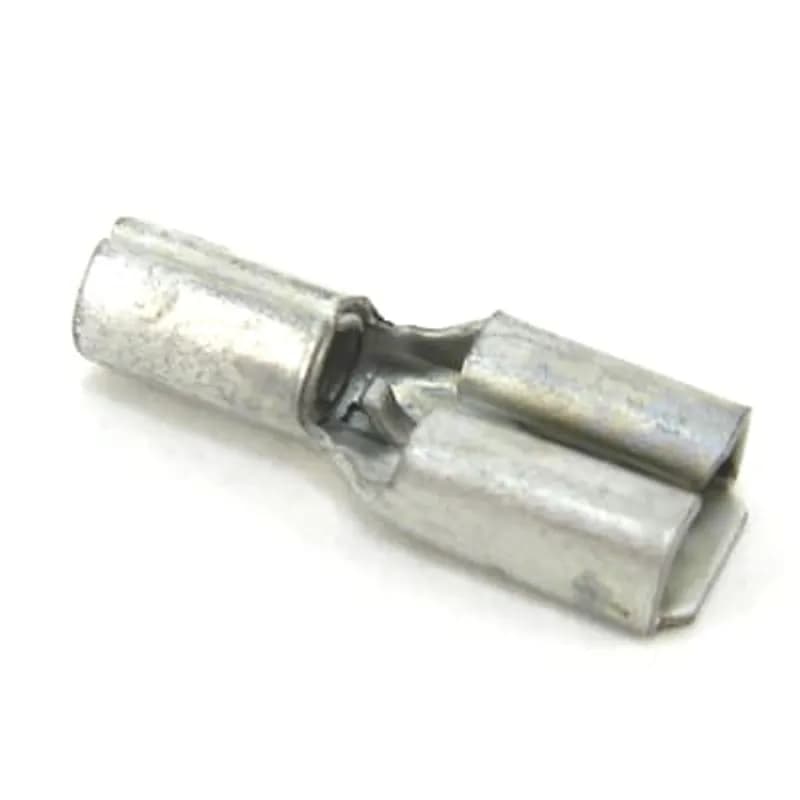

ABB - Installation Products AD182M - Non-Insulated Female Disconnect, Length .64 Inches, Width .23 Inches, Tab Size .187x.020, Wire Range #22-#18 AWG, Copper, Tin Plated, On Mylar Tape, 1,000 Pack

ABB Installation Products AD182M Non-Insulated Female Disconnect, Length .64 Inches, Width .23 Inches, Tab Size…

UPC: 786210850153


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AD182M is a non-insulated female disconnect terminal designed for reliable electrical connections. Manufactured by ABB - Installation Products, this terminal (SKU: AD182M) is constructed from copper with a tin plating for enhanced conductivity and corrosion resistance. It is supplied on Mylar tape, facilitating efficient automated application processes. Key specifications include a wire range compatibility of #22 to #18 AWG, making it suitable for a variety of smaller gauge wiring applications. The terminal measures .64 inches in length and .23 inches in width, with a tab size of .187 x .020 inches. This precise sizing ensures a secure fit with compatible male disconnects. This product is ideal for applications requiring secure, non-insulated wire terminations where space and precise fit are critical. The tin plating offers a durable surface for consistent electrical contact. Supplied in a convenient 1,000-piece pack, the AD182M supports high-volume manufacturing and assembly operations. Specifications: - SKU: AD182M - Manufacturer: ABB - Installation Products - Type: Non-Insulated Female Disconnect - Length: .64 Inches - Width: .23 Inches - Tab Size: .187x.020 Inches - Wire Range: #22-#18 AWG - Material: Copper - Plating: Tin Plated - Packaging: On Mylar Tape, 1,000 Pack - UNSPSC Code: 39121447
  • Non-insulated female disconnect terminal
  • Copper construction with tin plating
  • Wire range: #22-#18 AWG
  • Tab size: .187x.020 inches
  • Supplied on Mylar tape, 1,000 pack

Specifications

Finish
Tin Plated
Insulation
No
Material
Copper
Standard
UL E66716
Type
Non-Insulated Female Disconnect
Wire Size
22-18 AWG
Package Dimensions (L x W x H)
15.3 IN x 15.3 IN x 2.3 IN
Package Dimensions (L x W x H)
38.862 cm x 38.862 cm x 5.842 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
