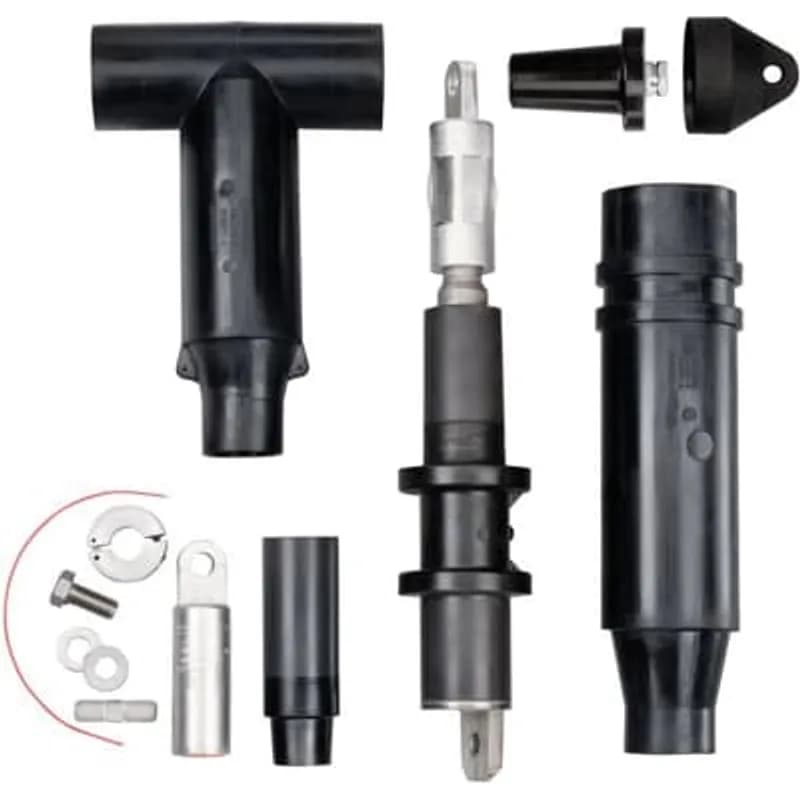

ABB Installation Products K656RLR-P0380-S 600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow with Test Point, Cable…
UPC: 075114378413
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 600 Amp, 15/25kV fully rated deadbreak replacement elbow
- Accommodates cable insulation diameters from 1.725" to 1.935"
- Aluminum compression lug for 700/750 kcmil stranded or 900 kcmil solid conductors
- Cold-shrinkable jacket seal for moisture and contaminant protection
- Integrated test point for safe circuit testing without de-energization
Specifications
Amperage Rating | 600 A |
Application | Used where Cable has been severed and is not long enough to reach the Elbow |
Color | Black |
Conductor Range | 700 to 750 kcmil , 900 kcmil |
Connection | Compression |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 31.56 in |
Length | 801.624 mm |
Material | Housing - EPDM-Rubber |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Rubber. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Non-Corrosive Capacitive Test Point. Cold Shrinkable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Replacement Elbow Connector with Test Point |
Voltage Rating | 15 to 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K656CY-L0380
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
K656ETP-N0380
600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
K655LRL0330-SG3
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size kcmil Compressed/Stranded 500 or Compact/Solid 600 or mm2 Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Spring Force Included.K656ETP-H0270
600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.K656ETP-L0380
600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.K656ETP-K0360
600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.K656ETP-K0330
600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.K656ETP-N0410
600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.Frequently Asked Questions
What is the maximum voltage rating for this deadbreak elbow?
The deadbreak elbow has a voltage rating of 15/25 kV.
What is the current carrying capacity of this elbow?
This elbow is rated for 600 Amps.
What cable insulation diameter range does this elbow support?
The elbow is designed for cable insulation diameters between 1.725 inches and 1.935 inches.
What type of conductor termination does this elbow use?
It features an aluminum compression lug for conductor termination.
What conductor sizes are compatible with the aluminum lug?
The aluminum lug is compatible with compressed stranded conductors sized 700/750 kcmil or compacted solid conductors up to 900 kcmil.
What series does this deadbreak elbow belong to?
This is a 600 Series deadbreak elbow.
What is the purpose of the test point on this elbow?
The test point allows for safe and convenient testing of the circuit without de-energizing the system.
What type of sealing mechanism is used on this elbow?
This elbow utilizes a cold-shrinkable jacket seal for environmental protection.
How to Install the K655RLR Shielded High-Voltage Connector
Install and assemble the K655RLR connector on compatible high-voltage cable and mating apparatus. This guide covers safe de-energized installation, cable preparation, connector assembly, grounding, and voltage testing.
Estimated time: 1h
Tools needed:
Hex wrench, Torque wrench with 9/16 in. socket, Hotstick, Suitable voltage sensing device, Approved safety solvent, Rag, Wire brush, Assembly tool 650ATY or 600RRT (if used)
Supplies needed:
Lubricant supplied with kit or Elastimold-approved lubricant, Cable adapter, Compression connector, Elbow, Receptacle housing, Insulating plug or mating part, Retaining ring, Bolt and washer prepack, Nylon venting rod, Test point cap, No. 14 AWG copper wire or equivalent, Suitable connectors for grounding, Tape marker, Silicone grease
- Prepare safely and inspect all parts
De-energize all apparatus before starting. Do not touch energized products. Check the package contents for completeness and damage, verify all components fit the cable and mating parts, and read the full instructions before proceeding. Keep the work area clean and have all tools and supplies ready.
- Assemble and lubricate the elbow and mating parts
Remove protective caps from the elbow and mating parts. Clean and lubricate the 'I' adapter and the inside of the elbow with the supplied or approved lubricant only. Insert the 'I' adapter into the elbow until the spade contact bottoms inside the elbow, and position the flat side of the 'I' contact away from the apparatus. If a threaded stud is needed on the mating part, hand tighten it into place, then clean and lubricate both mating surfaces.
- Connect the elbow to the mating apparatus
Align the elbow so the flat side of the 'I' contact faces away from the apparatus. Push the elbow onto the mating part and line up the hole in the 'I' adapter lug with the stud on the mating part. Engage the opposite end of the elbow with the mating part, hand tighten the threads, and torque the mating part according to its supplied instructions. Do not connect or disconnect mating products while energized.
- Prepare the cable and receptacle housing
Slide the receptacle housing onto the cable. Cut the cable 1 1/4 in. from the center of the bolt hole in the 'I' adapter, remove the semi-con shield 11 1/8 in. from the bolt hole center, and restore the shield with a semi-con sleeve if needed. Wrap two turns of tape 1 in. from the end of the semi-con shield as a marker, bevel the insulation end at a 45-degree angle about 1/4 in. back, and thoroughly clean the insulation with an approved safety solvent by wiping from the cable end toward the out
- Install the cable adapter and set conductor length
Apply lubricant sparingly to the cable and inside of the cable adapter. Slide the adapter small-end first over the cable with a twisting motion until it is flush with the tape marker. Trim protruding insulation even with the adapter end without nicking the adapter or conductor. Verify the exposed conductor length is between 4 9/16 in. and 5 5/8 in.; if not, redo the assembly.
- Install the retaining ring and compression connector
Assemble the aluminum retaining ring over the conductor and snug it firmly against the cable adapter. Tighten the socket head screw with the supplied hex wrench until the wrench twists, then confirm the exposed conductor measures 4 5/16 in. to 4 7/8 in. Remove the compression connector cap, wire brush aluminum conductor if used, and fully insert the conductor into the crimp barrel containing inhibitor.
- Align, crimp, and bolt the connector assembly
Bolt the crimp connector onto the 'I' adapter and tighten it to 25 ft-lb as a final check before crimping. Train the cable into its final position and mark alignment points on the retaining ring and crimp connector. Remove the bolted contact, confirm the marks align, crimp the connectors per the connector instructions, and rotate each crimp 90 or 180 degrees. Verify the distance from the end of the connector to the holding collar does not exceed 7 7/8 in. Then assemble the washers and bolt with,
- Secure the final splice and seat the receptacle
Align the flat surface of the 'I' adapter with the flat surface on the crimp connector with no gaps. Install the flat washer against the spade contact, then the Belleville washer concave side down, then the hex-head bolt. Hand tighten first, then torque the bolt to 50 to 60 ft-lb with a torque wrench and 9/16 in. socket. Do not move or reposition the assembly after tightening. Clean and lubricate the outside of the cable adapter and 'I' adapter, slide the receptacle housing into position, insert
- Use the assembly tool and ground the cable
Insert the nylon venting rod and, if using the 650ATY tool, place the U-shaped yoke over the 'I' adapter and the C-shaped yoke over the receptacle housing, then raise the handle to slide the housing over the splice section. If using the 600RRT tool, keep hands away from the threaded rod and guide shaft while turning the hex nuts to move the housing. Remove the vent rod, rotate the receptacle about 1/8 turn clockwise and then 1/8 turn counterclockwise to seat it, and connect No. 14 AWG copper or
