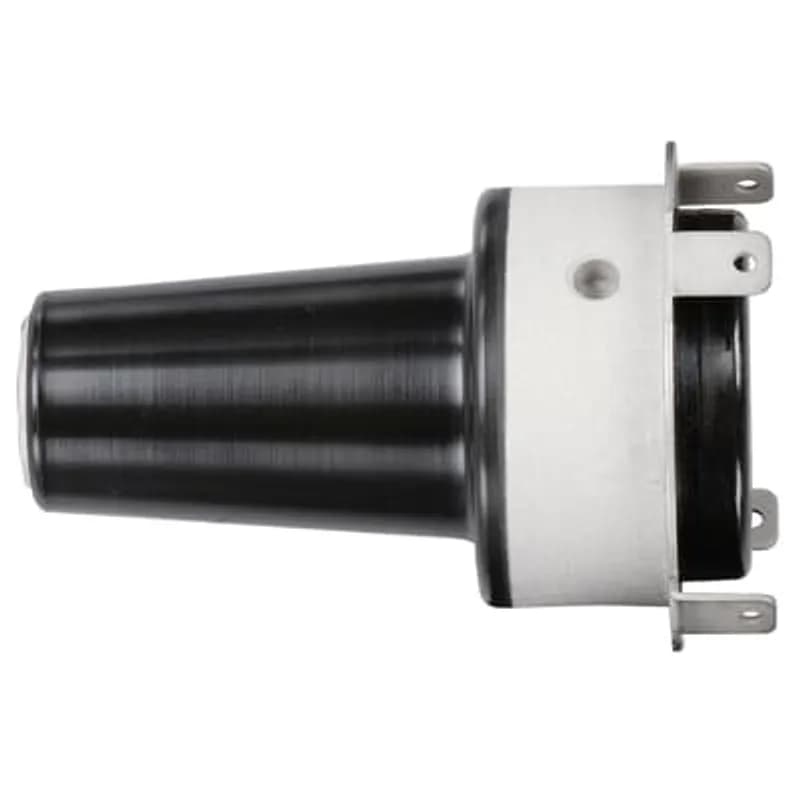

ABB Installation Products K650RTWS 15/25kV 600 Series Deadbreak Reducing Tap Well wih loose stud. Length 5.37 inch not…
UPC: 783786643462
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Rated for 15kV and 25kV class medium-voltage systems
- Deadbreak design for safe, load-break operation
- Loose stud for flexible installation and alignment
- Dimensions: 5.37" length (excl. stud), 3" width (excl. bracket)
- Part of ABB’s 600 Series, ANSI C119.4 and IEEE 386 compliant
Specifications
Connection | Push-In |
Size | 5.37 in |
Special Features | Loose Stud |
Type | Reducing Tap Well |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1000 L |
Package Weight (Metric) | 0.0450 kg |
J6-622226-25
6 Point Junction, with one 600 Amp Bushing Interfaces, four 200 Amp Bushing Well Interface and one 600 Amp Bushing Interface, 25kV, No Tilt Mounting.
K675RTWS
25kv, 900 Amp, Deadbreak, Reducing Tap Well with Loose Stud. Length 5.37 inch not counting Stud. Width 3 inch not counting bracket.
J3-626-25-SV-N
3 Point Junction, with one 600 Amp Bushing Interface, one 200 Amp Bushing Well Interface and one 600 Amp Bushing Interface, 25kV, SV - Optional 6-1/2 inch Centers. No Parking StandM656I-K0240-S
600 Amp, Separable Cable Joint, 35KV, Separable Straight Joint Package, 2-Way with Test Point, Dead Break, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. Cold-Shrinkable Jacket Seal Included.M656CY-HP-200
600 Amp, Separable Cable Joint, 35KV, Basic Housing Package, Wye Joint with Test Point, 200 KV BIL (basic insulation level)M655YDR-200
600 Amp, Separable Cable Joints, Insulated Cap with Bail, 35 KV, 200 KV BIL (basic Insulatiion level)Frequently Asked Questions
What is the momentary current rating?
The momentary current rating is 25kA Symmetrical for 10 Cycles for both 15kV and 28kV voltage classes.
How do I order the K650RTW?
To order the 15/25kV, 600A reducing tap well, specify the ordering number K650RTW.
What items are included in the K650RTW kit?
Each kit contains one K650RTW Reducing Tap Well, one tube of lubricant 82-08, and installation instruction IS-0230.
What standards does the K650RTW meet?
The K650RTW meets ANSI/IEEE Standard 386, Latest Revision.
What is the BIL impulse withstand for 28kV?
For the 28kV voltage class, the BIL impulse withstand is 140kV (1.2 x 50 microsecond wave).
What is the BIL impulse withstand for 15kV?
For the 15kV voltage class, the BIL impulse withstand is 95kV (1.2 x 50 microsecond wave).
What are the operating voltages for the 28kV class?
For the 28kV voltage class, the maximum phase-to-ground operating voltage is 16.2kV and the maximum phase-to-phase is 28kV.
What are the operating voltages for the 15kV class?
For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV and the maximum phase-to-phase is 14.4kV.
What are the continuous current ratings?
The K650RTW has a continuous current rating of 600 Amps for both 15kV and 28kV voltage classes.
What is the K650RTW product used for?
The K650RTW is a 15/25kV 600A Deadbreak Reducing Tap Well. It permits a 200A deadbreak or loadbreak tap-off from a 600A connector.
How to Install 15/25/35kV 600/900 AMP Deadbreak Plug and Well Products
This guide provides step-by-step instructions for the safe installation and initial setup of 15/25/35kV 600/900 AMP Deadbreak Plug and Well Products. Always ensure all apparatus is de-energized and follow high-voltage safety practices to prevent serious or fatal injury.
Estimated time: 1h
Tools needed:
Torque wrench, ELASTIMOLD 600SW spanner wrench, Hotstick
Supplies needed:
Lubricant (supplied, DO NOT SUBSTITUTE), HV insulated cap(s) or connector(s), Silicone lubricant
- Prepare for Installation and Inspect Parts
DANGER: Ensure all apparatus is de-energized during installation or removal of parts. Inspect all package contents and components for damage, proper rating, and compatibility with mating parts. If the product was supplied with protective shipping covers, remove them and replace with the appropriate HV insulated cap(s) or connector(s) before submerging or energizing the circuit.
- Prepare Plug/Well and Lubricate
Remove any protective caps from the plug or well product. If the 600amp mating interface is not equipped with a stud, hand tighten the stud into the 600amp interface on the plug or well. Lubricate both the elbow and its mating part as indicated with the supplied lubricant. DO NOT SUBSTITUTE other lubricants. Ensure all surfaces of the elbow and mating parts remain clean.
- Mate Plug/Well with Elbow/Bushing Extension
Push the plug or well firmly into the elbow or bushing extension until the threads engage securely.
- Torque Tighten the Connection
For an Insulating Plug, use a torque wrench and tighten, exerting 50 to 60 foot-pounds of torque. For a Connector Plug, Tap Plug, or Tap Well, use a torque wrench with an ELASTIMOLD 600SW spanner wrench; the indicated torque should be from 40 to 48 foot-pounds. Refer to special instructions IS-0915 for K651 and 750 Rubber Connecting Plugs.
- Install Voltage Detection Cap (if applicable)
If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap on the elbow and push down hard until it snaps into place. Proceed to the voltage test directions.
- Perform Voltage Test
Remove the test point cap with a hotstick, peeling it off at an angle rather than pulling directly in line. WARNING: The voltage test point is a capacitance device and not directly connected to the conductor. Do not use conventional voltage measuring equipment. Follow the manufacturer’s directions for a suitable sensing device designed for capacitive test points. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means to prevent serious or fatal injury. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
