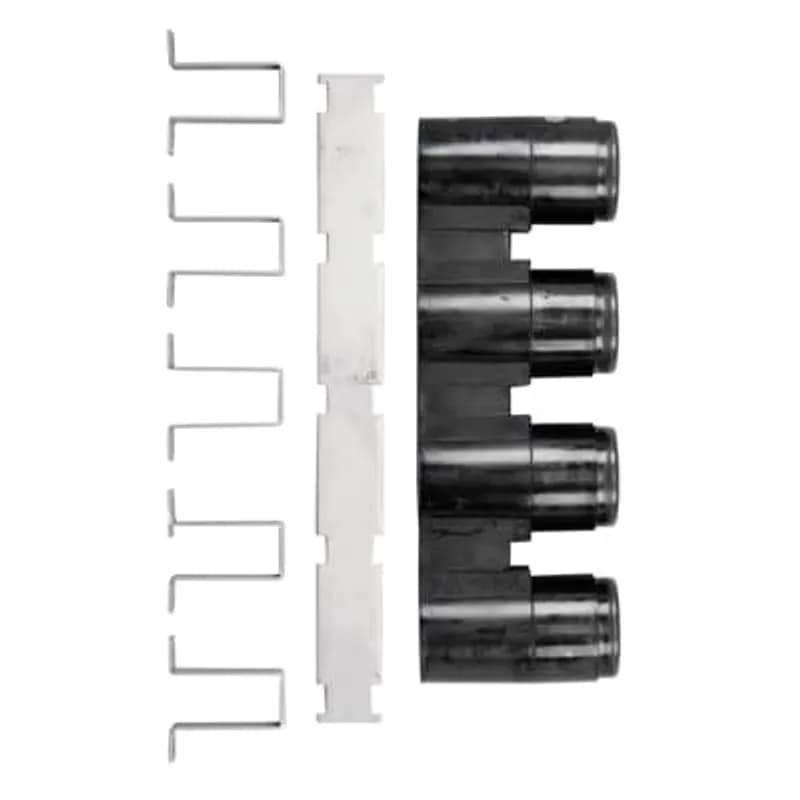

ABB Installation Products K1601WJ4-51 15/25 kV, 200 Amp Loadbreak, 4-Way Well Junction with Hold Down Straps, but without…
UPC: 783786357451
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25 kV voltage rating for medium voltage applications
- 200 Amp loadbreak capability for controlled switching
- 4-way well junction configuration for multiple cable connections
- Includes hold down straps for secure installation
- Manufactured by ABB - Installation Products (SKU: K1601WJ4-51)
Specifications
Application | 15/25 kV, 200 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Well Junction 4-Way |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.0000 L |
Package Weight (Metric) | 1.3610 kg |

150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
600-403-2
Base Plate, 600 Amp Junctions, 19 inch x 6-3/4 inch x 5/8 inch thick with notched corners. 304 Stainless Steel. Two Rows of Three Slots 1 inch x 9/16 inch on 8 inch x 5-1/2 inch Centers.
K1501J4U-8-6
200 Amp, 15/25kV, Deadbreak Elbow, 4 Point Junction. Bails are required but not included, order separately. Center to Center spacing equals 4 inches. Stainless Steel Mounting Bracket.
650-J3-6
600 Amp, 15/25kV, Bracket for Junction, 3 Point. Includes Base Bracket Assembly, Base Plate, Universal Mounting Prepack, Silicone Lubricant.
K1501J3U-8-6
200 Amp, 15/25kV, Deadbreak Elbow, 3 Point Junction. Bails are required but not included, order separately. Center to Center spacing equals 4 inches.
K1601WJ3-51
15/25 kV, 200 Amp Loadbreak, 3-Way Well Junction with Hold Down Straps, but without Stainless Steel BracketFrequently Asked Questions
What is the K1601WJ4 product type and rating?
The K1601WJ4 is a 15/25kV, 200 Amp Loadbreak 4-Way Well Junction with a stainless steel bracket.
What are the operating voltages for the 25kV class?
For the 25kV class, the maximum Phase-to-Ground operating voltage is 15.2kV, with a maximum Phase-to-Phase of 26.3kV.
How do I order the K1601WJ4 junction?
Specify K1601WJ4 for the 15/25kV, 200 Amp, 4-way Loadbreak Junction. Add "-5" for "U" style mounting straps.
What items are included in the K1601WJ4 kit?
The kit includes one basic molded junction (K1601WJ4-4), mounting hardware (K1601WJ4-6), a tube of lubricant (82-08), and installation instructions (IS-0491).
What is the momentary and fault close rating?
The momentary and fault close rating for both voltage classes is 10kA Symmetrical for 10 Cycles.
What is the AC one-minute withstand rating for 25kV?
For the 25kV voltage class, the AC one-minute withstand is 40kV.
What is the impulse withstand rating for the 25kV class?
For the 25kV voltage class, the impulse withstand (BIL) is 125kV.
What is the AC one-minute withstand rating for 15kV?
For the 15kV voltage class, the AC one-minute withstand is 34kV.
What is the impulse withstand rating for the 15kV class?
For the 15kV voltage class, the impulse withstand (BIL) is 95kV.
What is the continuous current rating for the junction?
The continuous and loadbreak current rating for both 15kV and 25kV voltage classes is 200 Amp.
