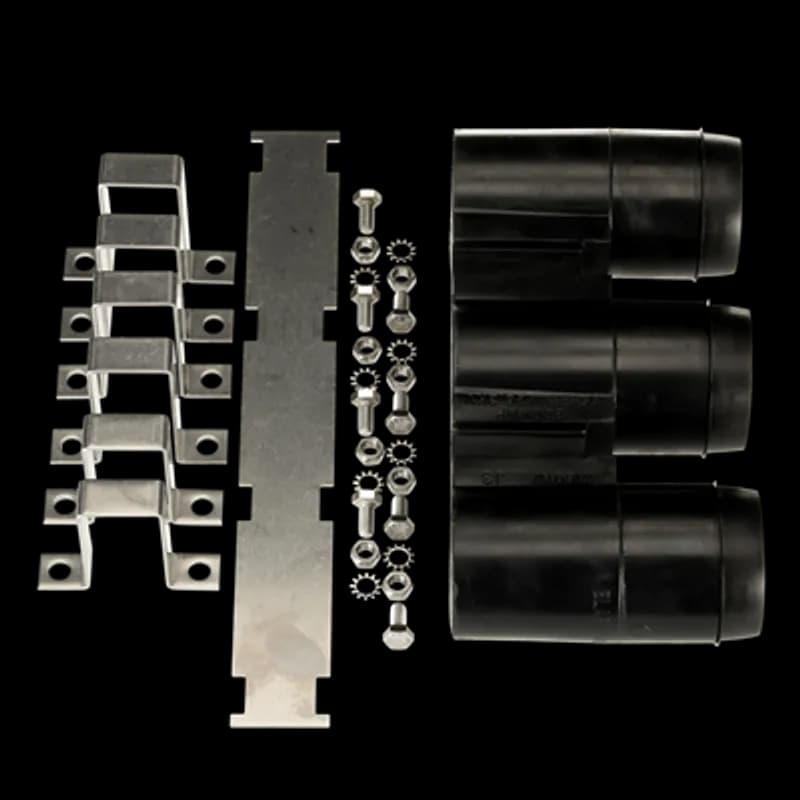

ABB - Installation Products K1601WJ3-51 - 15/25 kV, 200 Amp Loadbreak, 3-Way Well Junction with Hold Down Straps, but without Stainless Steel Bracket
More images

ABB Installation Products K1601WJ3-51 15/25 kV, 200 Amp Loadbreak, 3-Way Well Junction with Hold Down Straps, but without…

UPC: 783786357468


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K1601WJ3-51 is a 3-way loadbreak well junction designed for reliable power distribution in medium voltage applications. This unit operates at a voltage rating of 15/25 kV and handles a continuous current of 200 Amps, making it suitable for a variety of industrial and utility settings. The 3-pole configuration allows for the termination of multiple circuits from a single junction point. Its loadbreak connection type ensures safe and controlled switching operations, a critical feature for maintaining system integrity and personnel safety during maintenance or operational changes. Mounting is facilitated by integrated hold-down straps, providing a secure and stable installation without the need for a separate stainless steel bracket. This simplifies the installation process and reduces component requirements. The K1601WJ3-51 is manufactured by ABB, a recognized leader in electrical infrastructure. This junction is a key component for managing power flow in substations, industrial plants, and distribution networks where robust and dependable connections are paramount. Its specifications are tailored for applications requiring a 200A loadbreak capability at 15/25 kV, offering a practical and efficient solution for circuit management. The absence of a stainless steel bracket in this specific SKU (K1601WJ3-51) means it is intended for installations where alternative mounting or bracket solutions are already in place or preferred. This product adheres to the UNSPSC code 26121630, categorizing it within electrical connectors and accessories. Ensure compatibility with your existing system's voltage and current requirements before deployment.
  • Voltage Rating: 15/25 kV
  • Current Rating: 200 A
  • Configuration: 3-Way
  • Connection Type: Loadbreak
  • Mounting: Hold Down Straps

Specifications

Application
15/25 kV, 200 Amps
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Well Junction 3-Way
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
5.7100 L
Package Weight (Metric)
2.5900 kg
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.

150-TB-2

15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
HMI door mounting kit with 15M cable

181B2258

HMI door mounting kit with 15M cable
Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V

103350-4

Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V
Protective Shipping Cap for 200 Amp, 15/25 kV, Deadbreak Bushing, Black Elastimeric Polyethylene. Length 2.45 inch, Inside Diameter 1.885 to 1.210 inch. Flange.

180-PPC

Protective Shipping Cap for 200 Amp, 15/25 kV, Deadbreak Bushing, Black Elastimeric Polyethylene. Length 2.45 inch, Inside Diameter 1.885 to 1.210 inch. Flange.
200 Amp, 25kV, Loadbreak 3 Point Junction.

274J3-6

200 Amp, 25kV, Loadbreak 3 Point Junction.
200 Amp, 25kV, Loadbreak Extended Bushing Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.

2702A1WB

200 Amp, 25kV, Loadbreak Extended Bushing Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
Shield Plate, J4, 304 Stainless Steel, 16 inch x 3.5 inch x 16 Gage thick. No Holes.

650-278-3

Shield Plate, J4, 304 Stainless Steel, 16 inch x 3.5 inch x 16 Gage thick. No Holes.
Electro Tin Plated Aluminum Contact for K655/656CCP. Length 5.578 inch x 1.125 inch Diameter. Tapped 5/8-11 UNC-2B by 1 inch Deep. G12243

650-648

Electro Tin Plated Aluminum Contact for K655/656CCP. Length 5.578 inch x 1.125 inch Diameter. Tapped 5/8-11 UNC-2B by 1 inch Deep. G12243

Frequently Asked Questions

What are the key features of the K1601WJ3?

It is a 15/25kV, 200 Amp Loadbreak 3-Way Well Junction with a fully shielded, submersible molded rubber housing.

What is the operating voltage for 15kV class?

For the 15kV voltage class, the operating voltage is 8.3kV Phase-to-Ground.

How do I order with "U" style mounting straps?

To order junctions with "U" style mounting straps, add "-5" at the end of the catalog number.

How do I order the K1601WJ3 junction?

To order, specify K1601WJ3 for the 15/25kV, 200 Amp, 3-way Loadbreak Junction.

What is the momentary and fault close rating?

The momentary and fault close rating for both 15kV and 25kV classes is 10kA Sym for 10 cycles.

What is the continuous and loadbreak current rating?

The continuous and loadbreak current rating for both 15kV and 25kV classes is 200 Amp.

What is the operating voltage for 25kV class?

For the 25kV voltage class, the maximum phase-to-ground operating voltage is 15.2kV.

What industry standard does the junction meet?

The K1601WJ3 junction meets ANSI/IEEE Standard 386, Latest Revision.

What is the maximum inclination for mounting?

The supplied brackets accommodate curved or flat surfaces and provide up to 60° of inclination.

Which specific Elastimold products are compatible?

The K1601WJ3 mates with Elastimold products like 1601A4, 2701A4, 1602A3R, and 276BWP.

Frequently Asked Questions about ABB - Installation Products

How are Thomas and Betts products typically installed?

Thomas and Betts products are installed using a variety of methods tailored to specific applications, including the use of flexible cords and cable fittings, non-metallic cable glands, and armored cable fittings. Proper selection of fittings is crucial to match the cable type and installation environment, ensuring durability and preventing physical damage. Tools such as the Blackburn® Comfort Crimp® and HEX-FLEX® systems enhance installation efficiency and reliability, reducing labor time and ensuring secure connections.

What accessories are available for Thomas and Betts products?

Thomas and Betts offers a comprehensive range of accessories for their products, including various cord and cable fittings, non-metallic cable glands, service entrance cable fittings, and armored cable fittings. Their accessories are designed to enhance installation efficiency and ensure compatibility with different cable types and environmental conditions, providing reliable connections for a wide array of applications.

What environmental ratings do Thomas and Betts products have?

Thomas and Betts products feature robust environmental ratings, including NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications, as well as IEC 60529 IP66 protection. These ratings ensure that their products are designed to withstand harsh industrial environments, with capabilities to resist dust, water, and corrosion, and operate effectively in a wide temperature range.

What communication protocols do Thomas and Betts products support?

Thomas and Betts products support a wide range of industrial communication protocols, including Ethernet, DeviceNet, PROFIBUS, Modbus, CANopen, and others. This extensive compatibility ensures seamless integration and reliable communication across various industrial automation systems, catering to diverse application needs.

What are the key features of Thomas and Betts products?

Thomas and Betts products are known for their innovative designs, high performance, and compliance with industry standards such as the National Electrical Code and Underwriters' Laboratories. They offer a comprehensive range of rugged and reliable electrical fittings, including liquidtight and dust-tight connections, which enhance installation efficiency and reduce overall project costs. Their products are engineered for durability in harsh environments, ensuring long-term reliability and lower installed costs.

What are the main product lines offered by Thomas and Betts?

Thomas and Betts offers a comprehensive range of product lines including electrical connectors, cable management systems, grounding and bonding solutions, and industrial automation components. Their products are designed for durability and reliability in demanding industrial environments, ensuring optimal performance and safety across various applications.

What technical support does Thomas and Betts offer?

Thomas and Betts offers comprehensive technical support, including access to field application engineers for onsite training and installation assistance. Their technical support staff is available to address inquiries related to product specifications and installation practices, ensuring optimal performance and safety of electrical systems. Additionally, they provide a variety of training programs to enhance the knowledge and skills of users in the field.

What industries and applications are Thomas and Betts products used for?

Thomas and Betts products are utilized across various industries including electrical construction, industrial automation, telecommunications, and utilities. Their extensive range of cord and cable fittings, electrical boxes, and metal framing systems are designed for applications that require durability and reliability in harsh environments, ensuring optimal performance in both permanent and temporary installations.

What certifications and standards do Thomas and Betts products comply with?

Thomas and Betts products comply with critical international certifications including UL (Underwriters Laboratories), CSA (Canadian Standards Association), and CE (European Community). Our products are designed to meet rigorous industrial standards such as NEMA enclosure ratings and IEC 60529 IP ratings, ensuring safety and reliability across various industrial applications.
