Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp current rating
- 25 kV voltage rating
- 3-pole configuration
- Loadbreak connection type
- ABB 274J series
Specifications
Application | 25 kV, 200 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Junction 3-Point |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 9.0000 L |
Package Weight (Metric) | 4.0820 kg |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.
775BIPSP
35kV, 900Amp, Deadbreak, Insulating Plug with Cap, Factory assembled Stud, which is not field removable.
775CPSP
35kV, 900Amp, Deadbreak, Connecting Plug, use 600ATM assembly tool. Factory assembled Stud, which is not field removable.675ETPSP
900 Amp, 15kV, Loadbreak Elbow Tap Plug, Factory assembled Stud, which is not field removable. Copper.Frequently Asked Questions
Are installation instructions included with the 274J3 kit?
Yes, one set of installation instructions (IS-0798) is included in each kit.
Which industry standard does the 274J3 meet?
The 274J3 meets ANSI/IEEE Standard 386, Latest Revision.
Is the 274J3 junction submersible?
Yes, the 274J3 junction has a fully shielded, fully submersible molded rubber housing.
What is the continuous and loadbreak current rating?
The 274J3 is rated for 200 Amp continuous and loadmake/loadbreak operation.
What is the operating voltage for the 274J3?
The operating voltage for the 274J3 is 15.2kV Phase-to-Ground, suitable for 25kV class distribution systems.

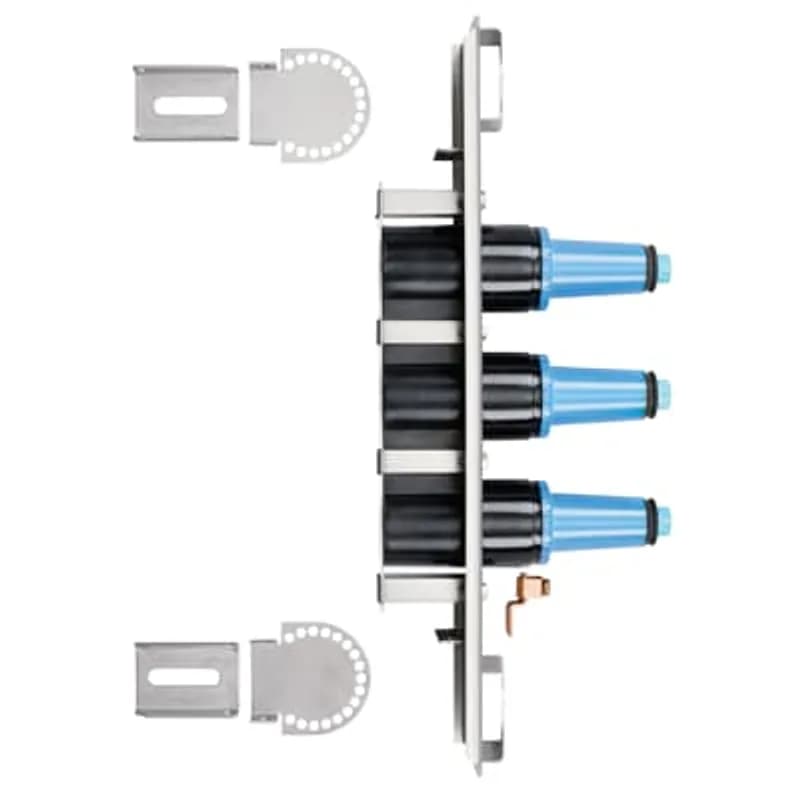

What is the 274J3 product?
The 274J3 is a 25kV, 200 Amp Loadbreak 3-Way Junction with a stainless steel bracket. It features a fully shielded, fully submersible molded rubber housing.
What is the continuous and loadbreak current rating?
The 274J3 is rated for 200 Amp continuous and loadmake/loadbreak operation.
What is the 274J3 product?
The 274J3 is a 25kV, 200 Amp Loadbreak 3-Way Junction with a stainless steel bracket. It features a fully shielded, fully submersible molded rubber housing.
What is the operating voltage for the 274J3?
The operating voltage for the 274J3 is 15.2kV Phase-to-Ground, suitable for 25kV class distribution systems.
Is the 274J3 junction submersible?
Yes, the 274J3 junction has a fully shielded, fully submersible molded rubber housing.
How to Install the 274J3-6 Loadbreak Junction
Instructions for installing and connecting the 274J3-6 two, three, or four-point loadbreak junctions.
Estimated time: 45m
Tools needed:
Drill, Wrench
Supplies needed:
Mounting hardware, Grounding lug (if mounting surface is not conductive), Ground wire (14AWG minimum), Lubricant, Mating products (elbows or caps), Round yellow marker
- Determine mounting location and drill holes
Select the desired location for the junction assembly. Drill holes in the mounting surface according to the dimensions provided in the diagram for J2, J3, or J4 configurations.
- Assemble and mount the junction
Assemble the loadbreak junction, shield plate, and hold down brackets using the supplied fasteners. Attach the assembly to the flat mounting surface and securely tighten all fasteners to prevent movement during operation. Ensure the shield plate, hold down brackets, and conductive rubber shield are grounded. If the mounting surface is not conductive or grounded, attach a grounding lug (not provided) with one of the mounting bolts and connect a ground wire (14AWG minimum) to the lug and a ground bus.
- Prepare and connect mating products
Thoroughly clean the bushing interface of any contaminants and lubricate it with the supplied lubricant. Install the mating products (insulated caps or elbow connectors) to the bushing insert, following the instructions provided with those mating products. Apply the provided round yellow marker to the mounting surface where it will be visible to the operator.
- Verify seating of connected products
Confirm that the insulated cap or elbow connector is fully seated. This is indicated when no portion of the yellow band is visible when viewed from the side.
