Contact for Pricing

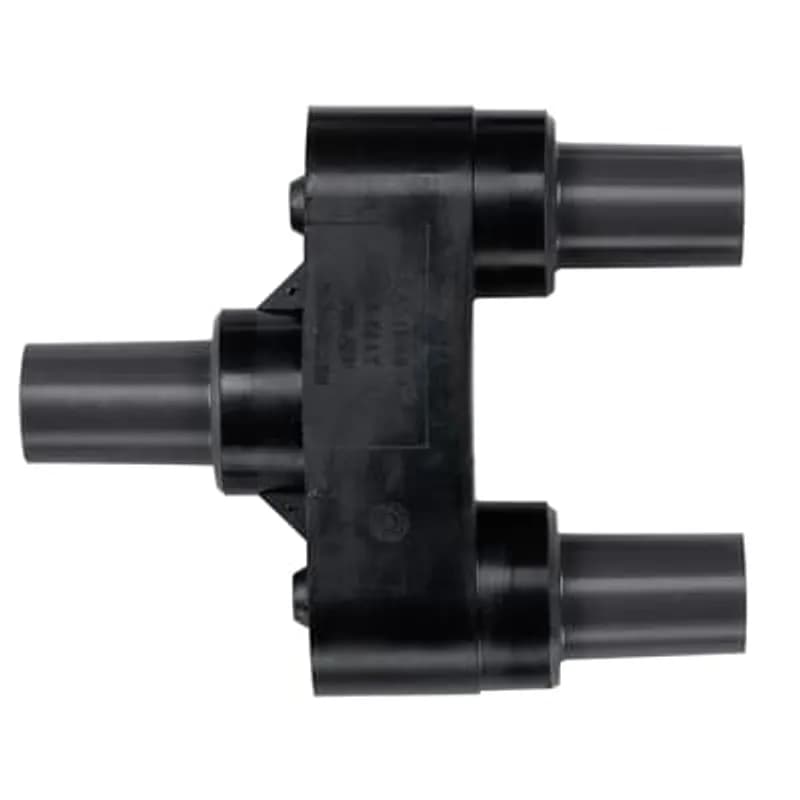

Overview
- 200 Amp current rating
- 15/25kV voltage class
- Locking Y splice design (bails not required)
- Accommodates 0.805" - 1.060" cable insulation diameter
- Includes aluminum compression lug for 4/0 AWG / 250 kcmil conductors
Specifications
Amperage Rating | 200 A |
Application | Used where a new tap is required on an existing cable or where a Y-joint is required in a new cable installation |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 22.3 in |
Length | 566.42 mm |
Material | Housing - EPDM-Rubber |
Special Features | Permanent Locking Apparatus, Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide Cured Construction includes Insulation and Conductive EPDM Materials |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Locking Splice with Test Point |
Voltage Rating | 15 to 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
CI16-90-AT8PL
Hinged Connector Interface Fitting, Standard Profile Plug, 90 Degree Elbow with 360 Degree Swivel, 8-Way Ampseal Automotive Connector to Conduit, Conduit Size NC16/NW13, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.Frequently Asked Questions
What is the maximum cable insulation diameter for this splice?
The K151LY-C1270 is designed to accommodate cable insulation diameters from 0.805 inch to 1.060 inch.
What conductor sizes are compatible with this splice?
This splice is compatible with compressed stranded conductors sized 4/0 AWG or 250 kcmil (126.67 mm²).
Does this splice require separate bails?
No, the Locking Y splice design for the K151LY-C1270 means that bails are not required for installation.
What is the voltage rating of the ABB K151LY-C1270?
The ABB K151LY-C1270 DeadBreak elbow splice has a voltage rating of 15/25kV.
What type of lug is included with this splice?
The K151LY-C1270 includes an aluminum compression lug for connecting the conductor.
