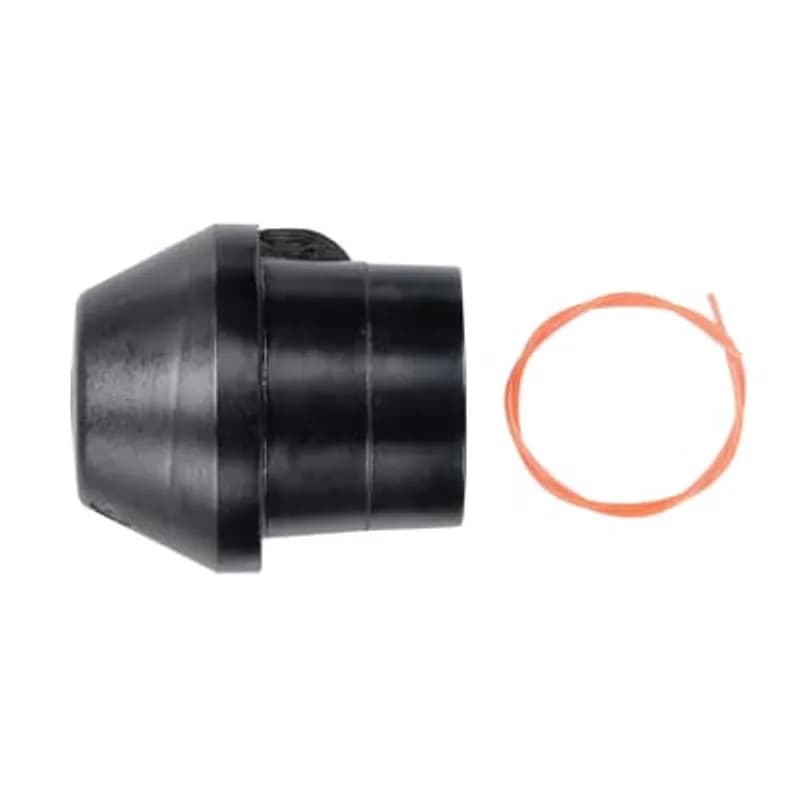

K150DR-CS2075

Bails are required for the K150DR but are not included in the kit and must be ordered separately.

The K150DR is a fully shielded, fully submersible insulating cap designed for de-energized operation.

The K150DR is suitable for use on 15kV and 25kV class systems.

The K150DR is used to "dead-end" Elastimold K150T, K150 Junctions, and K151SP Straight Plugs.

The K150DR has a continuous current rating of 200 Amp for both 15kV and 25kV class systems.

The momentary and fault close rating for the K150DR is 10kA Symmetrical for 10 cycles.

For 15kV class systems, the maximum phase-to-ground operating voltage is 8.3kV.

For 25kV class systems, the maximum phase-to-ground operating voltage is 15.2kV.

For 15kV class systems, the Basic Impulse Level (BIL) is 95kV.

For 25kV class systems, the Basic Impulse Level (BIL) is 125kV.
