UPC: 783786802883
Documents & Media
Contact for Pricing
Overview

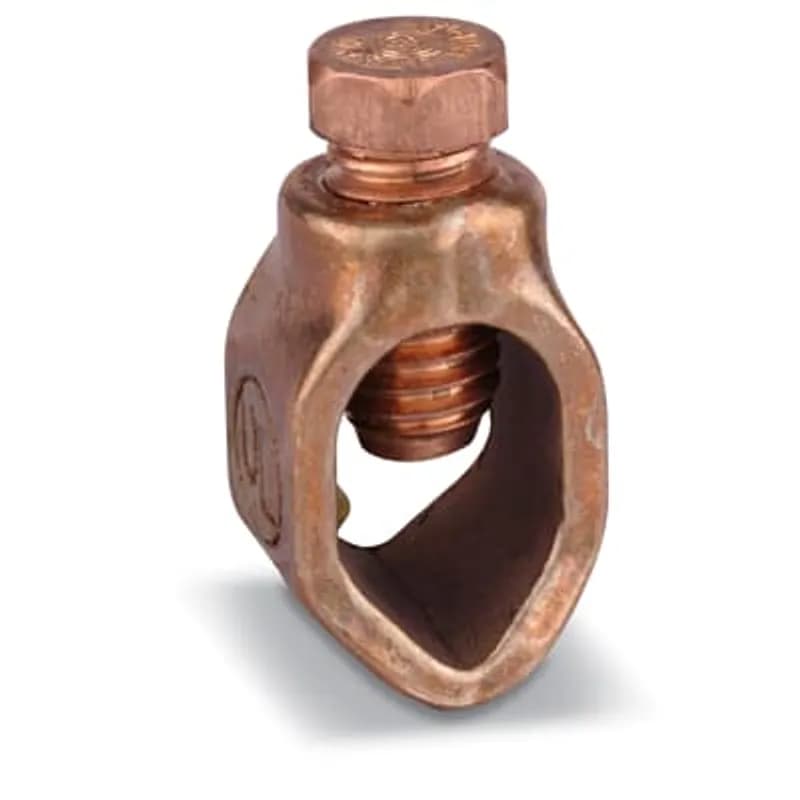

- Designed for 1 inch diameter ground rods
- Accommodates wire sizes from 8 AWG solid to 4/0 AWG stranded
- Features a secure hex head bolt for robust connections
- Manufactured by ABB - Installation Products
- Ensures reliable electrical grounding
Specifications
Conductor Material | Copper |
Insulation | No |
Special Features | Cast of high-strength corrosion-resistant copper alloy. UL listed for direct burial |
Standard | UL E3060 |
Type | Ground Rod Clamp |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2300 L |
Package Weight (Metric) | 0.1040 kg |
GG40250-2030
E-Z-Ground Ground Grid Copper Compression Connector, Cable Range 4/0 or 250 kcmil, Ground Rod 1/2 and 5/8 Inch, Direct Burial
80024
Grounding pigtail with an insulated lead and a GSH grounding screw on one end. It is designed to make grounding an electrical circuit fast and easy. The lead is 9 inches long and uses 10 AWG wire.
JAB58HP
Hex Head Screw Ground Rod Clamp - Rod 5/8 inch, Wire Range 1/0 Stranded - 8 Solid, Tin Plated
SP4SL
Long Stud Single Service Post Connectors for Conductors 1 - 8 Stranded, 2 - 8 Solid, Stud Size 3/8 - 16 x 1 1/8Frequently Asked Questions
Is the JAB1H ground clamp UL listed?
No, the JAB1H ground clamp is not UL listed.
What is the screw thread size for JAB1H?
The screw thread size for the JAB1H ground clamp is 7/16-14 UNC-2A.
What is the wire range for the JAB1H clamp?
The JAB1H clamp accommodates a wire range from 4/0 STR. (107.1 mm) maximum to 8 SOL. (8.3 mm) minimum.
What is the nominal rod diameter for JAB1H?
The JAB1H ground clamp is designed for a nominal rod diameter of 1 inch (25.0 mm).
Is the JAB1H ground clamp UL listed?
No, the JAB1H ground clamp is not UL listed.
What is the screw thread size for JAB1H?
The screw thread size for the JAB1H ground clamp is 7/16-14 UNC-2A.
What is the nominal rod diameter for JAB1H?
The JAB1H ground clamp is designed for a nominal rod diameter of 1 inch (25.0 mm).
What is the wire range for the JAB1H clamp?
The JAB1H clamp accommodates a wire range from 4/0 STR. (107.1 mm) maximum to 8 SOL. (8.3 mm) minimum.
Is the JAB1H ground clamp UL listed?
No, the JAB1H ground clamp is not UL listed.
What is the nominal rod diameter for JAB1H?
The JAB1H ground clamp is designed for a nominal rod diameter of 1 inch (25.0 mm).
