UPC: 786210893198
Contact for Pricing
Overview

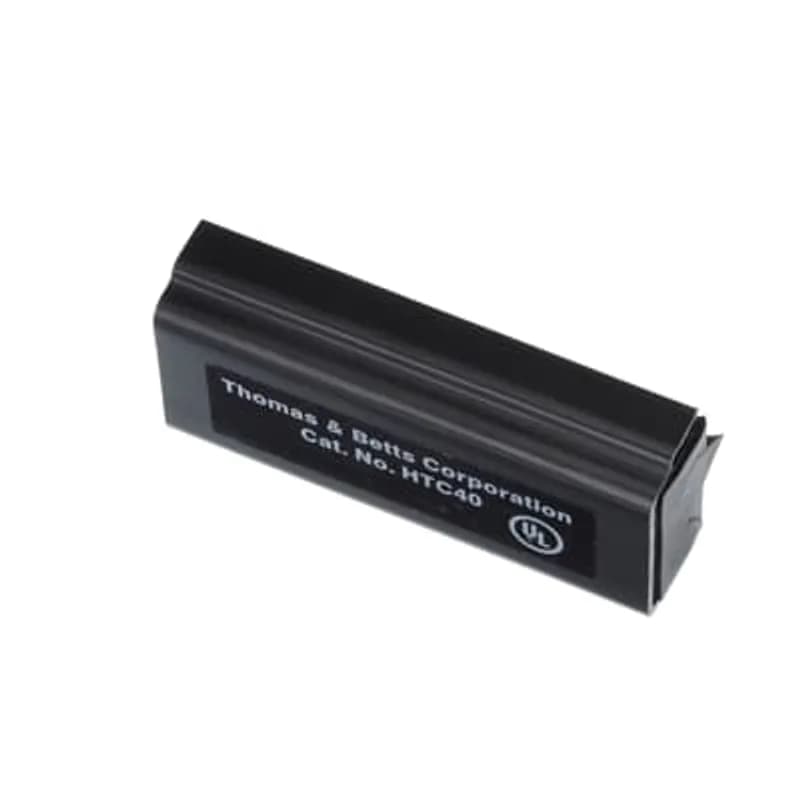

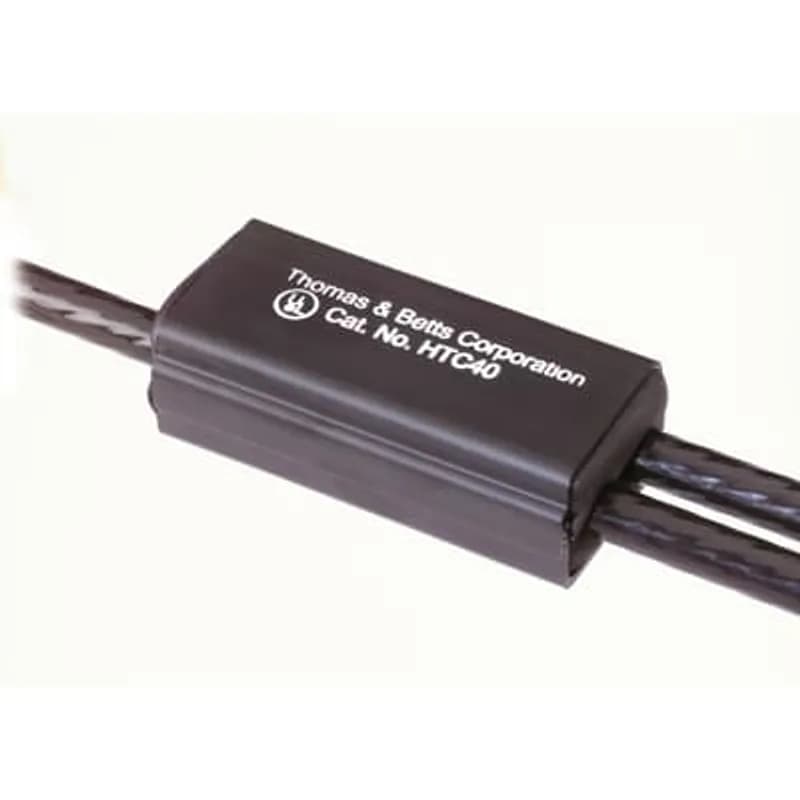

- Rated for 600V maximum and 90°C maximum operating temperature
- High-impact black thermoplastic Noryl outer shell with UL 94V-0 flame rating
- Black neoprene sponge inner seal (oxygen index 28%, UL 94 HBF) for environmental sealing
- Dual self-latching spring-loaded design with two UL 94V-0 rated cable ties for secure assembly
- Low-profile design (2" L x 1⅛" T x 1⅛" W) with 360° visibility of crimped connections
- Integrated label retainer strips for bidirectional label viewing
- Flexible end fingers prevent foreign object entry and protect conductor insulation
- Part number, voltage, and temperature ratings molded into cover for identification
Specifications
Color | Black |
Special Features | Interlocking insulating covers for H-type compression taps. Can also be used on C-Taps |
Standard | UL E9809 |
Type | Splice Insulators and Insulating Covers |
Voltage Rating | 600 V |
Package Dimensions (L x W x H) | 2.75 IN x 6.25 IN x 3.62 IN |
Package Dimensions (L x W x H) | 6.985 cm x 15.875 cm x 9.1948 cm |
Package Weight (Imperial) | 0.010 L |
Package Weight (Metric) | 0.005 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
HT40C

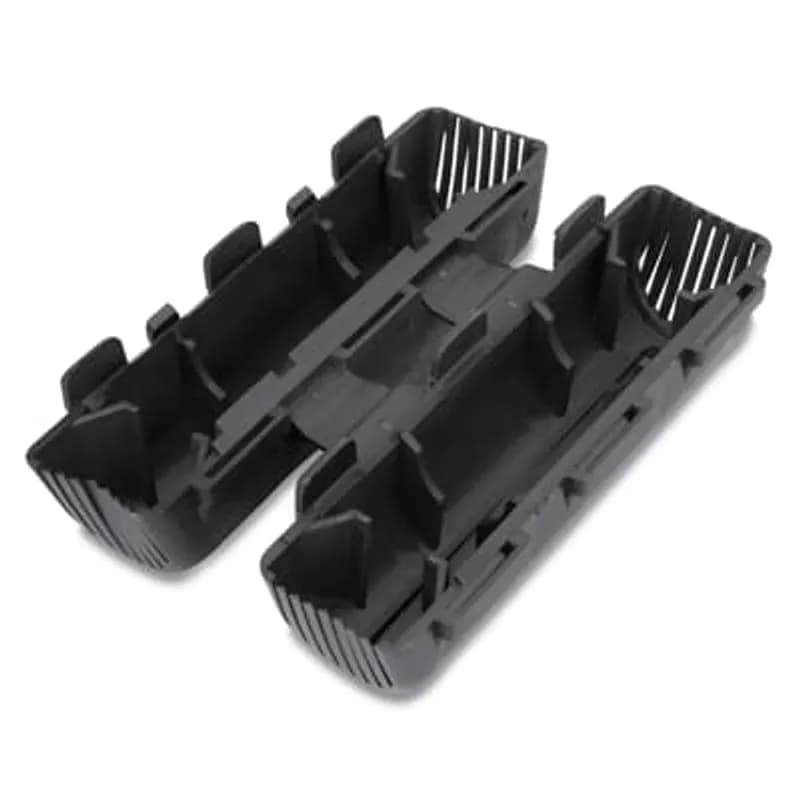

H-Tap Insulating Soft Cover for Cable Range 6 - 4/0 AWG for H-Taps 63140, 63148, Rated 600V, 90 degrees C, Material: Polypropylene, Black
CTP202
E-Z-Ground C-Taps Copper Compression Connector for Cable Range #1 Str. - 2/0 Str., Tap #6 Sol. - #2 Str.
CTP500500
E-Z-Ground C-Taps Copper Compression Connector for Cable Range 300 - 500 kcmil, Tap 300 - 500 kcmilCTP500250
E-Z-Ground C-Taps Copper Compression Connector for Cable Range 300 - 500 kcmil, Tap 3/0 Str. - 250 kcmilCTP2020
E-Z-Ground C-Taps Copper Compression Connector for Cable Range #1 Str. - 2/0 Str., Tap #1 Str. - 2/0 Str.CTP22
E-Z-Ground C-Taps Copper Compression Connector for Cable Range #6 Sol. - #2 Str., Tap #6 Sol. - #2 Str.CTP50020
E-Z-Ground C-Taps Copper Compression Connector for Cable Range 300 - 500 kcmil, Tap #6 Sol.- 2/0 AWGHow to Install the HTC2S Connector
This guide provides step-by-step instructions for installing and wiring the HTC2S connector for optimal performance.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the connector
Secure the HTC2S connector to the designated mounting surface using the provided mounting screws. Ensure it is firmly attached and level.
- Connect the wiring
Strip the ends of the wires using wire strippers and connect them to the appropriate terminals on the HTC2S connector. Ensure that the connections are tight and secure.
- Verify the connections
Use a multimeter to check the continuity of the connections. Ensure that there are no short circuits and that the wiring is correctly configured.
