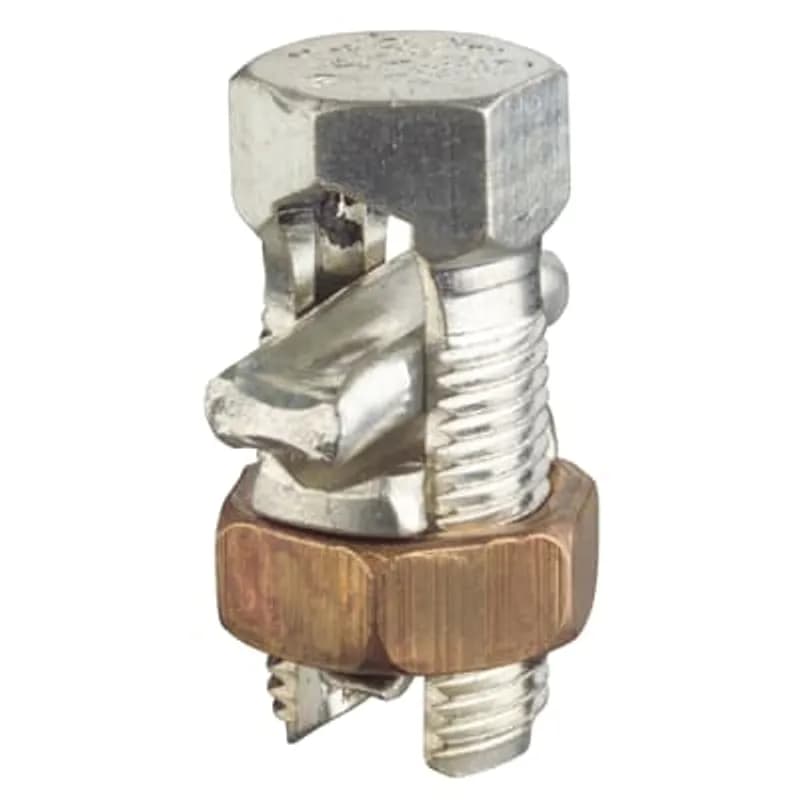

ABB - Installation Products H40HPS - Type HPS Split-Bolt Connector with Spacer, for Use on Copper, Aluminum, ACSR Conductors, Conductor Range for Equal Main and Tap ACSR 4/0-4, Copper and Aluminum Conductor Range for Equal Main and Tap 4/0 Str-4 Sol, Copper and Aluminum Conductor Range for Minimum Tap with One Max Main 4 Sol, Tin Plated
ABB - Installation Products

H40HPS

UPC: 783786950683

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB H40HPS Split-Bolt Connector with Spacer (SKU: H40HPS) is a heavy-duty electrical connector engineered for secure, long-lasting splices on copper, aluminum, and ACSR (Aluminum Conductor Steel Reinforced) conductors. Designed for equal main and tap connections, this connector accommodates conductor sizes from 4/0 AWG down to 4 AWG for ACSR, and 4/0 Stranded to 4 Solid for copper and aluminum. It also supports minimum tap configurations with one maximum main conductor of 4 Solid, providing versatility for complex wiring setups. Constructed with a high-strength corrosion-resistant bronze alloy bolt and nut, the H40HPS ensures mechanical integrity and durability in demanding environments. The integrated spacer maintains proper conductor separation and alignment, reducing the risk of loosening or misalignment over time. The pressure bar is copper through 40H sizes, transitioning to copper alloy for 350 kcmil and above, ensuring consistent conductivity and mechanical strength across the full range of supported conductors. The H40HPS is tested and listed to UL486C and UL467 standards for grounding and direct burial applications, making it suitable for utility, industrial, and commercial installations where reliability is critical. Its split-bolt design allows for tool-free installation and easy re-entry for maintenance or modifications. The tin-plated finish enhances corrosion resistance, ensuring long-term performance in harsh or outdoor conditions. Ideal for power distribution, transmission, and grounding systems, the H40HPS connector is a trusted solution for electrical contractors, utility companies, and maintenance professionals requiring dependable conductor splicing and termination. Its compatibility with multiple conductor types and sizes eliminates the need for multiple connector types, streamlining inventory and reducing project complexity.
  • Accommodates copper, aluminum, and ACSR conductors from 4/0 to 4 AWG
  • Supports equal main and tap connections, plus minimum tap configurations
  • High-strength corrosion-resistant bronze alloy bolt and nut
  • Integrated spacer maintains conductor separation and alignment
  • Tin-plated finish for enhanced corrosion resistance and durability

Specifications

Finish
Tinned
Material
Aluminum
Standard
UL E9809
Type
Split-Bolt Connector with Spacer
Package Dimensions (L x W x H)
6.75 IN x 5.25 IN x 4.63 IN
Package Dimensions (L x W x H)
17.145 cm x 13.335 cm x 11.7602 cm
Package Weight (Imperial)
0.4800 L
Package Weight (Metric)
0.2180 kg
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-2

2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

PCSB4-3S-12Y

The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
AL 1CNDTR 1HOLE MOUNT 6-350STR TP

ADR35

AL 1CNDTR 1HOLE MOUNT 6-350STR TP
Low Voltage Molded Sleeve for Single Bolt UPC and SCU Series to Prevent Moisture Ingression, Length 5-3/8 inch, no Plug

WB20

Low Voltage Molded Sleeve for Single Bolt UPC and SCU Series to Prevent Moisture Ingression, Length 5-3/8 inch, no Plug
Cross Tap Clamp, Casting of Copper Alloy, Bolts of Silicon Bronze, Clamp for Tee Tap, Cross, Parallel and End to End Connectors, Conductor Range Main 1000-500 and Tap 1000-500. Bolt Length 3.75 inches.

XT34-358

Cross Tap Clamp, Casting of Copper Alloy, Bolts of Silicon Bronze, Clamp for Tee Tap, Cross, Parallel and End to End Connectors, Conductor Range Main 1000-500 and Tap 1000-500. Bolt Length 3.75 inches.
Copper Split Bolt, Wire Size 16 Str - 8 Str/Sol, Hex Design

8SBC-B2-5

Copper Split Bolt, Wire Size 16 Str - 8 Str/Sol, Hex Design
Copper Split Bolt, Wire Size 8 Sol/Str - 4 Str, Hex Design

4SBC-B1-5

Copper Split Bolt, Wire Size 8 Sol/Str - 4 Str, Hex Design
Copper Split Bolt, UL Listed for Wire Size (2) 1/0 - (2) #4 Copper or 1/0 Run and 1/0 - #14 Tap Copper.

10SBC-B1-5

Copper Split Bolt, UL Listed for Wire Size (2) 1/0 - (2) #4 Copper or 1/0 Run and 1/0 - #14 Tap Copper.

Frequently Asked Questions

What conductor types does the H40HPS connector support?

The H40HPS connector is designed for use on Copper, Aluminum, and ACSR conductors.

What is the conductor range for ACSR conductors?

For equal main and tap ACSR conductors, the range is from 4/0 to 4 AWG.

What is the conductor range for Copper and Aluminum conductors?

For equal main and tap connections with Copper and Aluminum conductors, the range is from 4/0 Stranded to 4 Solid.

Can this connector be used for a minimum tap with a maximum main conductor?

Yes, it supports a minimum tap with one maximum main conductor of 4 Solid (Copper and Aluminum).

What is the material and plating of the H40HPS connector?

The connector is made of Copper and Aluminum materials and is Tin Plated.
