Overview

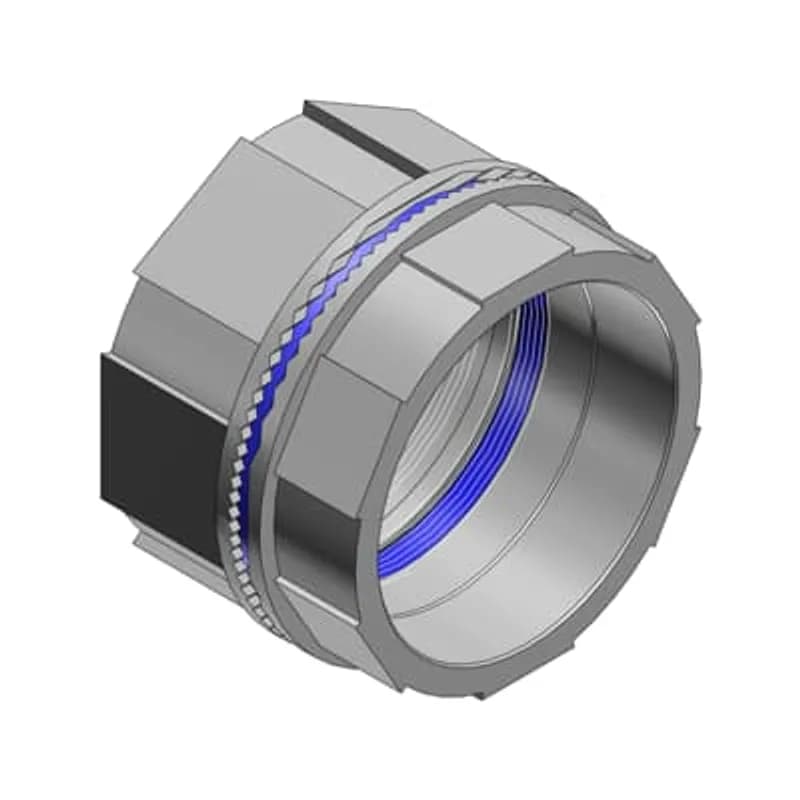

- 1-1/2" aluminum bulkhead fitting for Rigid/IMC conduit
- Insulating thermoplastic throat prevents electrical continuity
- Nitrile (BUNA-N) sealing ring for environmental protection
- Corrosion-resistant aluminum construction for industrial durability
- Designed for wall/panel penetration with secure sealing
Specifications
Application | A Fitting for Connecting a Junction Box to a Conduit System |
Material | Aluminum |
Material Quality | Aluminum |
Outside Diameter | 2-3/4 in |
Size | 1-1/2 Inch |
Special Features | Thermoplastic Insulating Throat with Rating up to 105 Degree Celsius |
Standard | UL E23018, CSA |
Trade Size | 1-1/2 in |
Type | Bulkhead Fitting |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.4500 L |
Package Weight (Metric) | 0.2040 kg |
CPL11/2SA-R
PVC Coated Conduit Coupling, 1-1/2 Inch/41 Metric Coupling Size, 1.91 Inch/48.41 Millimeters Minimum Length of Metal, 5.75 Inch/146.05 Millimeters Total Minimum Length Including Sleeve, Straight Threads, Pressure Sealing Sleeves, Blue Urethane Coating on Interior and Threads, Aluminum, Red
36800
Deluxe Cord Grips Strain Relief, 2-1/2" NPT, Straight Male, Cable Diameter 42.67-45.97mm (1.680-1.810")
H200GRSST
2 Inch 316 Stainless Steel Grounding Hub, Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC ConduitH350GRA-C
3-1/2 Inch Hub with Aluminum, Grounding/Bonding Locknut, Insulated Throat for Threaded Rigid Metal ConduitH600GR-TB
6 Inch Zinc Grounding Hub with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
XJG34-TB
1 Inch XJG Conduit Expansion Coupling with Internal Bonding Jumper, Body Malleable Iron Zinc Plated, Internal Bonding Jumper Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 4 Inch Movement
Frequently Asked Questions
What conduit types are compatible with H150BHDA?
The H150BHDA is designed for use with 1-1/2" Rigid and Intermediate Metal Conduit (IMC).
What material is the sealing ring made of?
The sealing ring is made of Nitrile (BUNA-N) rubber.
What is the fitting material?
The bulkhead fitting is constructed from aluminum.
What size conduit does this fitting accommodate?
This fitting accommodates 1-1/2" conduit.
Does this fitting provide electrical insulation?
Yes, the insulating thermoplastic throat prevents electrical continuity between the conduit and mounting surface.
