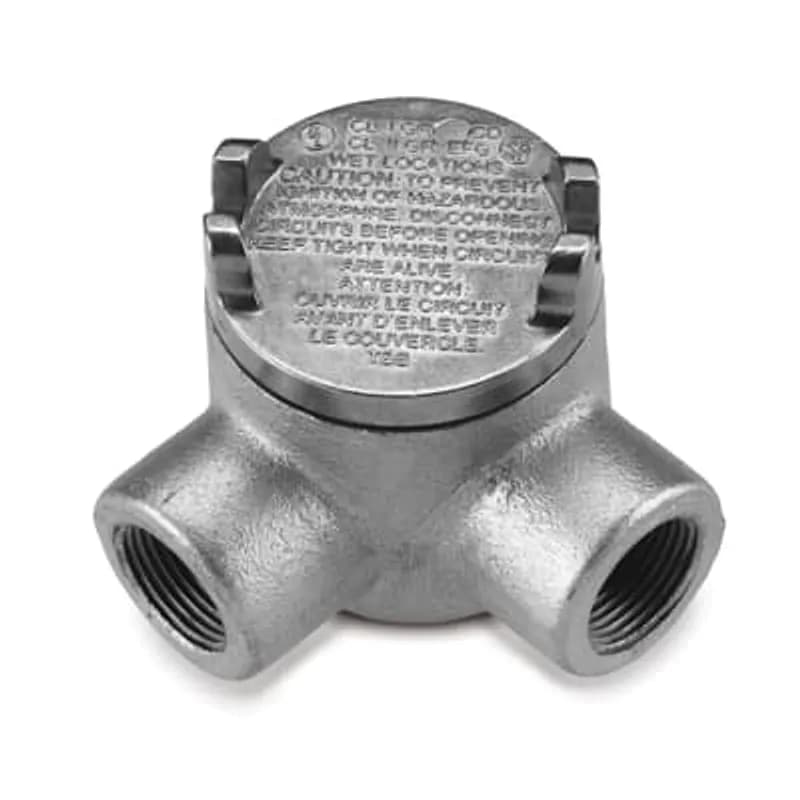

ABB - Installation Products GUAL24-TB - 3/4 Inch GUAL Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 5.3 Cubic Inch

ABB Installation Products GUAL24-TB 3/4 Inch GUAL Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover…

UPC: 786210981710


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GUAL24-TB is a 3/4 inch hazardous location conduit outlet box designed for use in explosive atmospheres. Constructed from ductile iron with a zinc-plated finish for corrosion resistance and a die-cast aluminum cover for durability, this outlet box provides a 5.3 cubic inch internal volume. The zinc-plated ductile iron body ensures long-term protection against harsh industrial environments, while the aluminum cover offers a lightweight yet robust solution for conduit connections. This product is ideal for applications requiring compliance with hazardous location standards, such as chemical processing plants, oil refineries, and manufacturing facilities where explosive gases or dust may be present. The GUAL24-TB is manufactured by ABB Installation Products, a trusted name in industrial electrical solutions.
  • 3/4 inch conduit size for standard hazardous location installations
  • Ductile iron body with zinc plating for corrosion resistance
  • Die-cast aluminum cover for lightweight durability
  • 5.3 cubic inch internal volume for conduit connections
  • Designed for use in explosive atmospheres per hazardous location standards

Specifications

Application
GUA Boxes Can Be Used for Hazardous Location Conduit Runs for The Following: (1) Allows for Mounting of Fixutre Outlets When Used with Appropriate Covers, (2) Provides Easy Access to Wiring, (3) Provides Junction In Conduit for Wire Pulling and Splices, (4) Changes Direction In Rigid Conduit Systems, (5) Attaches Two or More Pieces of Conduit Long Runs, (6) Guards Against Damage to Wires In Rigid Conduit
Finish
Zinc Plated
Hub Size
3/4
Material Quality
Ductile Iron
Special Features
All Hubs Have a Minimum of Five Full Threads and Integral Bushing
Standard
UL E202368, CSA
Type
GUA Conduit Outlet Boxes & Covers-Explosionproof
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.8300 L
Package Weight (Metric)
0.8300 kg
