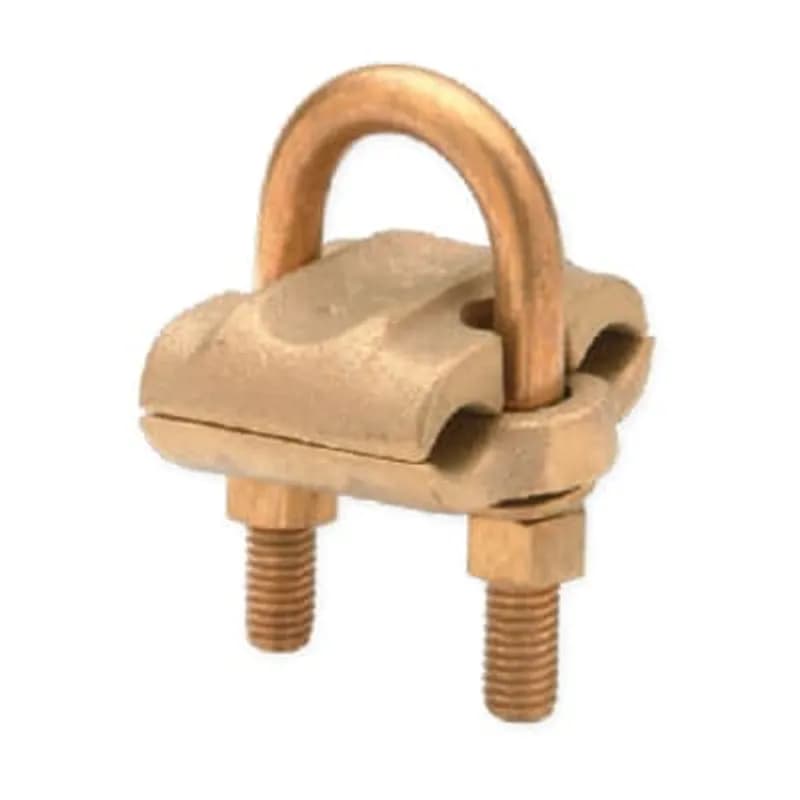

ABB - Installation Products GT5TB - Bronze Ground Clamp Connector - Conductor Range 4 Solid - 2/0 Stranded, Width 2 Inches/51mm, Wire Diameter Range .204-.419 Inches, Accommodates Rod 5/8 or 3/4 IPS 3/8

ABB Installation Products GT5TB Bronze Ground Clamp Connector - Conductor Range 4 Solid - 2/0 Stranded, Width 2…

UPC: 786210123257


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Bronze Ground Clamp Connector, SKU GT5TB, is engineered for reliable grounding connections in industrial applications. Manufactured by ABB - Installation Products, this connector is designed to securely attach grounding conductors to grounding rods. Key specifications include a conductor range accommodating 4 AWG solid wire up to 2/0 AWG stranded wire. The clamp features a width of 2 inches (51mm) and is designed to accommodate wire diameters ranging from .204 inches to .419 inches. For rod compatibility, it accepts standard 5/8 inch or 3/4 inch IPS (Iron Pipe Size) grounding rods. Constructed from bronze, this connector offers excellent corrosion resistance, ensuring long-term performance in various environmental conditions. Its robust design provides a secure mechanical connection, crucial for maintaining effective grounding paths. The GT5TB is an essential component for electrical safety and system integrity, ensuring proper dissipation of fault currents and lightning strikes. This connector is suitable for direct burial applications and is a vital part of any comprehensive grounding system. Its precise engineering ensures a tight grip on both the conductor and the grounding rod, minimizing resistance and maximizing conductivity. The UNSPSC code for this product is 39121613.
  • Accommodates 4 AWG solid to 2/0 AWG stranded conductors
  • Designed for 5/8 inch or 3/4 inch IPS grounding rods
  • Bronze construction for corrosion resistance
  • Width of 2 inches (51mm)
  • Wire diameter range: .204 - .419 inches

Specifications

Conductor Material
Bronze
Conductor Size
4 - 2/0 AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5600 L
Package Weight (Metric)
0.2540 kg
Parallel Bronze Ground Clamp Connector - Conductor Range 4 Solid to 2/0

GH2TB

Parallel Bronze Ground Clamp Connector - Conductor Range 4 Solid to 2/0
Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire

PGCB125200

Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire
Access floor grounding clamp for 1 1/2" round pedestals.

GPQC15-1/0

Access floor grounding clamp for 1 1/2" round pedestals.
Bronze U-Bolt Ground Clamp Connector - Conductor Type IPS 2 inch, Width 3-3/4 Inch, Trough 1-1/2 Inch

GO6TB

Bronze U-Bolt Ground Clamp Connector - Conductor Type IPS 2 inch, Width 3-3/4 Inch, Trough 1-1/2 Inch
Bronze Ground Clamp Connector - IPS 3, Conductor Range 4 Solid - 2/0 Stranded, Wire Diameter Range .204-.419 Inches, Width 5 Inches/127mm

GU20TB

Bronze Ground Clamp Connector - IPS 3, Conductor Range 4 Solid - 2/0 Stranded, Wire Diameter Range .204-.419 Inches, Width 5 Inches/127mm
Bronze Ground Clamp Connector, Ujoversal Parallel or 90 degreeCable Connection Pipe - Conductor Range 4 Solid - 2 Stranded, Wire Diameter .204-.419 Inches, Accommondate 1-1/4 Inch IPS, Width 1-5/8 Inch

GPL21-TB

Bronze Ground Clamp Connector, Ujoversal Parallel or 90 degreeCable Connection Pipe - Conductor Range 4 Solid - 2 Stranded, Wire Diameter .204-.419 Inches, Accommondate 1-1/4 Inch IPS, Width 1-5/8 Inch
Bronze Ground Clamp Conector, Single Tower, 1 Clamp 1 Bolt - Conductor Range 8 Solid - 4 Stranded, Wire Diameter .128-.232 Inches, Width 1-1/4 Inches

GMS1TB

Bronze Ground Clamp Conector, Single Tower, 1 Clamp 1 Bolt - Conductor Range 8 Solid - 4 Stranded, Wire Diameter .128-.232 Inches, Width 1-1/4 Inches
Bronze Ground Clamp Connector - IPS 3, Conductor Range 2/0 Solid - 250kcmil, Wire Diameter Range .365-.575 Inches, Width 5 Inches/127mm

GU21TB

Bronze Ground Clamp Connector - IPS 3, Conductor Range 2/0 Solid - 250kcmil, Wire Diameter Range .365-.575 Inches, Width 5 Inches/127mm

Frequently Asked Questions

What conductor sizes does the ABB GT5TB ground clamp support?

The ABB GT5TB ground clamp supports conductors ranging from 4 AWG solid to 2/0 AWG stranded.

What grounding rod sizes are compatible with the GT5TB clamp?

The GT5TB clamp is compatible with 5/8 inch or 3/4 inch IPS grounding rods.

What is the wire diameter range for the GT5TB clamp?

The GT5TB clamp accommodates wire diameters ranging from .204 inches to .419 inches.

What is the width of the ABB GT5TB ground clamp connector?

The ABB GT5TB ground clamp connector has a width of 2 inches (51mm).

What material is the ABB GT5TB ground clamp made from?

The ABB GT5TB ground clamp is constructed from bronze.
