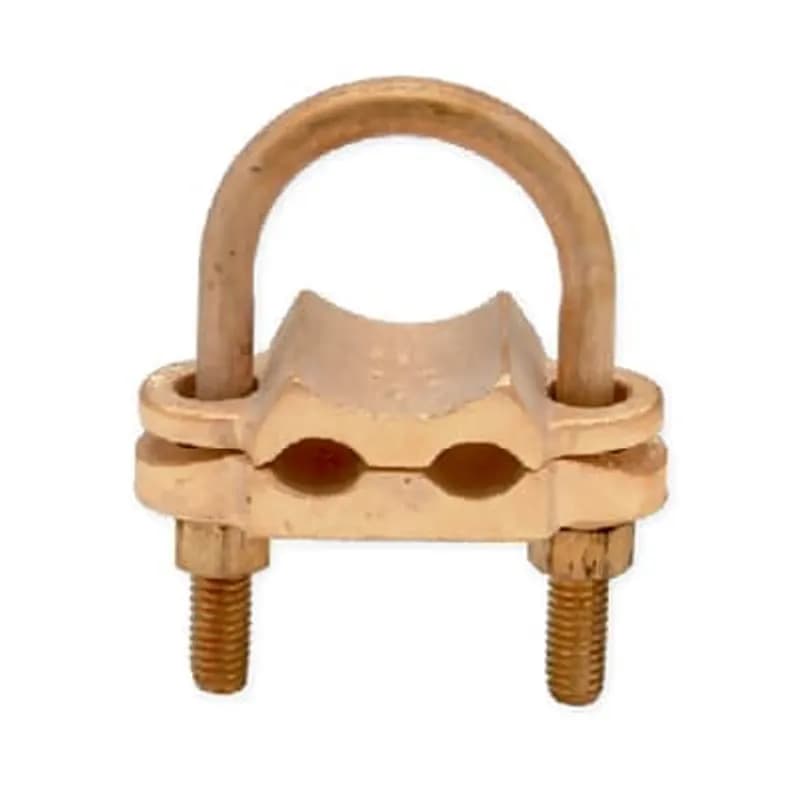

ABB - Installation Products GU20TB - Bronze Ground Clamp Connector - IPS 3, Conductor Range 4 Solid - 2/0 Stranded, Wire Diameter Range .204-.419 Inches, Width 5 Inches/127mm

ABB Installation Products GU20TB Bronze Ground Clamp Connector - IPS 3, Conductor Range 4 Solid - 2/0 Stranded, Wire…

UPC: 786210095172


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GU20TB Bronze Ground Clamp Connector (SKU: GU20TB) from ABB Installation Products is designed for reliable grounding applications. This connector is constructed from durable bronze, ensuring longevity and resistance to environmental factors. It accommodates a conductor range suitable for both solid and stranded wires, specifically handling 4 AWG solid conductors up to 2/0 AWG stranded conductors. The wire diameter range is precisely specified from .204 inches to .419 inches, ensuring a secure fit for a variety of wire gauges. With a substantial width of 5 inches (127mm), the GU20TB provides ample surface area for robust electrical contact and mechanical stability. Its UNSPSC code is 39121613, categorizing it within electrical grounding and bonding equipment. This connector is an essential component for establishing secure and effective ground connections in electrical systems, contributing to safety and system integrity. The material composition and specified dimensions highlight its suitability for industrial and commercial grounding needs where dependable performance is paramount. The GU20TB is a practical and effective solution for connecting ground conductors to grounding electrodes or other grounding system components.
  • Bronze construction for durability and corrosion resistance
  • Accommodates conductor range: 4 AWG Solid to 2/0 AWG Stranded
  • Wire diameter range: .204 - .419 inches
  • Connector width: 5 inches (127mm)
  • Ideal for industrial and commercial grounding applications

Specifications

Conductor Material
Bronze
Conductor Size
4 - 2/0 AWG
Material
Bronze
Size
Width 5 Inches/127mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.6200 L
Package Weight (Metric)
0.7350 kg
Parallel Bronze Ground Clamp Connector - Conductor Range 4 Solid to 2/0

GH2TB

Parallel Bronze Ground Clamp Connector - Conductor Range 4 Solid to 2/0
Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire

PGCB125200

Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire
Access floor grounding clamp for 1 1/2" round pedestals.

GPQC15-1/0

Access floor grounding clamp for 1 1/2" round pedestals.
Bronze Ground Clamp Connector, Ujoversal Parallel or 90 degreeCable Connection Pipe - Conductor Range 4 Solid - 2 Stranded, Wire Diameter .204-.419 Inches, Accommondate 1-1/4 Inch IPS, Width 1-5/8 Inch

GPL21-TB

Bronze Ground Clamp Connector, Ujoversal Parallel or 90 degreeCable Connection Pipe - Conductor Range 4 Solid - 2 Stranded, Wire Diameter .204-.419 Inches, Accommondate 1-1/4 Inch IPS, Width 1-5/8 Inch
Bronze Ground Clamp Conector, Single Tower, 1 Clamp 1 Bolt - Conductor Range 8 Solid - 4 Stranded, Wire Diameter .128-.232 Inches, Width 1-1/4 Inches

GMS1TB

Bronze Ground Clamp Conector, Single Tower, 1 Clamp 1 Bolt - Conductor Range 8 Solid - 4 Stranded, Wire Diameter .128-.232 Inches, Width 1-1/4 Inches
Bronze Ground Clamp Connector - IPS 3, Conductor Range 2/0 Solid - 250kcmil, Wire Diameter Range .365-.575 Inches, Width 5 Inches/127mm

GU21TB

Bronze Ground Clamp Connector - IPS 3, Conductor Range 2/0 Solid - 250kcmil, Wire Diameter Range .365-.575 Inches, Width 5 Inches/127mm
Bronze Ground Clamp Connector - Conductor Range 2/0 Stranded - 250kcmil, Width 2-1/2 Inches/64mm, Wire Diameter Range .365-.575 Inches, Accommodates Rod 5/8 or 3/4 IPS 3/8

GT6TB

Bronze Ground Clamp Connector - Conductor Range 2/0 Stranded - 250kcmil, Width 2-1/2 Inches/64mm, Wire Diameter Range .365-.575 Inches, Accommodates Rod 5/8 or 3/4 IPS 3/8
Copper Clad, Pointed Ground Rod - 3/4 inch x 8 feet

7508

Copper Clad, Pointed Ground Rod - 3/4 inch x 8 feet

Frequently Asked Questions

What conductor sizes does the GU20TB ground clamp support?

The ABB GU20TB ground clamp connector supports conductor sizes from 4 AWG solid to 2/0 AWG stranded.

What is the wire diameter range for this bronze ground clamp?

The GU20TB ground clamp has a wire diameter range of .204 inches to .419 inches.

What is the width of the ABB GU20TB ground clamp connector?

The ABB GU20TB ground clamp connector measures 5 inches (127mm) in width.

What material is the ABB GU20TB ground clamp connector made from?

The ABB GU20TB ground clamp connector is made from bronze.
