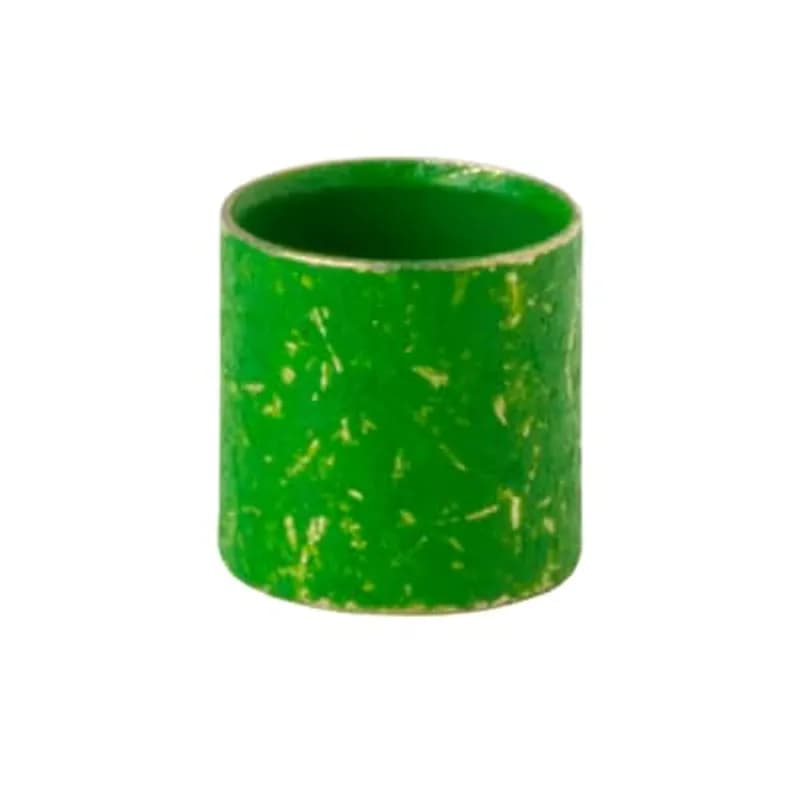

ABB - Installation Products GSC219 - Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .219 Inches/5.56mm, Outer Diameter .250 Inches/6.35mm, Color Green, Soft Bronze, Tin Plated

ABB Installation Products GSC219 Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner…

UPC: 786210813875


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GSC219 is a two-piece outer sleeve connector designed for hexagonal range applications. Manufactured by ABB Installation Products, this connector is constructed from soft bronze with a tin plating, ensuring reliable electrical conductivity and corrosion resistance. Its precise dimensions include a length of 1/4 inch (6.4mm), an inner diameter of .219 inches (5.56mm), and an outer diameter of .250 inches (6.35mm). The distinct green color facilitates easy identification and inventory management within electrical installations. This connector is part of the Shield-Kon Connectors series, specifically an outer sleeve component. The catalog data indicates that the GSB219 model corresponds to a .219 inch inner diameter and a .250 inch outer diameter. The tin plating on the soft bronze material provides excellent electrical contact and protection against environmental factors, making it suitable for various wiring and connection tasks within electrical systems. The two-piece design aids in assembly and maintenance. Key specifications derived from the manufacturer's catalog include: * **Catalog Number:** GSB219 * **Color Code:** Green * **Inner Diameter (ID):** .219 inches (5.56mm) * **Outer Diameter (OD):** .250 inches (6.35mm) * **Length:** 1/4 inch (6.4mm) * **Material:** Soft Bronze, Tin Plated The ABB GSC219 offers functional performance and ease of use for electrical termination and connection points requiring a secure outer sleeve. Its specifications make it a practical choice for industrial electrical systems.
  • Two-piece outer sleeve connector for hexagonal range applications
  • Inner Diameter: .219 inches (5.56mm)
  • Outer Diameter: .250 inches (6.35mm)
  • Length: 1/4 inch (6.4mm)
  • Material: Soft bronze with tin plating for conductivity and corrosion resistance
  • Color: Green for easy identification

Specifications

Color
Green
Material
Soft Bronze
Material
Soft Bronze, Tin Plated
Series
GSC
Size
Length 1/4 Inch/6.4mm, Inner Diameter .219 Inches/5.56mm, Outer Diameter .250 Inches/6.35mm
Size
Length: 1/4 Inch (6.4mm), Inner Diameter: .219 Inches (5.56mm), Outer Diameter: .250 Inches (6.35mm)
Special Features
Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications
Type
Two-Piece Outer Sleeve Connector
Package Dimensions (L x W x H)
3.5 IN x 3 IN x 3 IN
Package Dimensions (L x W x H)
8.89 cm x 7.62 cm x 7.62 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .175 Inches/4.44mm, Outer Diameter .215 Inches/5.46mm, Color Green, Hard Bronze, Nickel Plated

GSB175NP

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .175 Inches/4.44mm, Outer Diameter .215 Inches/5.46mm, Color Green, Hard Bronze, Nickel Plated
Connector Assembly, Receptacle, Wire-to-Board, 4 Position, 2.54 mm [.1 in] Centerline, Crimp, 1 Row, Green, Wire & Cable, ERNI MaxiBridge

384455-E

Connector Assembly, Receptacle, Wire-to-Board, 4 Position, 2.54 mm [.1 in] Centerline, Crimp, 1 Row, Green, Wire & Cable, ERNI MaxiBridge
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .232 Inches/5.90mm, Outer Diameter .263 Inches/6.70mm, Color Orange, Soft Bronze, Tin Plated

GSC232

Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .232 Inches/5.90mm, Outer Diameter .263 Inches/6.70mm, Color Orange, Soft Bronze, Tin Plated
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .219 Inches/5.56mm, Outer Diameter .250 Inches/6.35mm, Color Green, Soft Bronze, Nickel Plated

GSC219NP

Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .219 Inches/5.56mm, Outer Diameter .250 Inches/6.35mm, Color Green, Soft Bronze, Nickel Plated
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .500 Inches/12.70mm, Outer Diameter .550 Inches/13.97mm, Color Green, Soft Bronze, Tin Plated

GSC500

Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .500 Inches/12.70mm, Outer Diameter .550 Inches/13.97mm, Color Green, Soft Bronze, Tin Plated
Two Piece Outer Sleeve Connector for Round Range, Length 15.2mm, Inner Diameter 14.99mm, Outer Diameter 17.02mm, Color Red, Copper Alloy

GSC590

Two Piece Outer Sleeve Connector for Round Range, Length 15.2mm, Inner Diameter 14.99mm, Outer Diameter 17.02mm, Color Red, Copper Alloy
Two Piece Outer Sleeve Connector for Round Range, Length 15.2mm, Inner Diameter 18.03mm, Outer Diameter 20.07mm, Color Blue, Copper Alloy

GSC710

Two Piece Outer Sleeve Connector for Round Range, Length 15.2mm, Inner Diameter 18.03mm, Outer Diameter 20.07mm, Color Blue, Copper Alloy
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 6.4mm, Inner Diameter 11.68mm, Outer Diameter 12.95mm, Color Silver, Soft Bronze, Tin Plated

GSC460

Two Piece Outer Sleeve Connector for Hexagonal Range, Length 6.4mm, Inner Diameter 11.68mm, Outer Diameter 12.95mm, Color Silver, Soft Bronze, Tin Plated

Frequently Asked Questions

What is the color code for the GSC219 connector?

The color code for the GSC219 connector is Green.

What interchangeable dies are used with WT440 for GSC219?

For the GSC219 connector, the interchangeable dies used with WT440 are 4408.

Which hand tool is recommended for GSC219?

The recommended hand tool for the GSC219 connector is WT408.

What is the maximum temperature for tin plated parts?

Tin plated parts, such as the GSC219, should not be exposed to temperatures above 150 C.

What is the finish on GSC219 connectors?

The connectors have an electro tin plate finish per MIL-T-10727A Type 1, equivalent to ASTM B545 Class A.

What material is used for GSC219 connectors?

GSC219 connectors are made from Commercial Bronze per ASTM B36 (UNS C22000).

What are the dimensions of the GSC219 connector?

The GSC219 connector has an approximate inner diameter (I.D.) of .219 inches and an outer diameter (O.D.) of .250 inches.

What is the finish on GSC219 connectors?

The connectors have an electro tin plate finish per MIL-T-10727A Type 1, equivalent to ASTM B545 Class A.

What is the maximum temperature for tin plated parts?

Tin plated parts, such as the GSC219, should not be exposed to temperatures above 150 C.

What is the color code for the GSC219 connector?

The color code for the GSC219 connector is Green.
