ABB - Installation Products KN14-14R-M - Insulated Nylon Ring Terminal for Wire Range 16-14 Stud Size 1/4, Blue

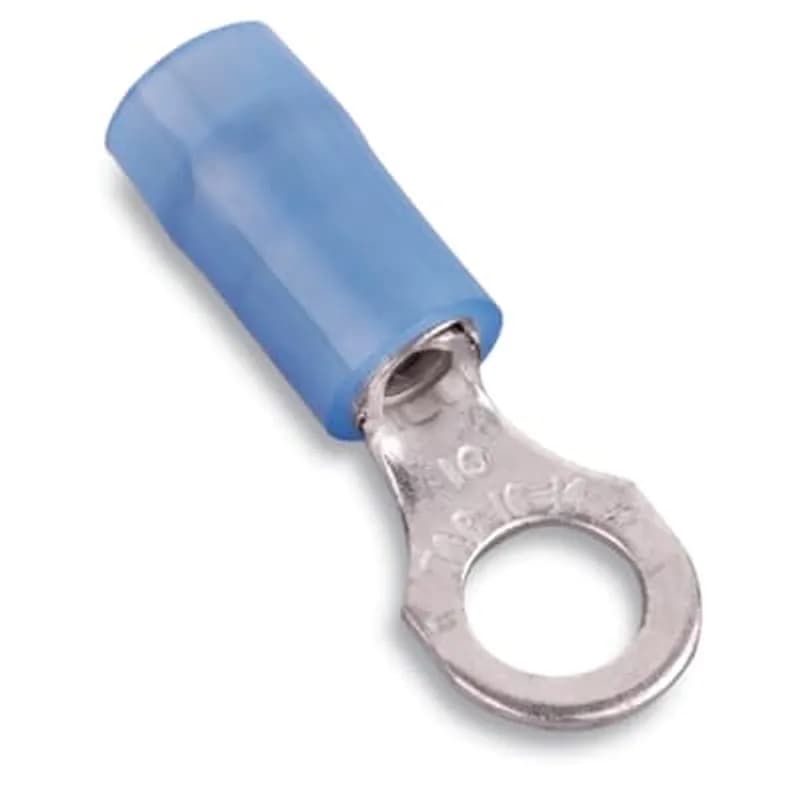

ABB Installation Products KN14-14R-M Insulated Nylon Ring Terminal for Wire Range 16-14 Stud Size 1/4, Blue

UPC: 786210102177


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Insulated Nylon Ring Terminal, SKU KN14-14R-M, is designed for reliable electrical connections in the 16-14 AWG wire range. Featuring a 1/4" stud size, this blue terminal provides secure and insulated termination for electrical wiring. The nylon insulation offers protection against electrical shorts and environmental factors, ensuring the integrity of your connections. Ideal for general electrical installations, control panels, and equipment wiring where a 1/4" stud connection is required. The color-coding (blue) typically indicates a specific wire gauge range, aiding in quick identification and proper installation. ABB's commitment to quality in their Installation Products ensures dependable performance for your electrical projects. This terminal is manufactured to meet industry standards for electrical connectors, providing a safe and efficient solution for connecting wires to studs or screw terminals. Its construction is optimized for ease of crimping, facilitating efficient assembly processes. The KN14-14R-M is a practical choice for electricians and maintenance professionals seeking durable and clearly identifiable electrical connection hardware. Utilize this terminal for applications requiring secure, insulated connections within the specified wire gauge and stud size parameters.
  • Manufacturer: ABB - Installation Products
  • SKU: KN14-14R-M
  • Wire Range: 16-14 AWG
  • Stud Size: 1/4"
  • Insulation Material: Nylon
  • Color: Blue

Specifications

Color
Blue
Connection Type
Ring Terminal
Material
Nylon
Material
Copper
Series
KN14
Size
1/4
Special Features
Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations
Standard
UL E9809
Type
Nylon Insulated Ring Terminal
Voltage Rating
600 V
Wire Size
16-14 AWG
Package Dimensions (L x W x H)
7 IN x 5 IN x 3.25 IN
Package Dimensions (L x W x H)
17.78 cm x 12.7 cm x 8.255 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
