UPC: 786210812885
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview

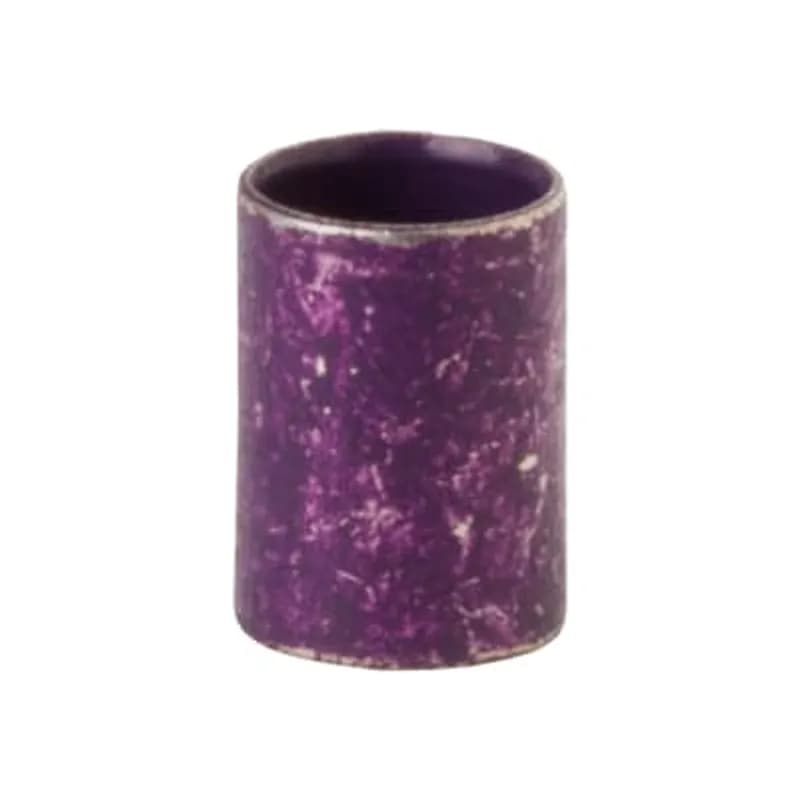

- Two-piece inner sleeve connector for hexagonal range
- Constructed from hard bronze with tin plating
- Color-coded purple for easy identification
- Precise dimensions: 5/16" Length, .096" Inner Diameter, .119" Outer Diameter
- Manufactured by ABB Installation Products (SKU: GSB096)
Specifications
Color | Purple |
Material | Hard Bronze |
Material | Hard Bronze, Tin Plated |
Series | GSB |
Size | Length 5/16 Inch/7.9mm, Inner Diameter .096 Inches/2.44mm, Outer Diameter .119 Inches/3.02mm |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Inner Sleeve Connector |
Package Dimensions (L x W x H) | 2.09 IN x 1.1 IN x 2.9 IN |
Package Dimensions (L x W x H) | 5.3086 cm x 2.794 cm x 7.366 cm |
Package Weight (Imperial) | 0.0100 L |
Package Weight (Metric) | 0.0050 kg |
GSC149
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .149 Inches/3.78mm, Outer Diameter .179 Inches/4.54mm, Color Purple, Soft Bronze, Tin Plated
GSB1040
Two Piece Inner Sleeve Connector for Round Range, Length 11.2mm, Inner Diameter 26.42mm, Outer Diameter 28.45mm, Color Pink, Copper Alloy
GSB090
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .090 Inches/2.20mm, Outer Diameter .113 Inches/2.90mm, Color Orange, Hard Bronze, Tin Plated
GSB124
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .124 Inches/3.14mm, Outer Diameter .145 Inches/3.68mm, Color Green, Hard Bronze, Tin Plated
GSB096NP
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .096 Inches/2.44mm, Outer Diameter .119 Inches/3.02mm, Color Purple, Hard Bronze, Nickel PlatedGSB124NP
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .124 Inches/3.14mm, Outer Diameter .145 Inches/3.68mm, Color Green, Hard Bronze, Nickel Plated
GSB124 X
Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .124 Inches/3.14mm, Outer Diameter .145 Inches/3.68mm, Color Green, Hard Bronze, Tin Plated
GSB128
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Tin PlatedFrequently Asked Questions
What is the maximum temperature for tin plated GSB096 parts?
Tin plated parts, like GSB096, should not be exposed to temperatures above 150 C.
What is the finish of the GSB096 connector?
GSB096 has an Electro Tin Plate finish per MIL-T-10727A Type 1, equivalent to ASTM B545 Class A.
What material is the GSB096 connector made from?
GSB096 is made from Commercial Bronze per ASTM B36 (UNS C22000) or ASTM B140 Alloy #B.
What is the color code for GSB096?
The color code for the GSB096 connector is PURPLE.
What are the dimensions of the GSB096 connector?
The GSB096 connector has an I.D. of .096 in and an O.D. of .119 in. These dimensions are approximate and for reference only.
What type of connector is GSB096?
GSB096 is a SHIELD-KON INNER SLEEVE connector.
What type of connector is GSB096?
GSB096 is a SHIELD-KON INNER SLEEVE connector.
What are the dimensions of the GSB096 connector?
The GSB096 connector has an I.D. of .096 in and an O.D. of .119 in. These dimensions are approximate and for reference only.
What is the color code for GSB096?
The color code for the GSB096 connector is PURPLE.
What material is the GSB096 connector made from?
GSB096 is made from Commercial Bronze per ASTM B36 (UNS C22000) or ASTM B140 Alloy #B.
