ABB - Installation Products GSB124 - Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .124 Inches/3.14mm, Outer Diameter .145 Inches/3.68mm, Color Green, Hard Bronze, Tin Plated
ABB - Installation Products

GSB124

UPC: 786210812953

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Overview

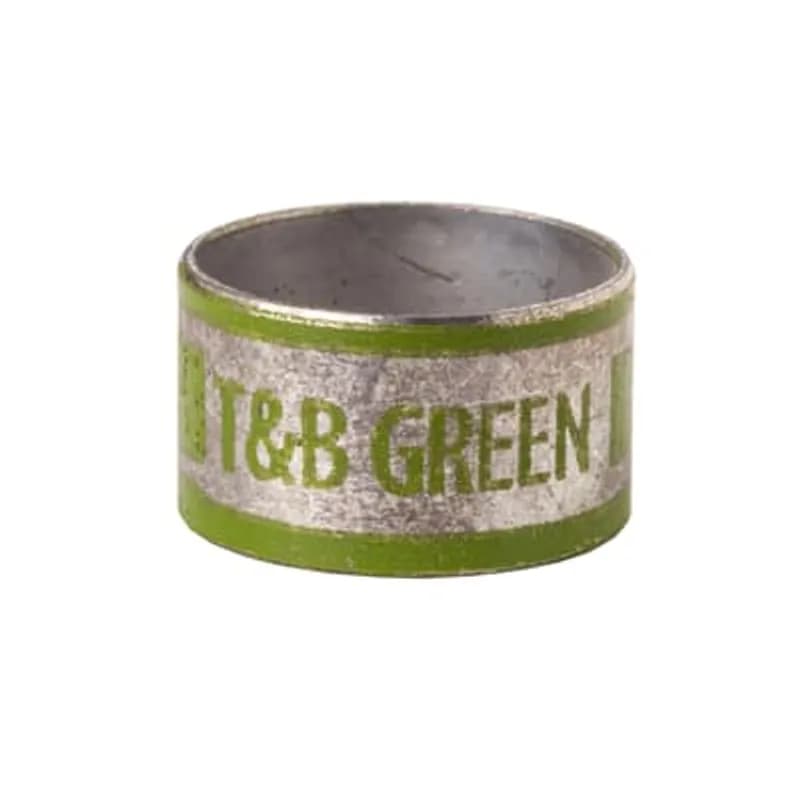

The ABB Installation Products GSB124 is a two-piece inner sleeve connector specifically engineered for hexagonal range applications. This connector is meticulously crafted from hard bronze, a material chosen for its inherent strength and resistance to deformation, ensuring robust performance in demanding environments. Further enhancing its durability and electrical properties, the GSB124 features a tin-plated finish. This plating not only provides superior corrosion resistance, vital for maintaining long-term connection integrity, but also contributes to improved electrical conductivity, ensuring efficient signal transfer. The precise dimensions of the GSB124 are critical for its intended use. It measures a length of 5/16 inches, equivalent to 7.9mm, and possesses an inner diameter of .124 inches, which translates to 3.14mm. The outer diameter is precisely .145 inches, or 3.68mm. These exact measurements are designed to facilitate a secure and reliable connection within the specified hexagonal range. A distinctive green color is applied to the GSB124, serving as a clear visual indicator. This color coding is invaluable for efficient identification and organization within complex electrical installations, allowing for quick and accurate component selection. As part of the GSB series from ABB Installation Products, this connector is designed for seamless compatibility with other components within that established product line, promoting a cohesive and integrated electrical system. The combination of its hard bronze construction, tin plating, and precise dimensions makes the GSB124 an ideal solution for applications demanding secure, efficient, and long-lasting joining of hexagonal components, facilitating robust and reliable electrical connections. Its specific sizing is tailored for a defined range of wire gauges and terminal types, ensuring optimal performance. Manufacturer: ABB - Installation Products. SKU: GSB124. UNSPSC Code: 39121432.
  • Two-piece inner sleeve connector for hexagonal range
  • Constructed from hard bronze with a tin-plated finish
  • Dimensions: 5/16" (7.9mm) Length, .124" (3.14mm) Inner Diameter, .145" (3.68mm) Outer Diameter
  • Distinct green color for easy identification
  • Part of the ABB GSB series

Specifications

Color
Green
Material
Hard Bronze
Special Features
Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications
Type
Two-Piece Inner Sleeve Connector
Package Dimensions (L x W x H)
3.3 IN x 2.8 IN x 2.3 IN
Package Dimensions (L x W x H)
8.382 cm x 7.112 cm x 5.842 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .124 Inches/3.14mm, Outer Diameter .145 Inches/3.68mm, Color Green, Hard Bronze, Nickel Plated

GSB124NP

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .124 Inches/3.14mm, Outer Diameter .145 Inches/3.68mm, Color Green, Hard Bronze, Nickel Plated
Connector Assembly, Receptacle, Wire-to-Board, 4 Position, 2.54 mm [.1 in] Centerline, Crimp, 1 Row, Green, Wire & Cable, ERNI MaxiBridge

384455-E

Connector Assembly, Receptacle, Wire-to-Board, 4 Position, 2.54 mm [.1 in] Centerline, Crimp, 1 Row, Green, Wire & Cable, ERNI MaxiBridge
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .096 Inches/2.44mm, Outer Diameter .119 Inches/3.02mm, Color Purple, Hard Bronze, Nickel Plated

GSB096NP

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .096 Inches/2.44mm, Outer Diameter .119 Inches/3.02mm, Color Purple, Hard Bronze, Nickel Plated
Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .124 Inches/3.14mm, Outer Diameter .145 Inches/3.68mm, Color Green, Hard Bronze, Tin Plated

GSB124 X

Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .124 Inches/3.14mm, Outer Diameter .145 Inches/3.68mm, Color Green, Hard Bronze, Tin Plated
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Tin Plated

GSB128

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Tin Plated
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Nickel Plated

GSB128NP

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Nickel Plated
Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Tin Plated

GSB128X

Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Tin Plated
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .146 Inches/3.78mm, Outer Diameter .179 Inches/4.54mm, Color Blue, Hard Bronze, Tin Plated

GSB149

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .146 Inches/3.78mm, Outer Diameter .179 Inches/4.54mm, Color Blue, Hard Bronze, Tin Plated
