ABB - Installation Products GS1563 - Crimp Die (Interchangeable) for Shield-Kon 13640 Hydraulic Head, for GSC 1563 Connectors
ABB - Installation Products

GS1563

UPC: 786210865713

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

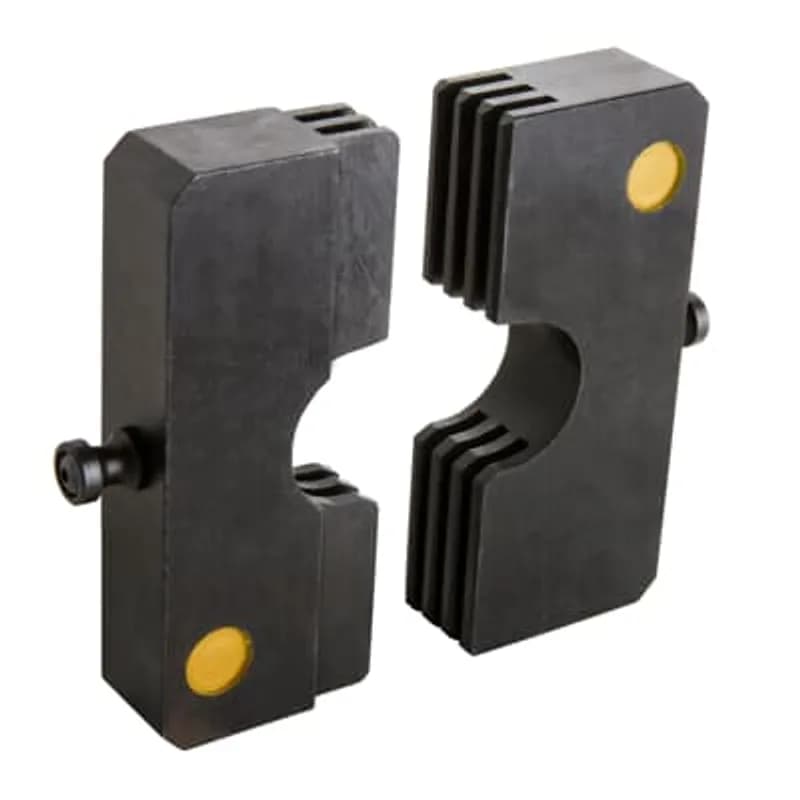

The ABB GS1563 is an interchangeable Crimp Die specifically designed for use with the Shield-Kon 13640 Hydraulic Head. This component is essential for ensuring precise and reliable crimping operations when working with GSC 1563 connectors. Manufactured by ABB - Installation Products, this die is engineered to deliver consistent results in industrial electrical installations. Its interchangeable nature allows for flexibility and efficiency in tool setup, reducing downtime and the need for multiple specialized heads. The GS1563 die facilitates the secure termination of conductors, a critical step in building robust and safe electrical systems. When paired with the Shield-Kon 13640 Hydraulic Head, it provides the necessary force and accuracy for proper connector seating, which is vital for maintaining signal integrity and preventing electrical failures. This product is a key accessory for professionals involved in panel building, wire harness manufacturing, and other applications requiring high-quality connector termination. The UNSPSC code for this product is 27112820, categorizing it within the electrical connectors and accessories segment. Ensure proper compatibility with your Shield-Kon 13640 Hydraulic Head and GSC 1563 connectors for optimal performance and longevity of your electrical connections.
  • Interchangeable Crimp Die for Shield-Kon 13640 Hydraulic Head
  • Designed for GSC 1563 Connectors
  • Ensures precise and reliable crimping
  • Manufactured by ABB - Installation Products
  • Facilitates secure conductor termination

Specifications

Color
Pink
Material
Black Oxide Finish;Steel Alloy
Special Features
Interchangeable steel die for 13640 hydraulic head. Quickly interchangeable. Circular crimp range
Type
Die
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.6900 L
Package Weight (Metric)
0.7670 kg
U-Type Compression Die - Pink 500 MCM Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD20

U-Type Compression Die - Pink 500 MCM Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
12 Ton Press Installing Die - Use with Catalog Number 13400, Die Code 99H, Copper Code 700 kcmil, AL/CU 500 kcmil, Color Code Pink

11748

12 Ton Press Installing Die - Use with Catalog Number 13400, Die Code 99H, Copper Code 700 kcmil, AL/CU 500 kcmil, Color Code Pink
Crimp Die (Interchangeable) for Shield-Kon 13640 Hydraulic Head, for GSC 710 Connectors

GS710

Crimp Die (Interchangeable) for Shield-Kon 13640 Hydraulic Head, for GSC 710 Connectors
12 Ton Hex Die for Non-Insulated Terminal to fit 13642M and 13400 - Tubular Term, Terminal Size M, Wire Size 250 kcmil, Die Code 62

11771

12 Ton Hex Die for Non-Insulated Terminal to fit 13642M and 13400 - Tubular Term, Terminal Size M, Wire Size 250 kcmil, Die Code 62
12 Ton Hex Die for Non-Insulated Terminal to fit 13642M - Terminal Size M, Wire 4/0 AN, Military Listed

11789M

12 Ton Hex Die for Non-Insulated Terminal to fit 13642M - Terminal Size M, Wire 4/0 AN, Military Listed
Installation Die for Non-Insulated Code and Aircraft Terminal Nest Stationary Die - Term Size F (Brazed), G

11806

Installation Die for Non-Insulated Code and Aircraft Terminal Nest Stationary Die - Term Size F (Brazed), G
Installation Die for Nylon-Insulated Terminal Die Set - Terminal Size RJ

11826

Installation Die for Nylon-Insulated Terminal Die Set - Terminal Size RJ
Installation Die for Nylon-Insulated Terminal Die Set - Terminal Size RM

11829

Installation Die for Nylon-Insulated Terminal Die Set - Terminal Size RM
